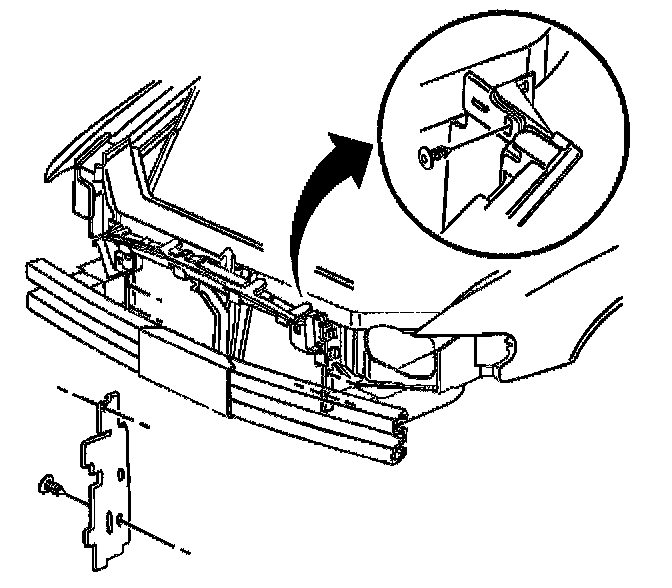

Radiator Air Baffle and Deflector Replacement - Side
Removal Procedure





1. Remove the right and left side air baffle push-in retainers.
2. Remove the right and left side air baffles.

Installation Procedure





1. Install the right and left side air baffles to the vehicle.
2. Install the right and left side air baffle push-in retainers.
