Instrument Panel Cluster (IPC) - Lamp Replacement

Instrument Cluster Lamp Replacement

Removal Procedure

1. Remove the instrument panel cluster.

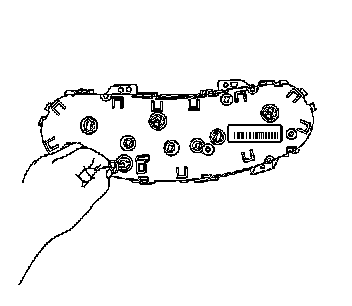

2. Disconnect the required lamp from the cluster turning counterclockwise.




3. Remove the lamp from the cluster

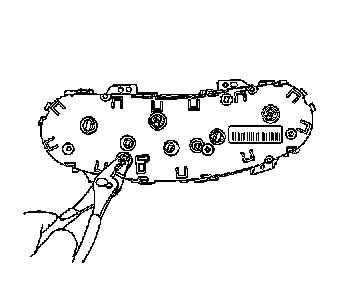

4. Remove the bulb from the lamp socket, by pulling out.



Installation Procedure





1. Install the bulb to the lamp socket pressing into place until fully seated.




2. Install the required lamp to the cluster.




3. Connect the required lamp to the cluster turning clockwise.
4. Install the instrument panel cluster. Refer to Instrument Panel.
