Armrest Replacement - Rear Seat (Non-Folding)

ARMREST REPLACEMENT - REAR SEAT (NON-FOLDING)

REMOVAL PROCEDURE

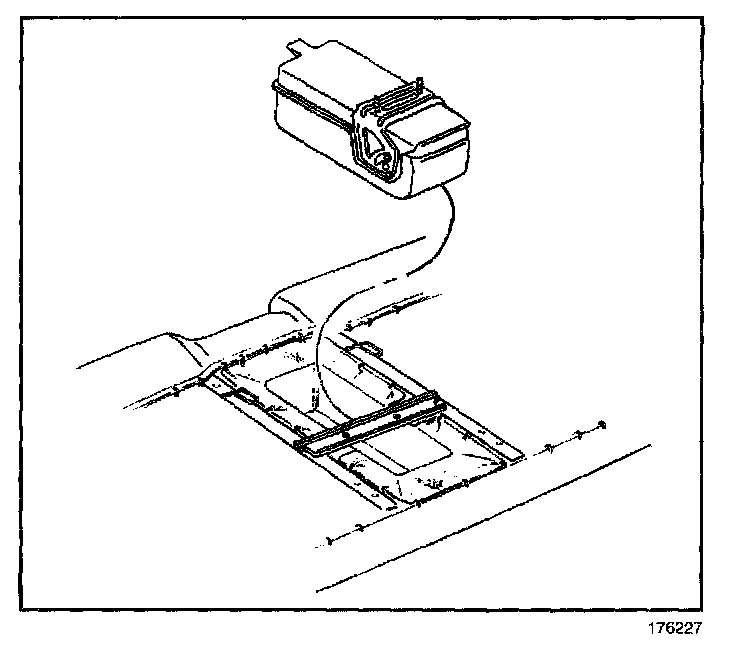

1. Remove the fixed seat back with armrest.

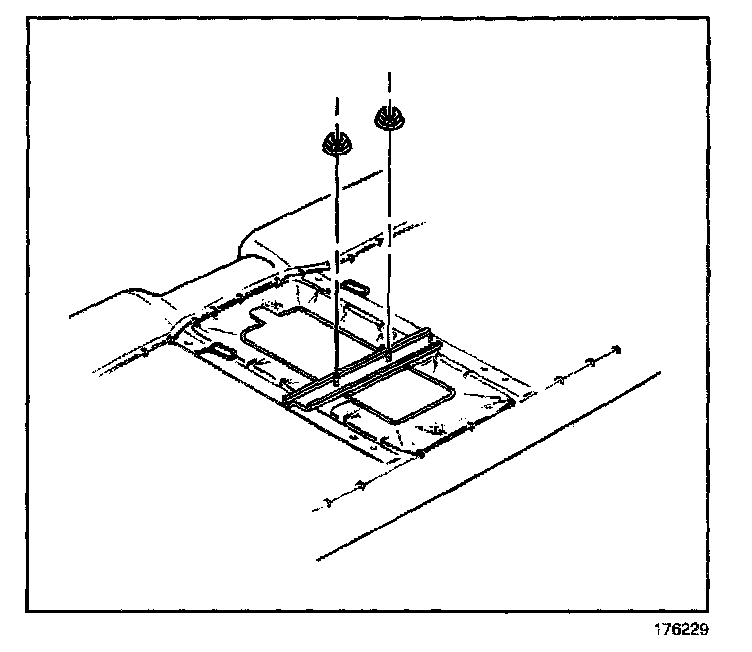

2. Remove the seat back armrest nuts.




3. Remove the seat back armrest from the seat back.

INSTALLATION PROCEDURE




1. Install the seat back armrest to the seat back.

NOTE: Refer to Fastener Notice in Service Precautions.




2. Install the seat back armrest nuts.

Tighten
Tighten the seat back armrest nuts to 3 N.m (27 lb in).

3. Install the fixed seat back with armrest.
