C106
C106

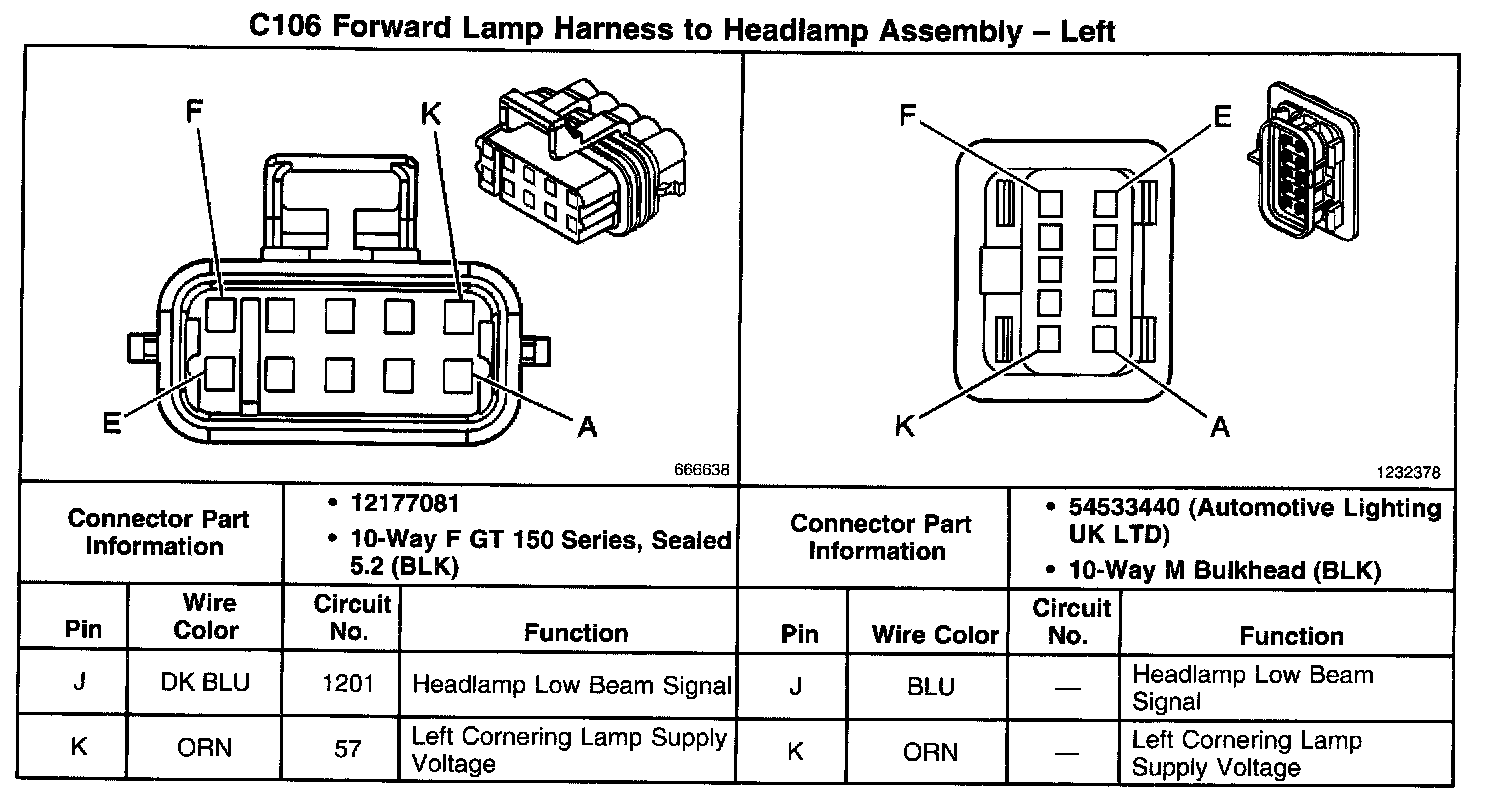

C106 Forward Lamp Harness To Headlamp Assembly - Left Part 1:
C106 Forward Lamp Harness To Headlamp Assembly - Left Part 2:
