10. Exhaust Manifold Removal - Left

Exhaust Manifold Removal - Left





1. Remove the spark plug wires.
2. Remove the spark plugs.

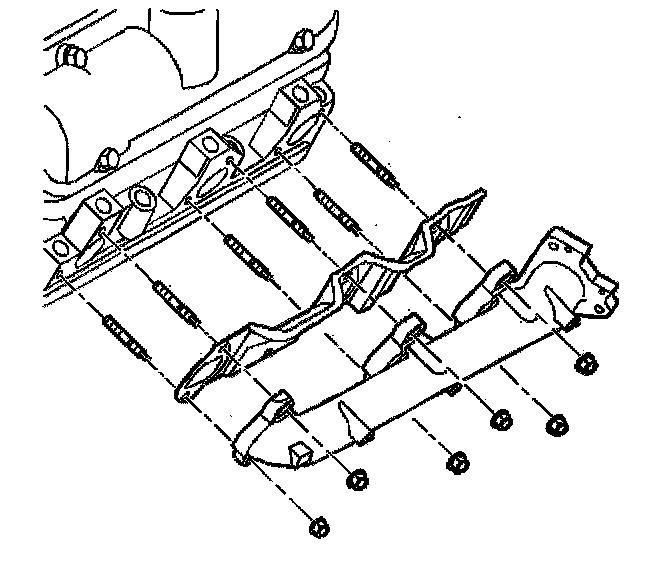

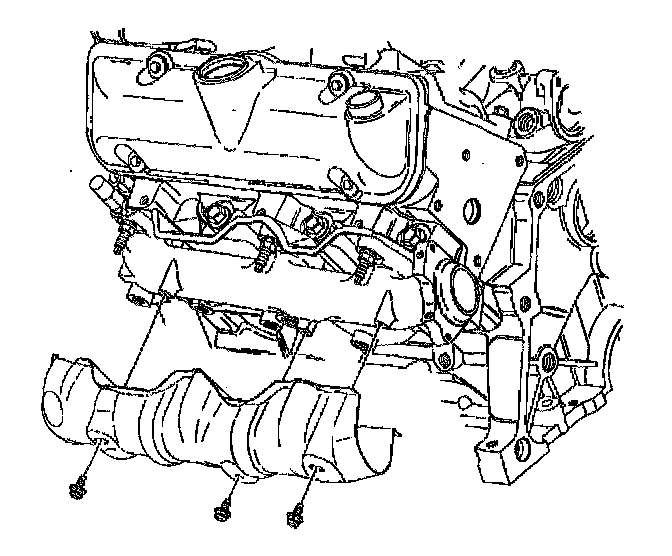

3. Remove the exhaust manifold heat shield bolts.
4. Remove the exhaust manifold heat shield.





5. Remove the exhaust manifold nuts.
6. Remove the exhaust manifold.
7. Remove the exhaust manifold gasket.
8. Remove the exhaust studs, if required.
