Home
>>
Buick
>>
2004
>>
LeSabre V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Shift Interlock Solenoid
Shift Interlock Solenoid

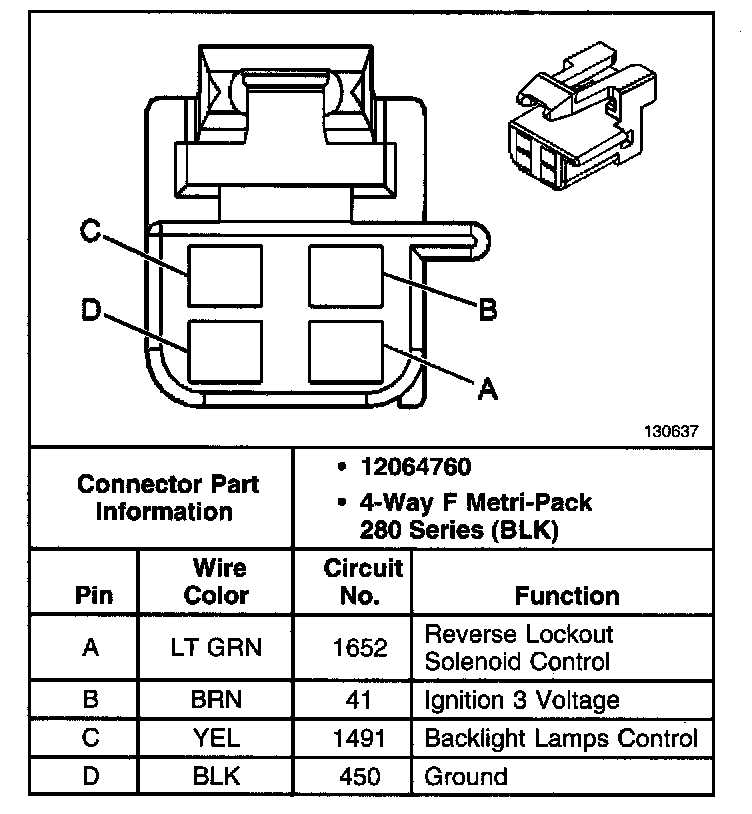

Shift Control Assembly C1:

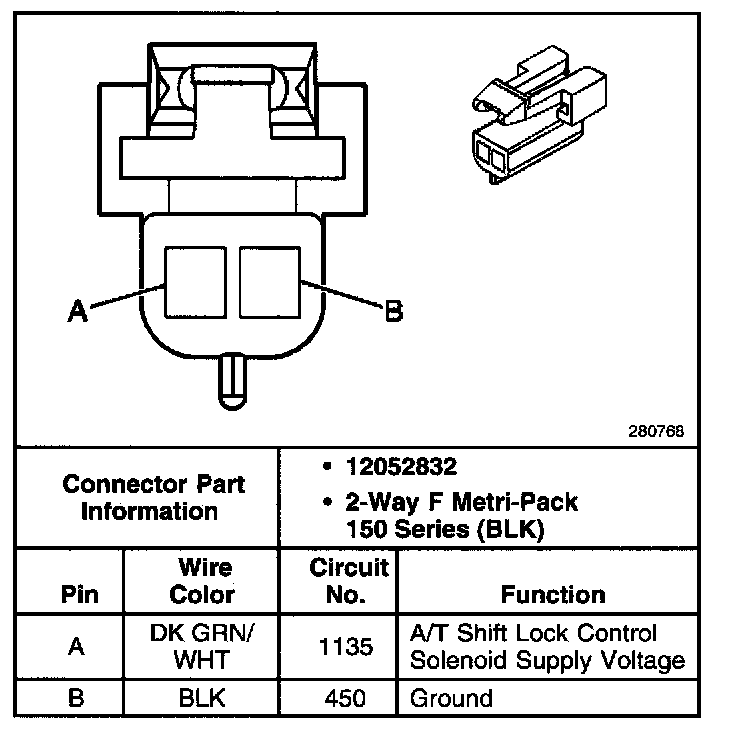

Shift Control Assembly C2:
