Home
>>
Buick
>>
2004
>>
LeSabre V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Brake System
>>
Steering Wheel Position Sensor
Steering Wheel Position Sensor

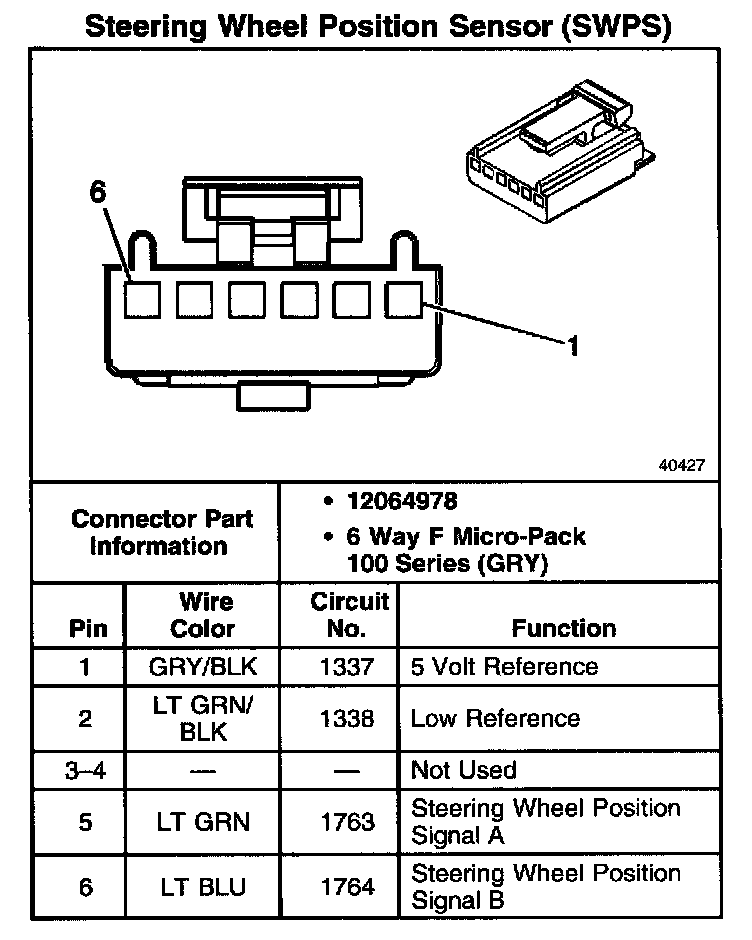

Steering Wheel Position Sensor (SWPS) Connector View:
