Tail Lamp

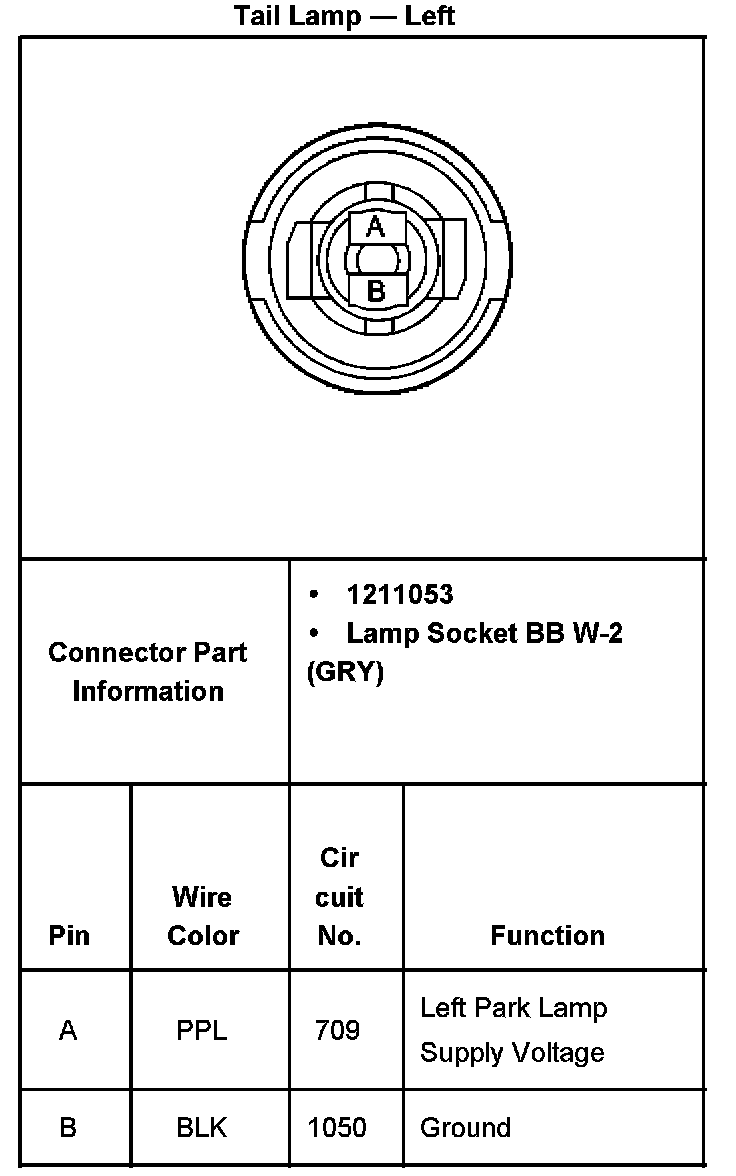

Tail Lamp - Left:

Tail/Stop/Turn Lamp - Left:

Tail Lamp - Right:

Tail/Stop/Turn Lamp - Right:
