Body Control Systems





Body Control System Schematics

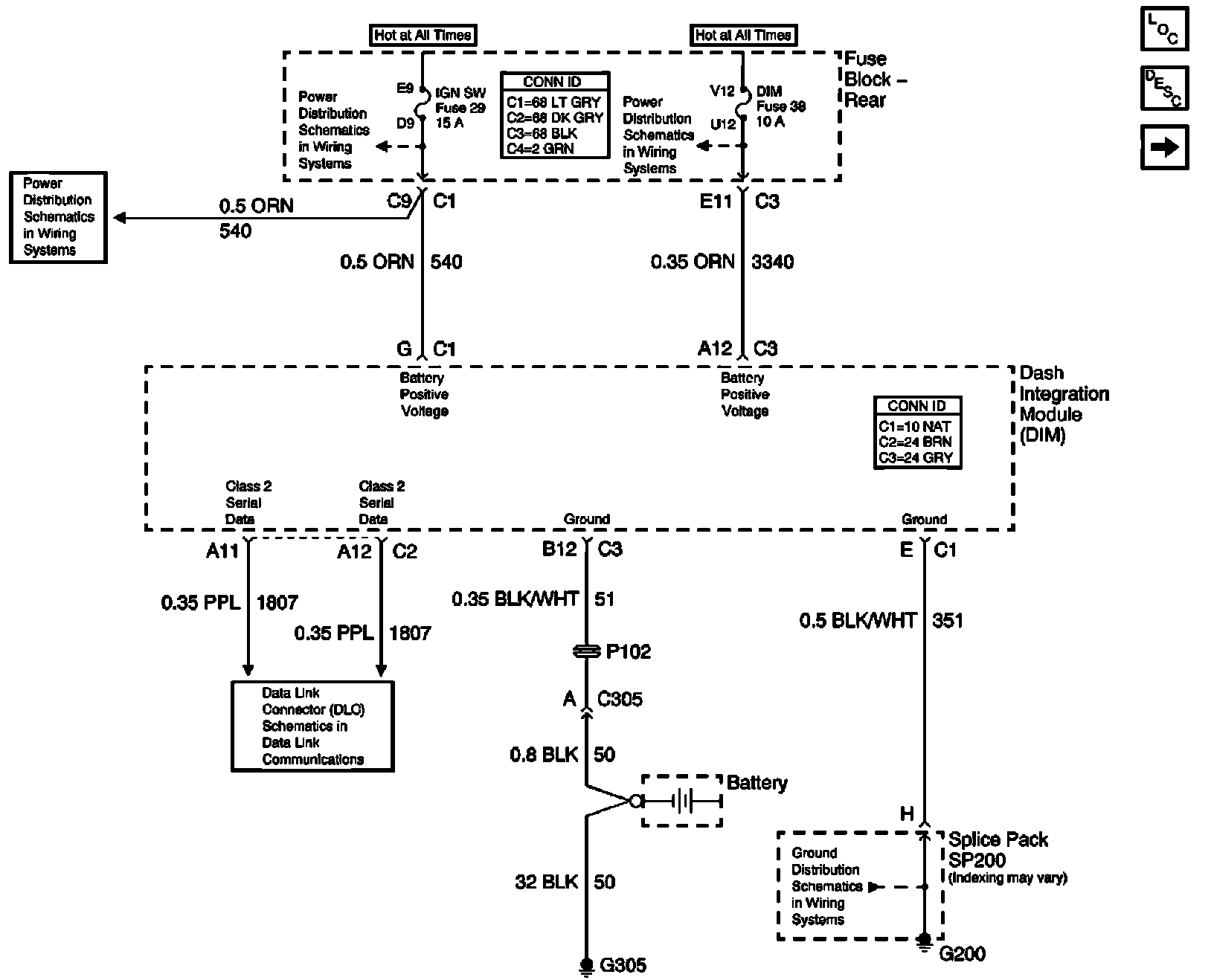

DIM Power and Grounds

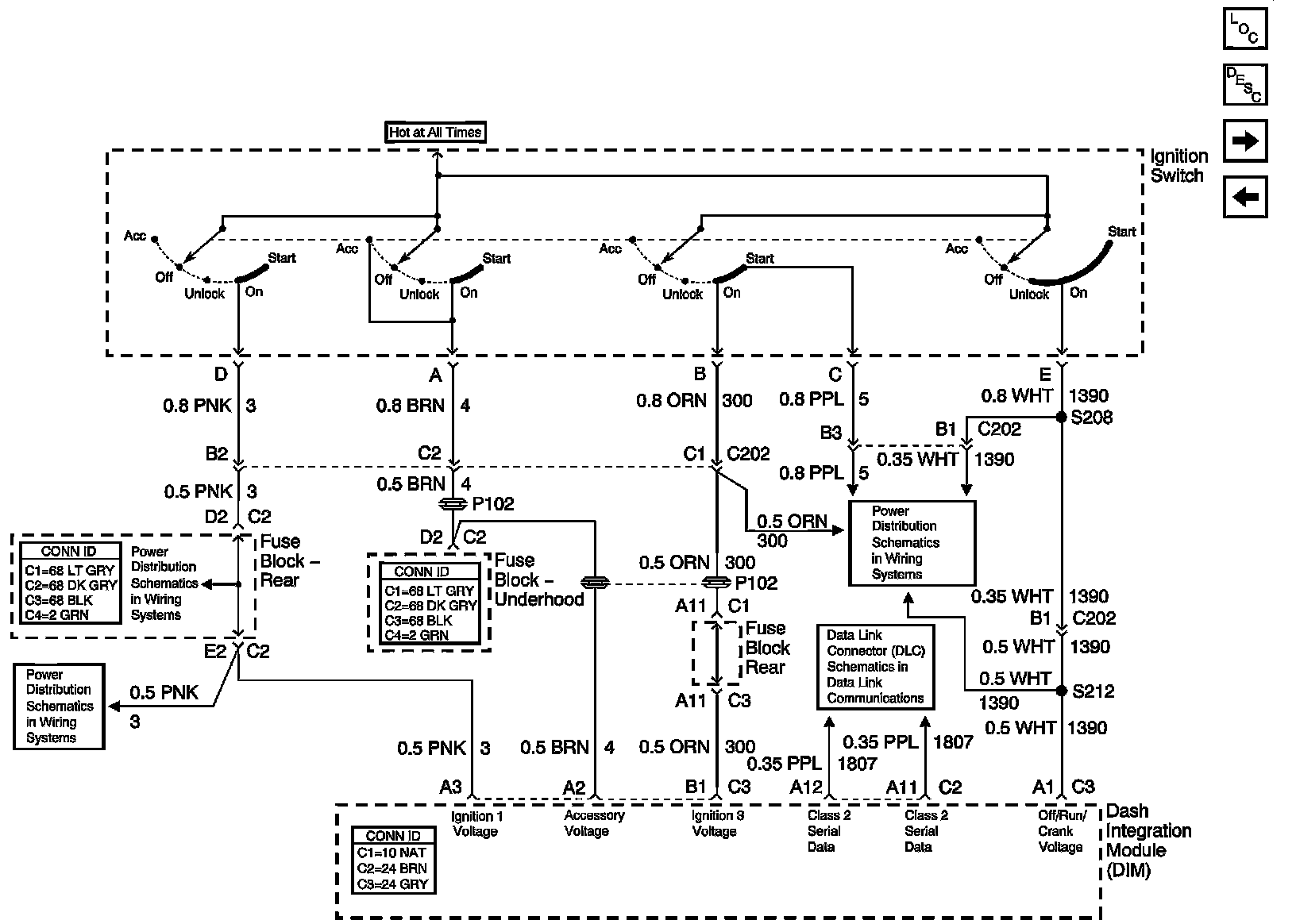

DIM Ignition Inputs

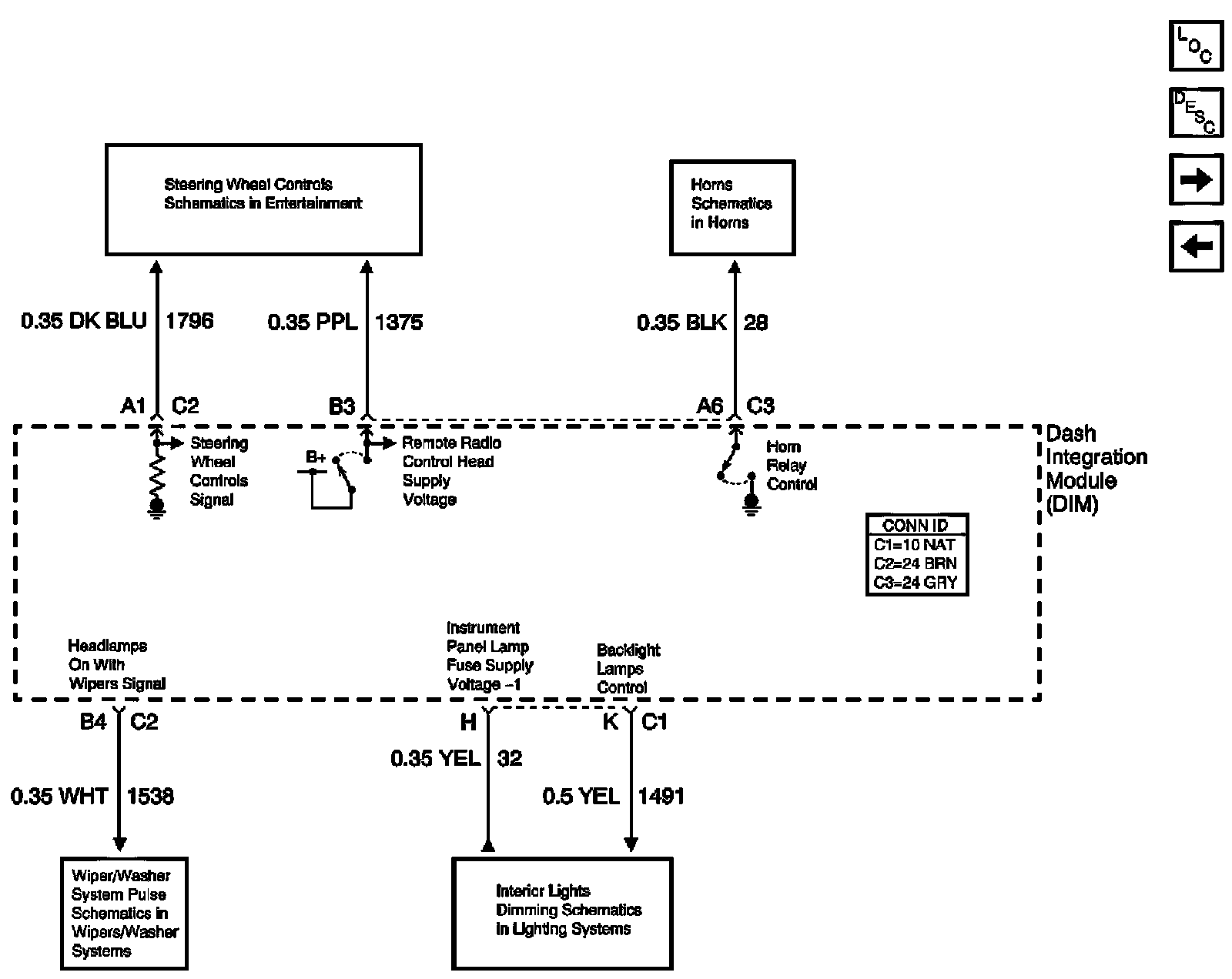

DIM Input/Output (1 of 2)






DIM Input/Output (2 of 2)

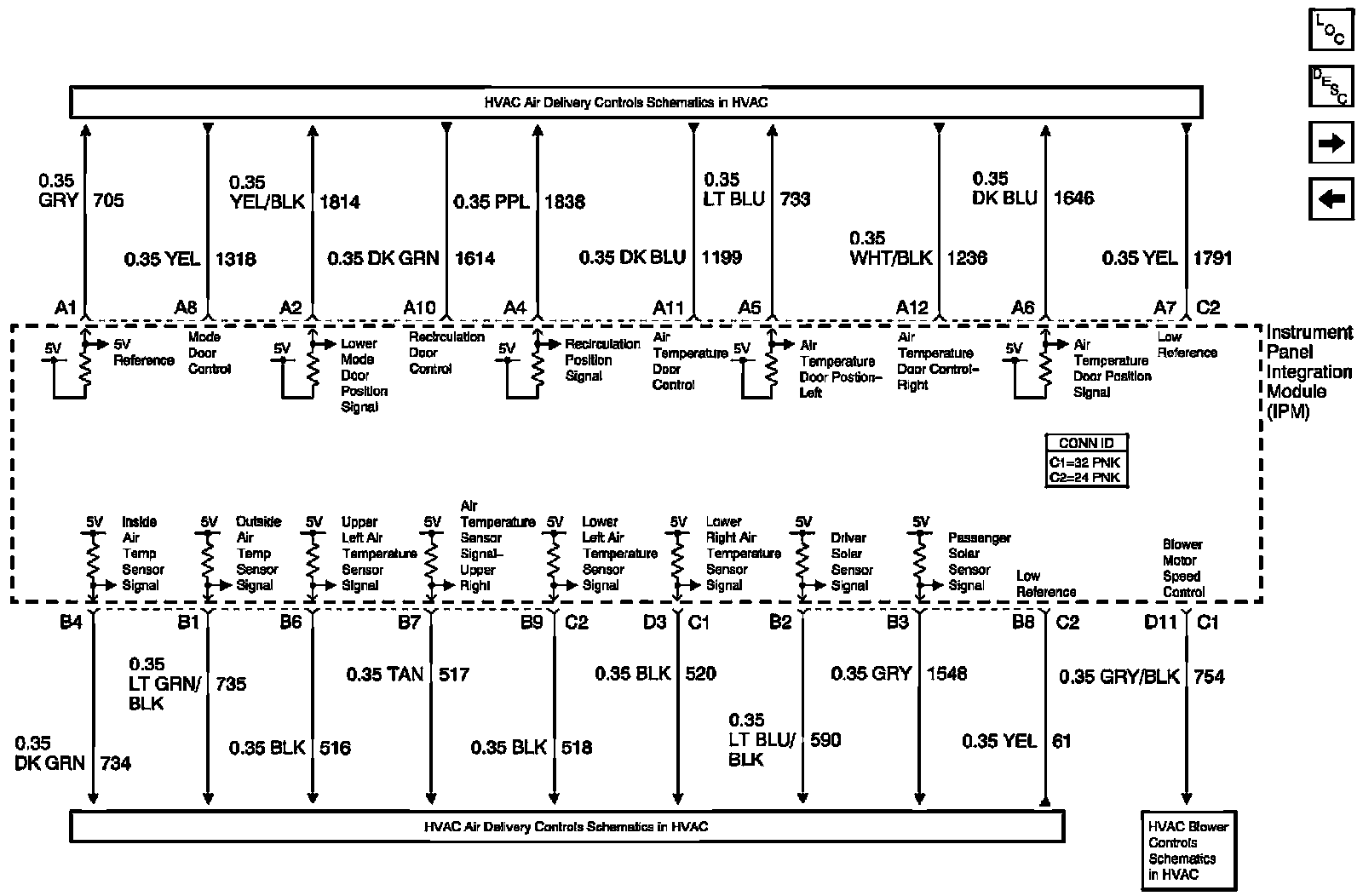

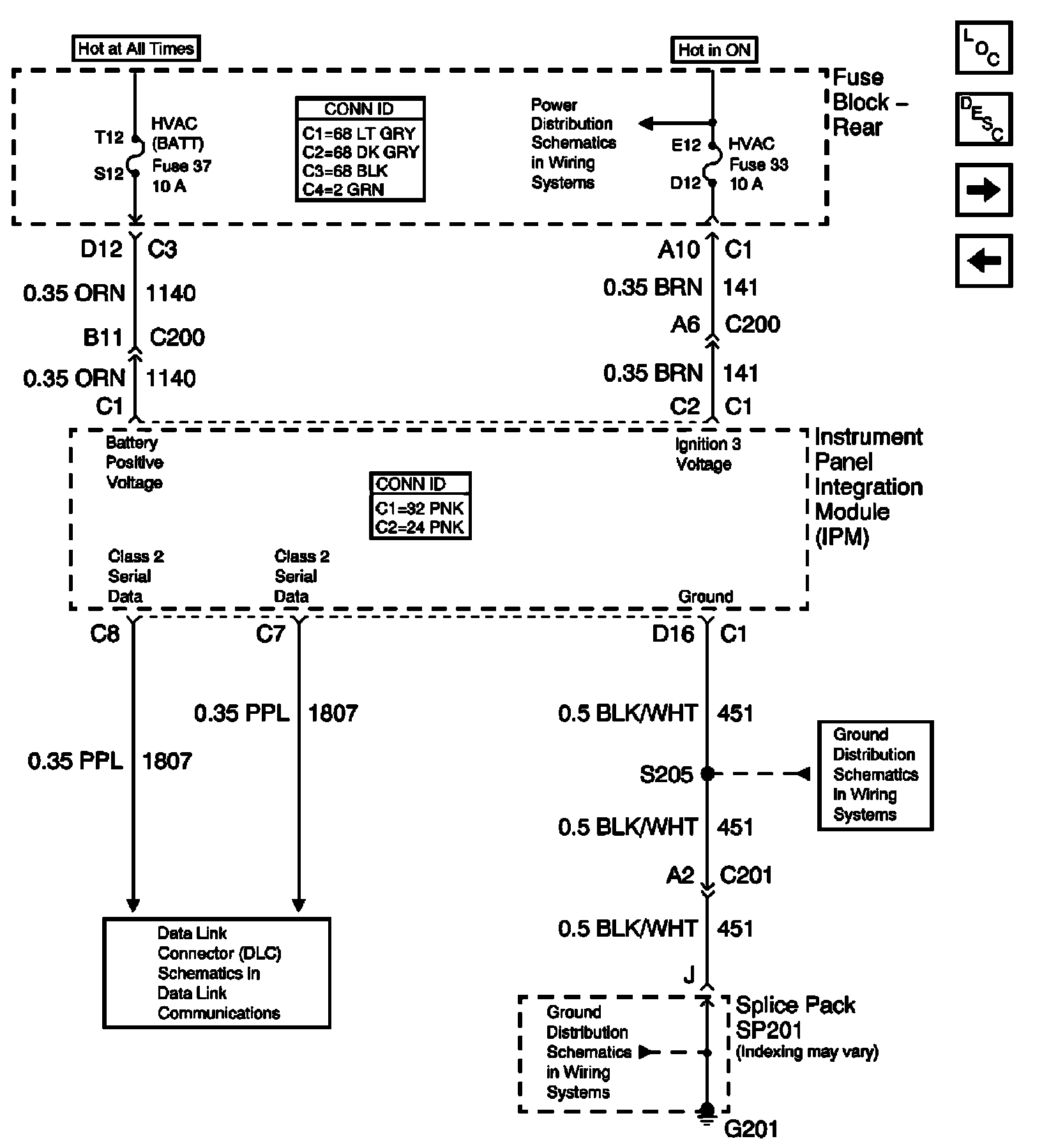

IPM Power and Grounds






IPM Input/Output (1 of 2)






IPM Input/Output (2 of 2)

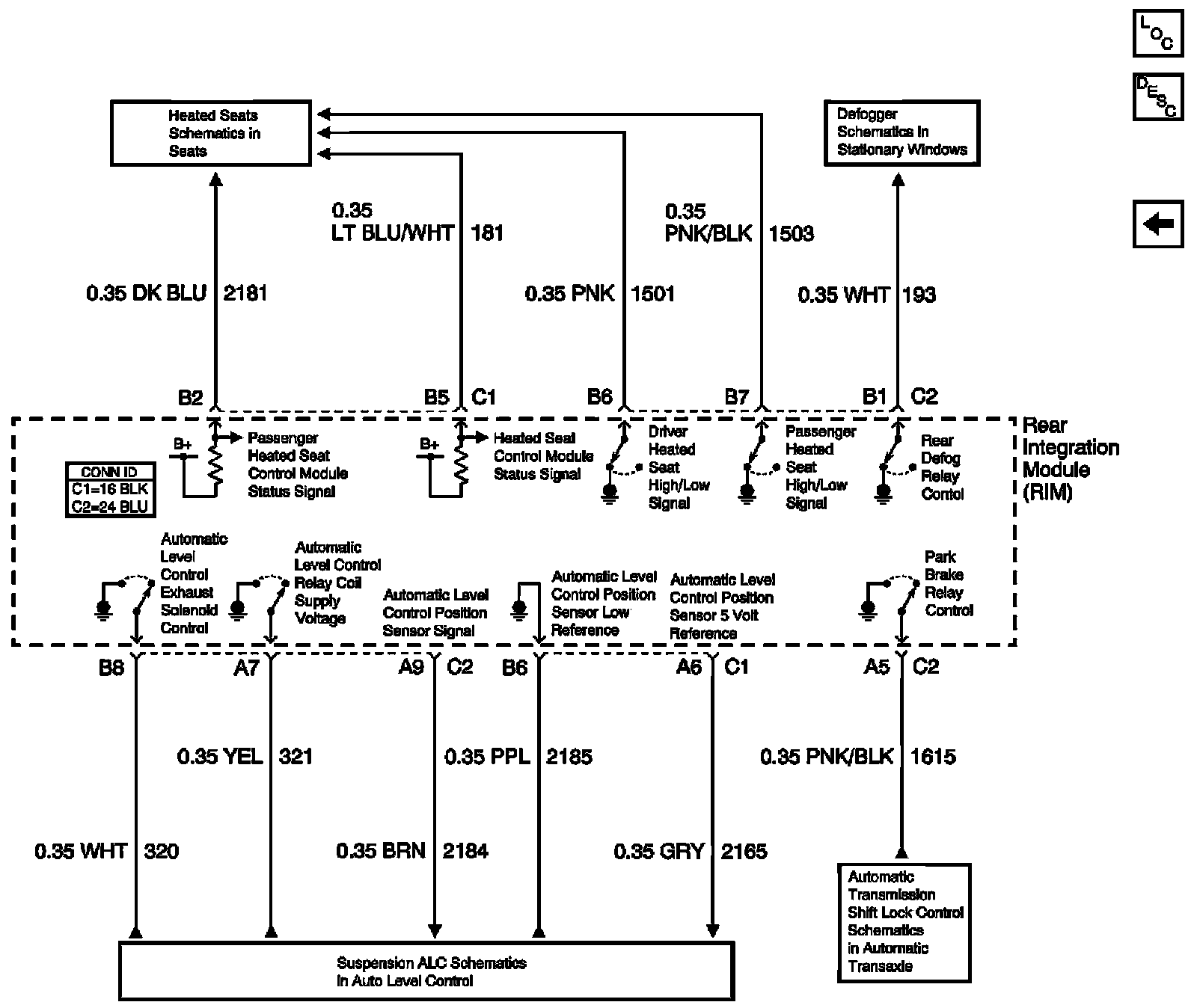

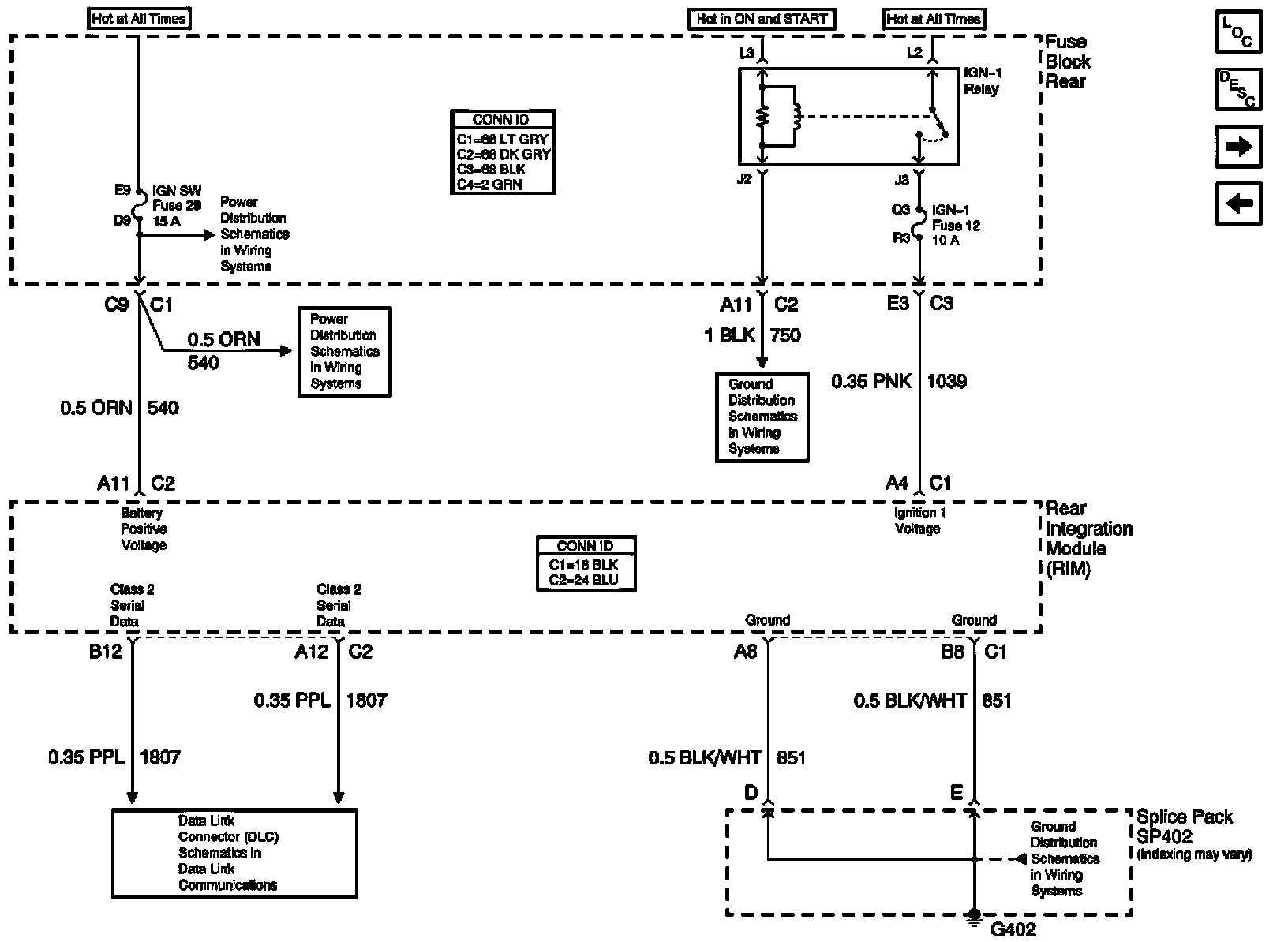

RIM Power and Grounds






RIM Input/Output (1 of 2)






RIM Input/Output (2 of 2)
