Electrical Diagrams

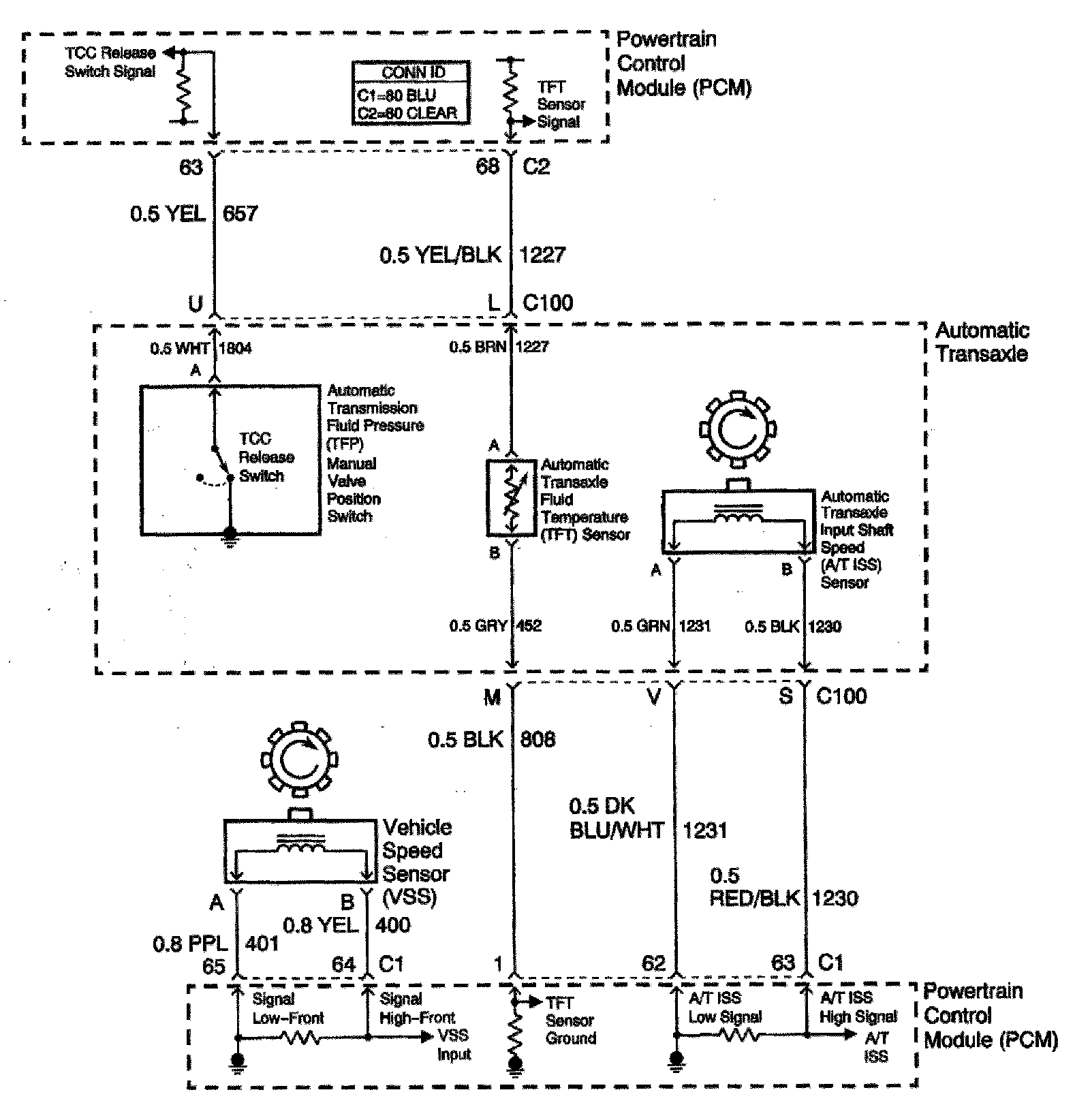

Transmission Inputs:

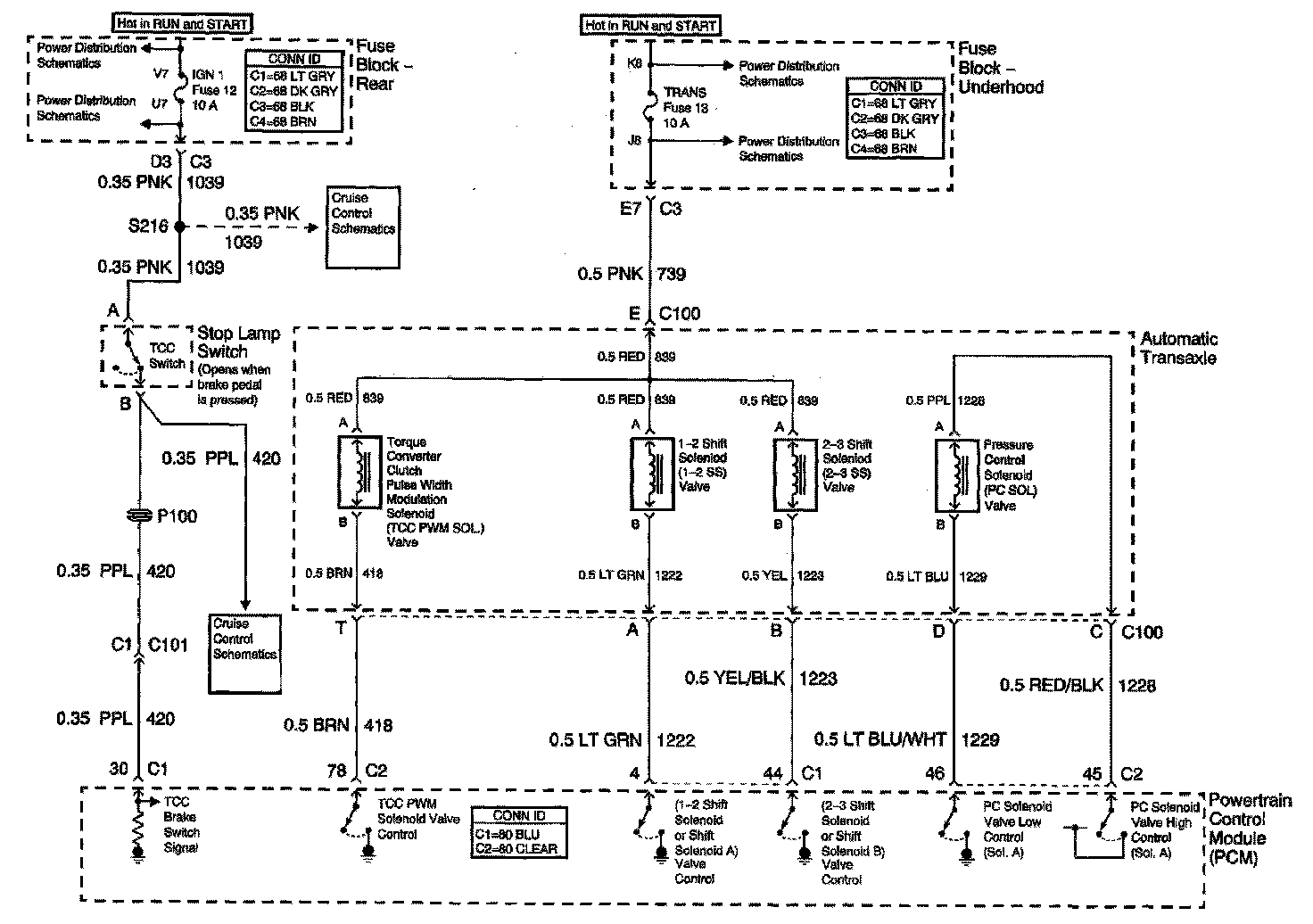

Transmission Solenoids:



Internal Mode Switch (IMS) Inputs:
