Fuel Tank Pressure Sensor: Service and Repair

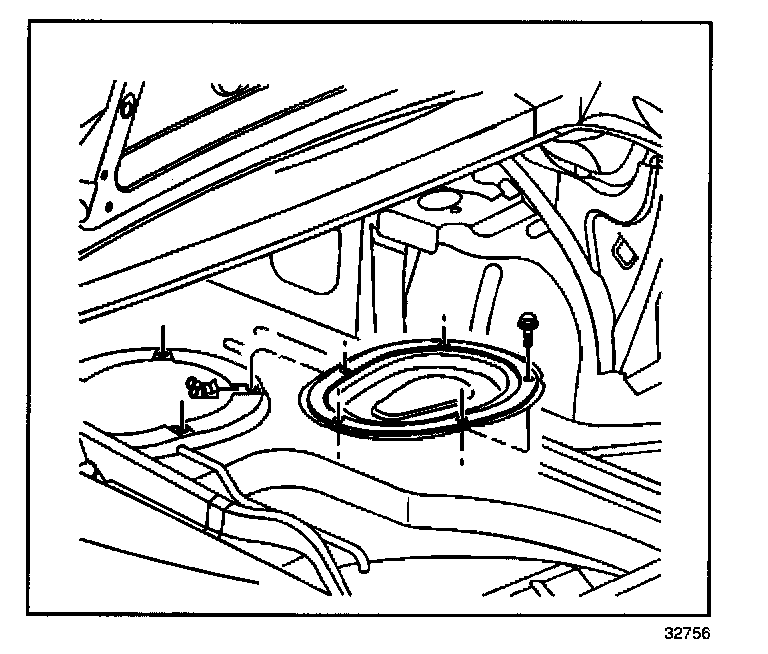

FUEL TANK PRESSURE SENSOR REPLACEMENTREMOVAL PROCEDURE
1. Remove the rear compartment floor trim.
2. Remove the fuel sender access panel bolts.
3. Remove the fuel sender access panel.

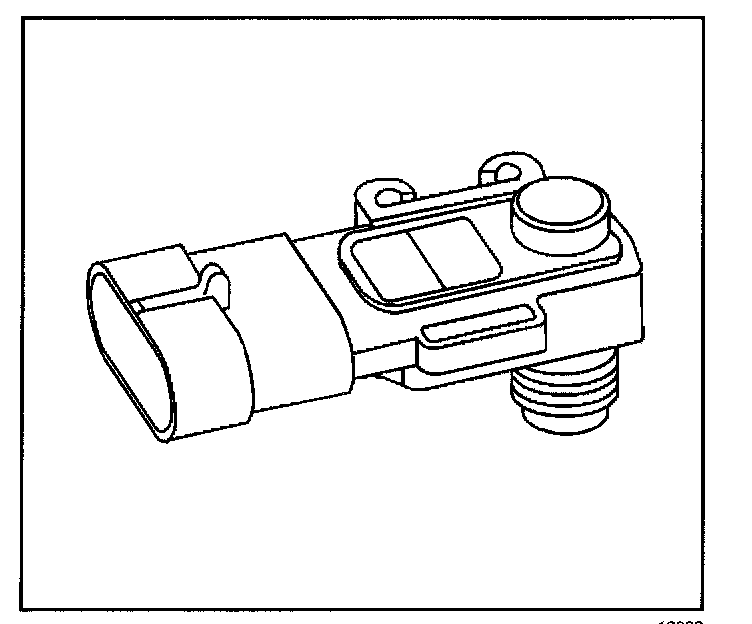

4. Disconnect the fuel tank pressure (FTP) sensor electrical connector.
5. Remove the FTP sensor.
INSTALLATION PROCEDURE

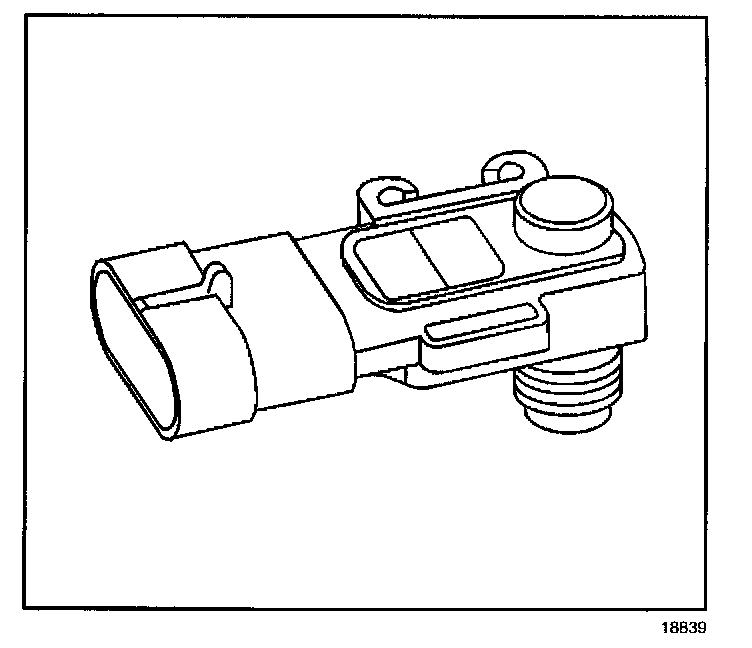

1. Install the FTP sensor.
2. Connect the FTP sensor electrical connector.

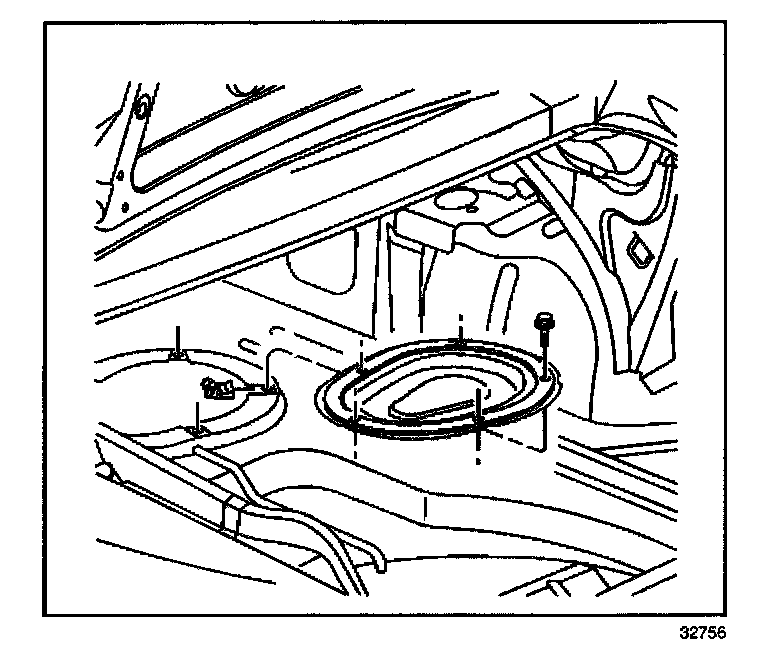

3. Install the fuel sender access panel.
NOTE: Refer to Fastener Notice in Service Precautions.
4. Install the fuel sender access panel bolts.
Tighten
Tighten the fuel sender access panel bolts to 2 N.m (18 lb in).
5. Install the rear compartment floor trim.
