Heater Core Replacement - Auxiliary

HEATER CORE REPLACEMENT - AUXILIARY

REMOVAL PROCEDURE
1. Remove the HVAC module-auxiliary. Service and Repair

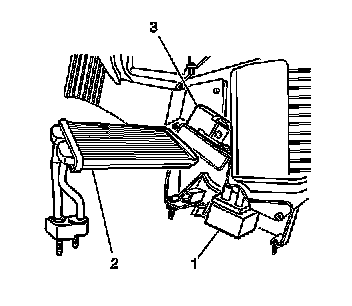

2. Remove the screws from heater core cover-auxiliary (3) from the HVAC module-auxiliary.
3. Remove the heater core cover-auxiliary (3).




4. Remove the HVAC module pass thru seal-auxiliary.
5. Remove the heater core-auxiliary (2) from the HVAC module-auxiliary.

INSTALLATION PROCEDURE




1. Install the heater core-auxiliary (2) to the HVAC module-auxiliary.
2. Install the HVAC module pass thru seal-auxiliary.




3. Install the heater core access cover-auxiliary (3) to the HVAC module-auxiliary.
4. Install the screws to the heater core access cover-auxiliary (3).

Tighten the screws to 2 N.m (18 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

5. Install the HVAC module-auxiliary.
