Fuel Level Sensor: Service and Repair

FUEL LEVEL SENSOR REPLACEMENT

REMOVAL PROCEDURE
1. Remove the fuel sender from the fuel tank.

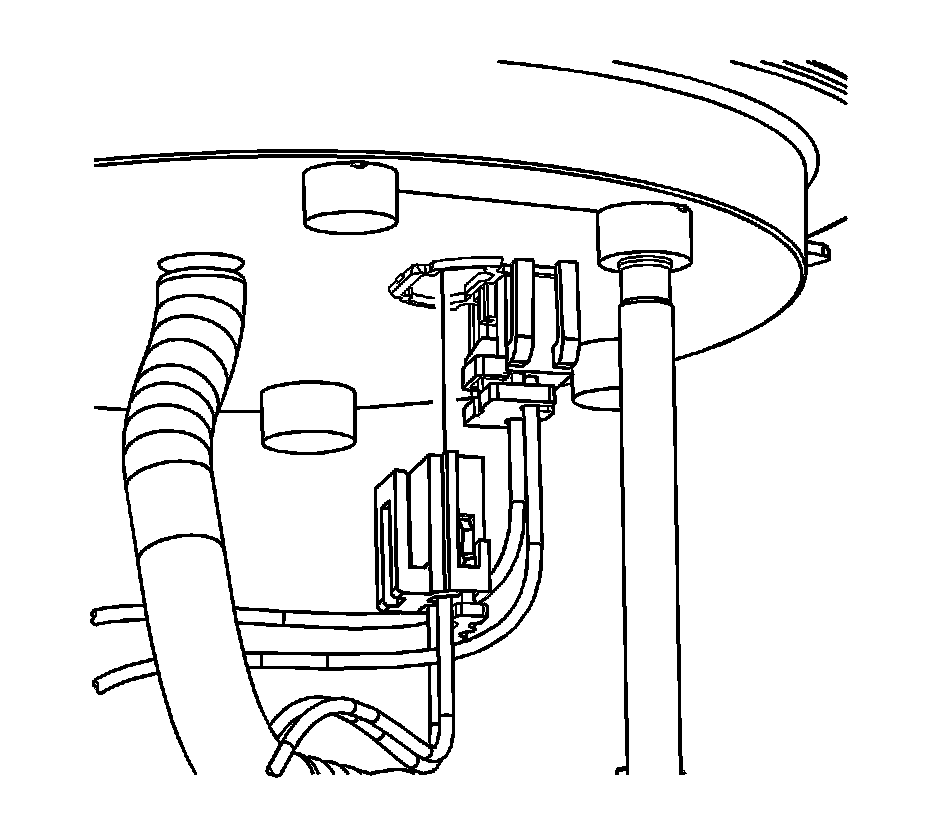

2. Disconnect the fuel level sensor electrical connector located in the module cover.

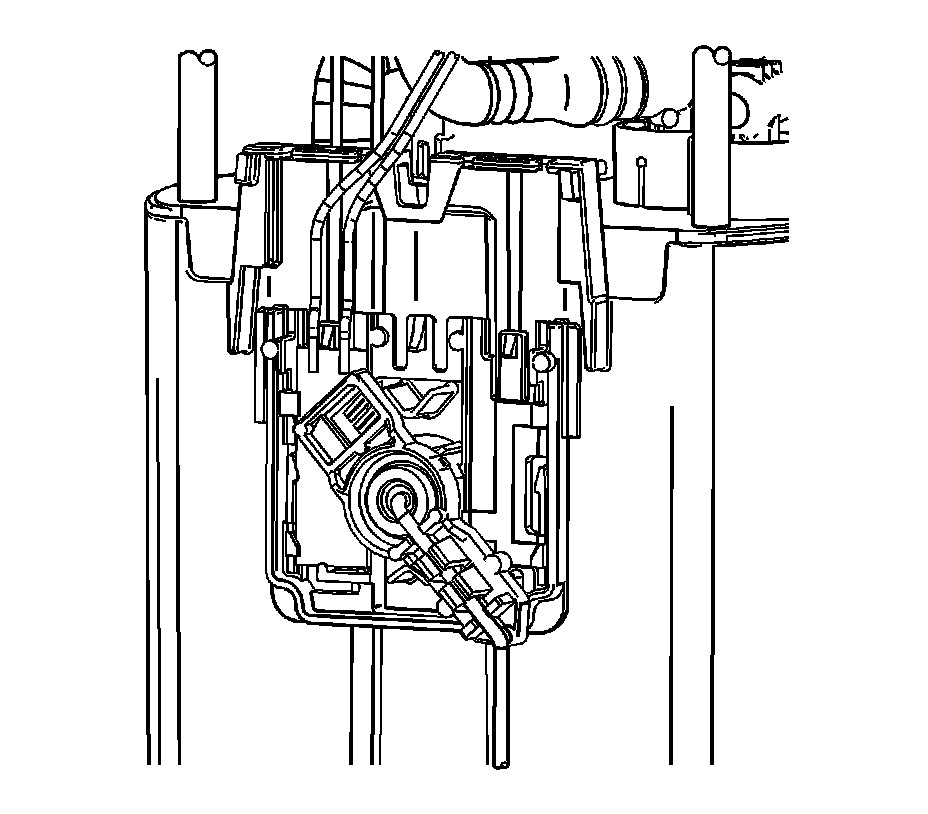

3. Use a small flat-bladed tool in order to disengage the fuel level sensor retainer.




4. Slide the fuel level sensor down in order to remove the fuel level sensor from the fuel sender module.

INSTALLATION PROCEDURE




1. Slide the fuel level sensor up in order to install the fuel level sensor to the fuel sender module.
2. Ensure that the fuel level sensor retainer is properly engaged.




3. Connect the fuel level sensor electrical connector.
4. Install the fuel sender to the fuel tank.
