Electronic Brake Control Module: Locations

Hydraulic Brakes Component Views

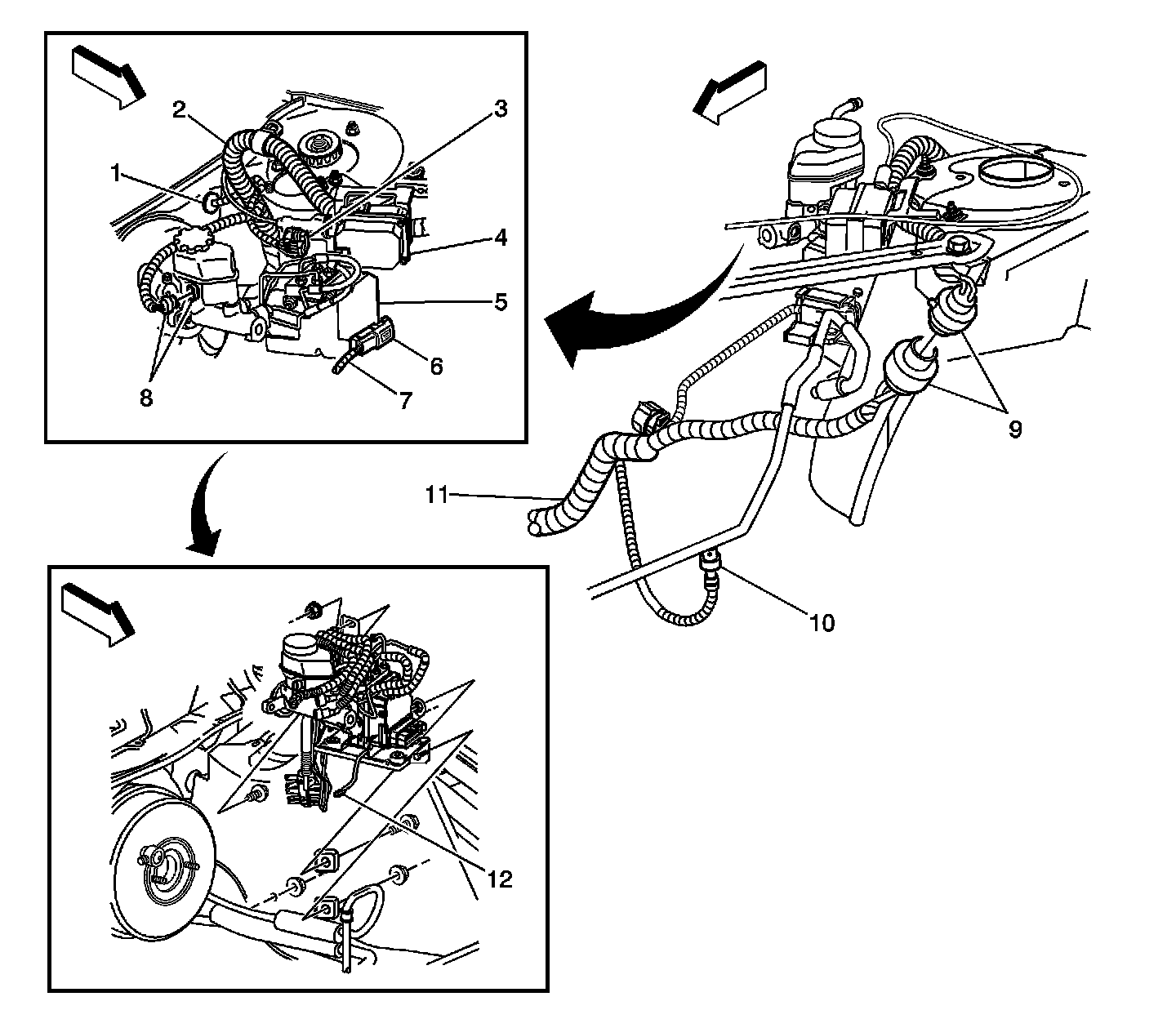

Left Rear of the Engine Compartment

1 - P103
2 - I/P Wiring Harness
3 - Cruise Control Module (CCM) Connector
4 - Cruise Control Module (CCM) (K34)
5 - Electronic Brake Control Module (EBCM) (JL9)
6 - Electronic Brake Control Module (EBCM) Connector (JL9)
7 - Engine Wiring Harness
8 - Brake Fluid Level Switch
9 - C101
10 - A/C Refrigerant Pressure Sensor
11 - Engine Wiring Harness
12 - G171 (JL9)
