Removal

COMPRESSOR CONTROL SWITCHES REMOVAL

TOOLS REQUIRED
- J 5403 Internal Snap Ring Pliers
- J 9553-01 O-Ring Remover
- J 39500-B ACR4-Black Shroud




1. Recover the refrigerant using the J 39500-B.

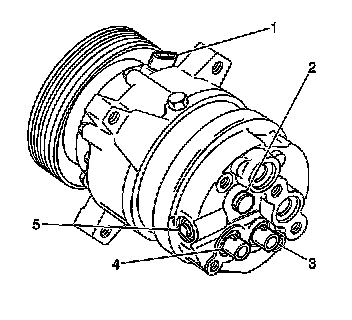

2. Disconnect the electrical connector from the switch (3 or 4) in the rear head of the compressor.
3. Remove the switch retaining ring using the J 5403.
4. Remove the switch (3 or 4) from the compressor.
5. Remove the old O-ring seal from the switch cavity using the J 9553-01.

NOTE: If the existing switch will be reinstalled in the compressor, a new O-ring seal must be used and preferably a new retainer should also be used. A new switch kit has the O-ring and retainer ring included.
