Front Door Switch Bezel Replacement

BEZEL REPLACEMENT - FRONT DOOR SWITCH

REMOVAL PROCEDURE
1. Remove the front door trim pad.

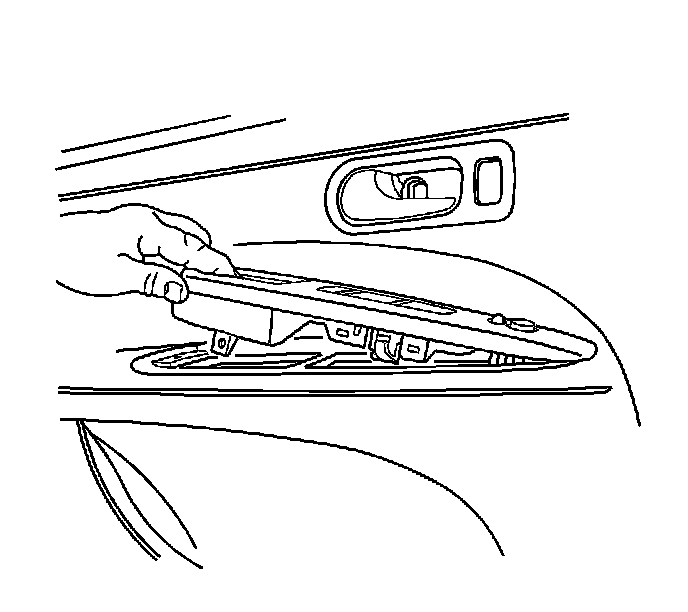

2. Remove the window and rearview mirror switches.

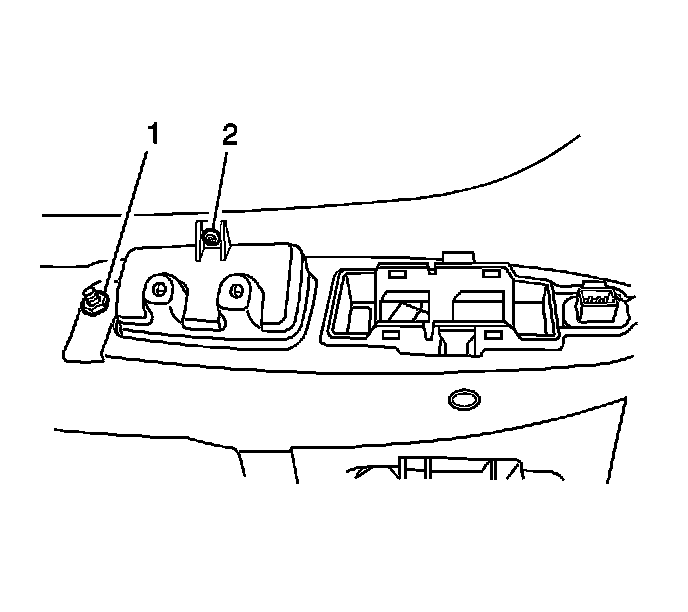

3. Remove the bezel clip (1).
4. Remove the bezel screw (2).

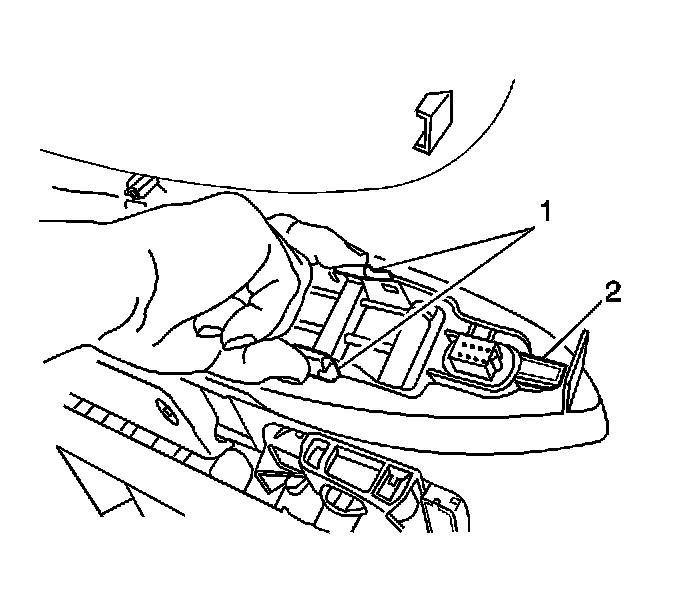

5. Press the 2 retaining clips (1) together and push the rear of the bezel out through the door trim.
6. Pull the bezel rearward to remove the front tab (2).
7. Remove the bezel from the vehicle.

INSTALLATION PROCEDURE
1. Position the retainer tab into the trim panel and press down on the bezel to seat the retainer clips.




2. Install the pull handle housing screw.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 3 N.m (27 lb in).

3. Install the pull handle housing clip.




4. Install the window and rearview mirror switches.
5. Install the front door trim pad.
