Parking Brake System: Service Precautions

The content of this article reflects the changes identified in TSB Bulletin No. #05-05-26-004 dated December 14, 2005.

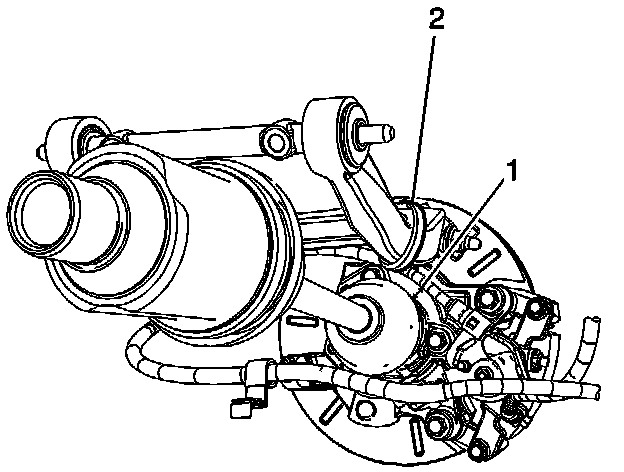

Important: Maintain proper rear park brake cable routing and clearances. Verify that the rear park brake cables have a minimum of 10 mm and a maximum of 12 mm of clearance to the wheel drive shafts (1). Maintain this clearance using retention straps or equivalent retention (2).
