Luggage Compartment/Rear of Vehicle Component Views

Luggage Compartment/Rear of Vehicle Component Views

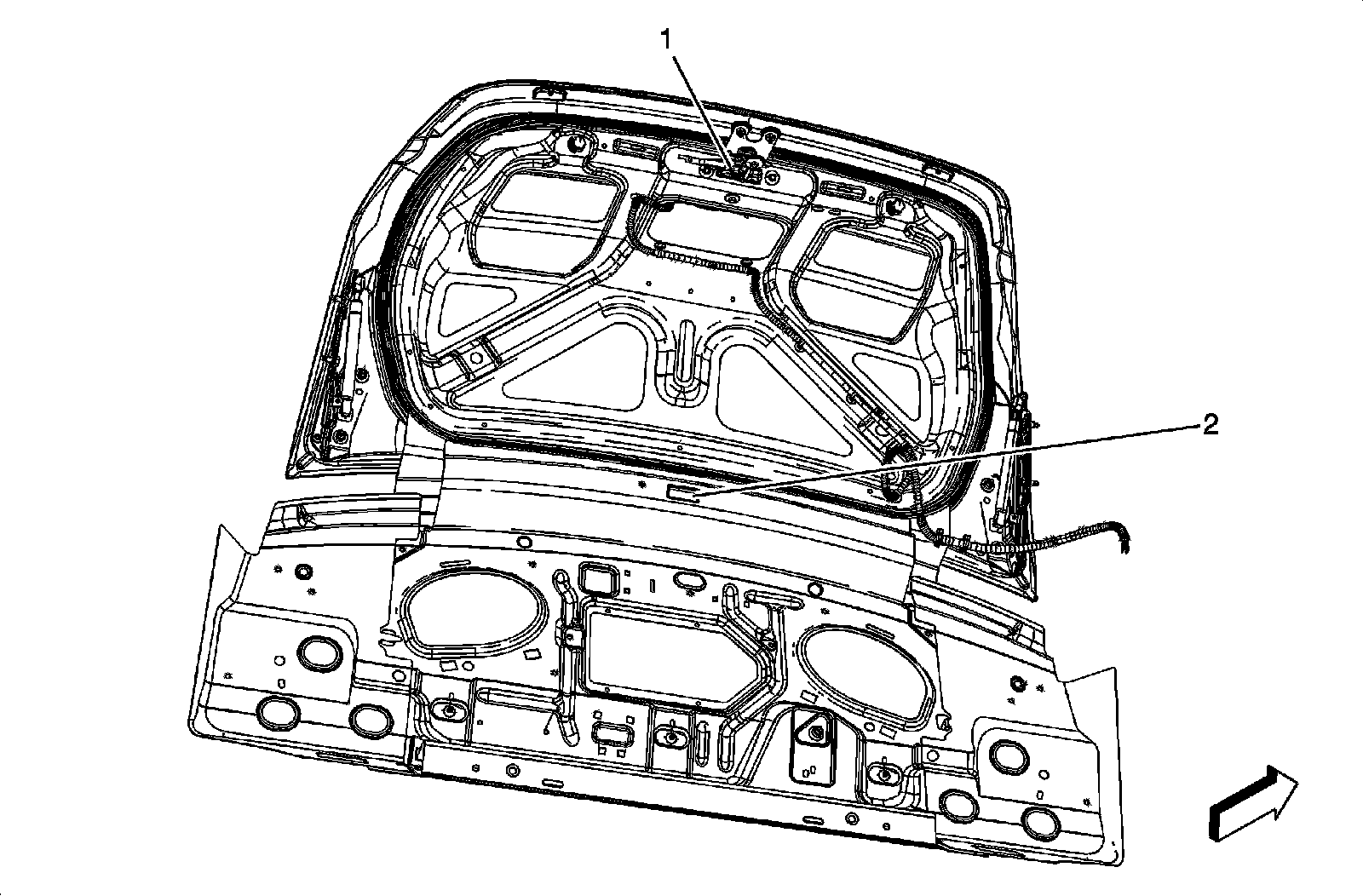

Rear Compartment Lid Components




1 - Rear Compartment Lid Latch
2 - Rear Compartment Courtesy Lamp

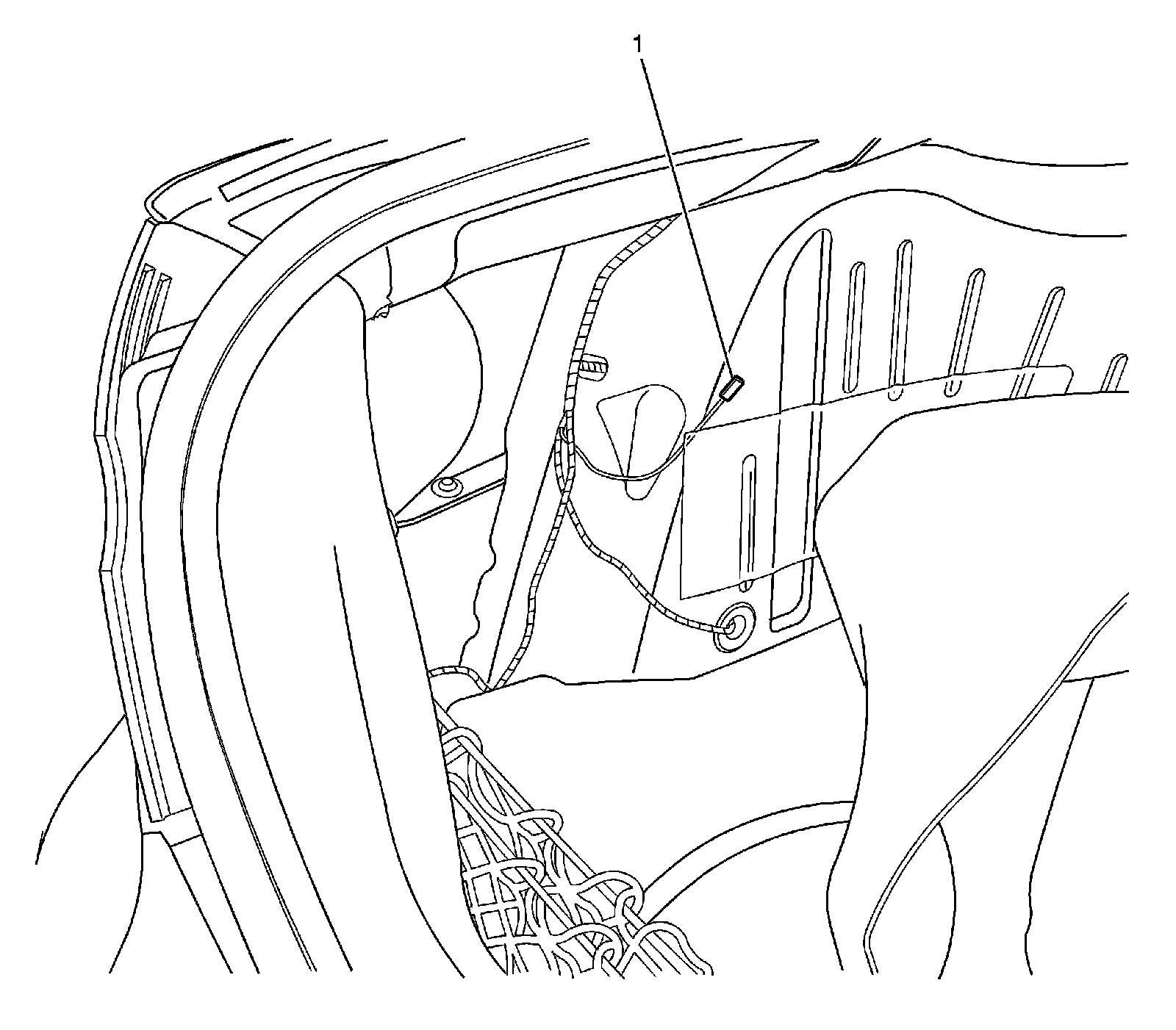

Left Side of the Luggage Compartment 1 of 2




1 - Rear Parking Assist (RPA) Diagnostic Connector

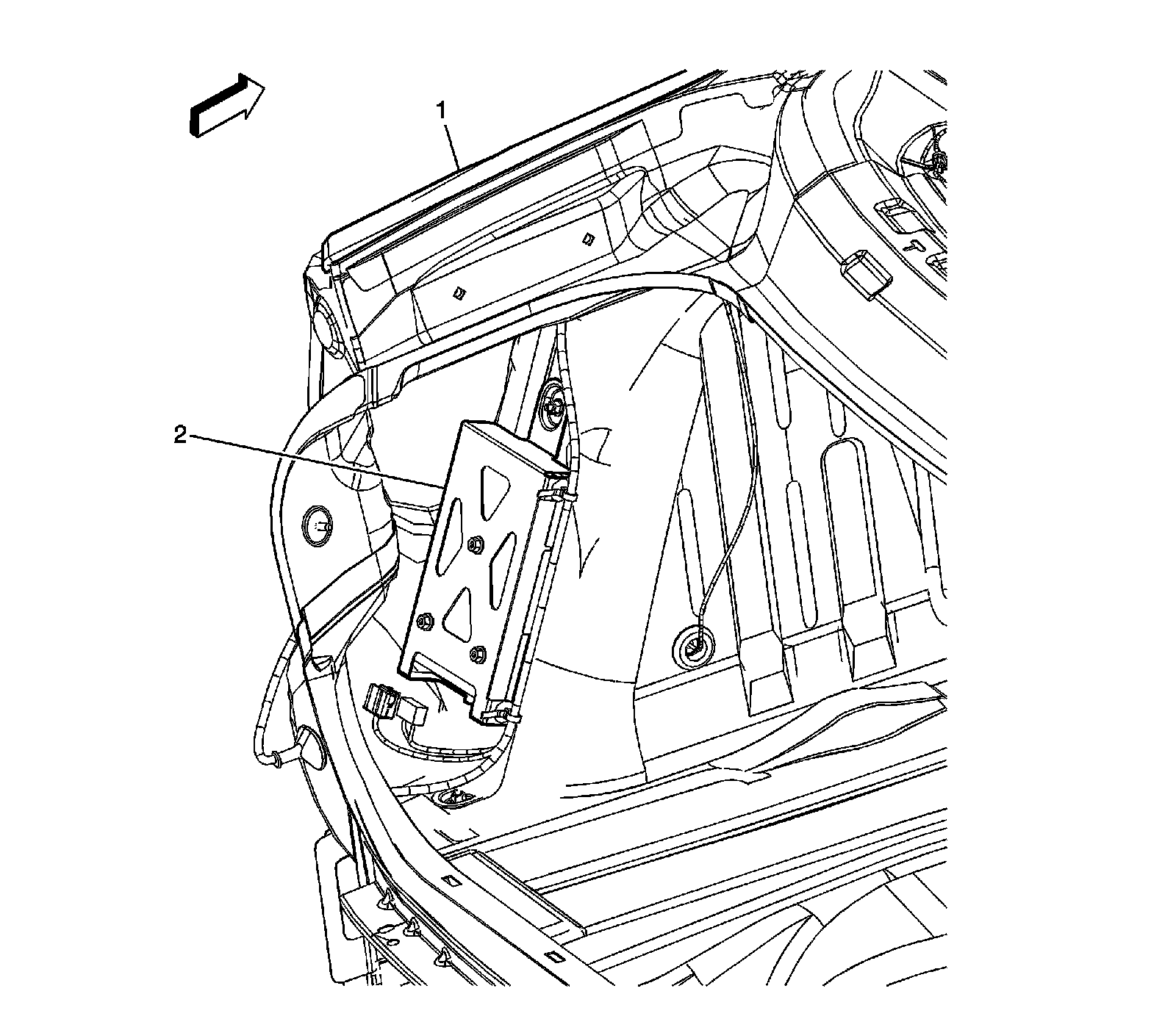

Left Side of the Luggage Compartment Components 2 of 2




1 - Left Rear Fender Panel
2 - Digital Radio Receiver (U2K)

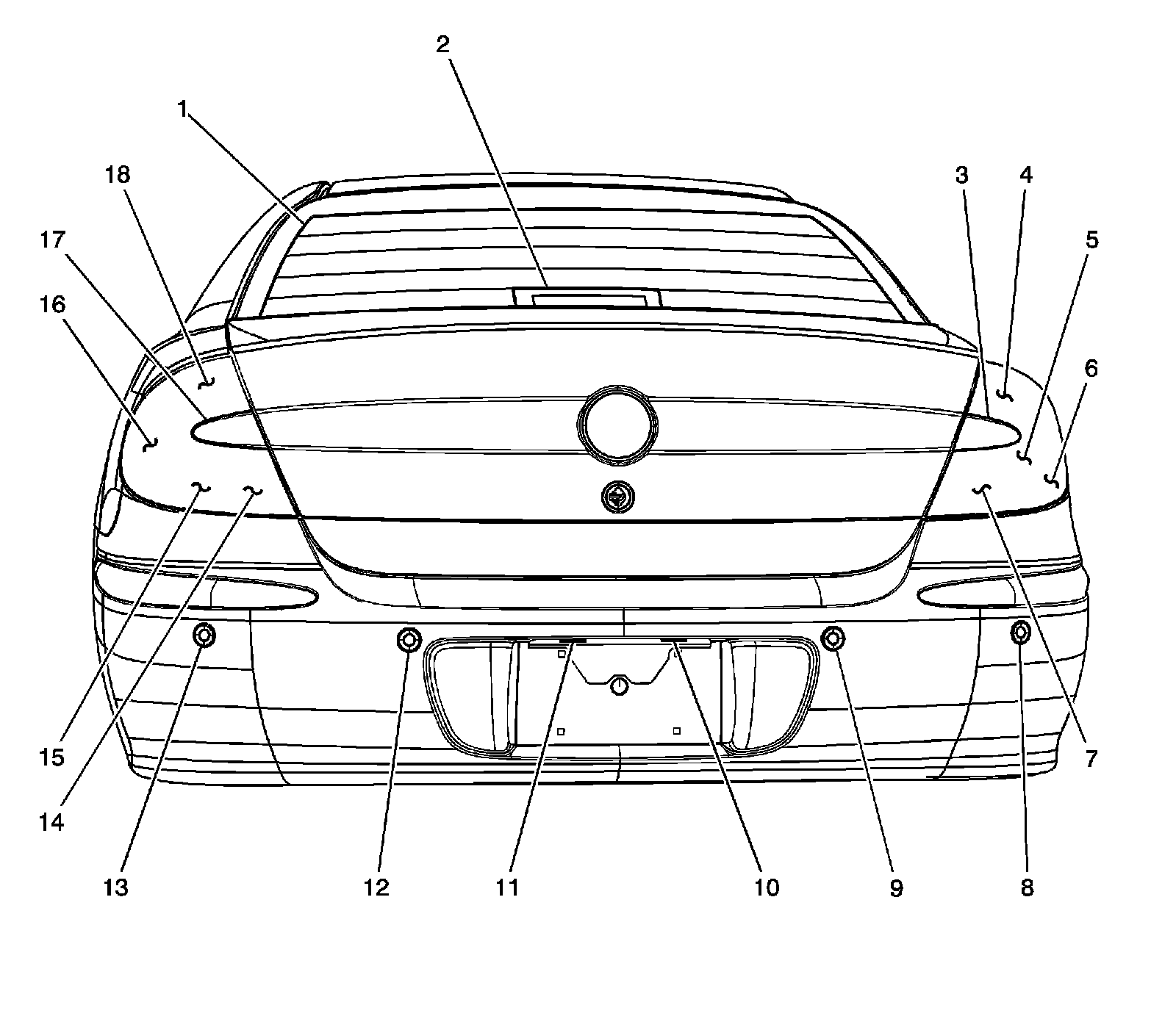

Rear of the Vehicle Components




1 - Rear Window Defogger Grid/Radio Rear Window Antenna
2 - Center High Mounted Stop Lamp (CHMSL)
3 - Backup Lamp - Right
4 - Tail Lamp - Upper Right
5 - Tail / Stop and Turn Signal Lamp - Right
6 - Marker Lamp - Right
7 - Tail Lamp - Lower Right
8 - Object Alarm Sensor - Right Rear Corner (UD7)
9 - Object Alarm Sensor - Right Rear Middle (UD7)
10 - License Lamp - Right
11 - License Lamp - Left
12 - Object Alarm Sensor - Left Rear Middle (UD7)
13 - Object Alarm Sensor - Left Rear Corner (UD7)
14 - Tail Lamp - Lower Left
15 - Marker Lamp - Left Rear
16 - Tail / Stop and Turn Signal Lamp - Left
17 - Backup Lamp - Left
18 - Tail Lamp - Upper Left
