Sunshade Illuminated Mirror Lamp Bulb Replacement

Sunshade Illuminated Mirror Lamp Bulb Replacement

Removal Procedure

1. Lower the sunshade and open the illuminated mirror door.

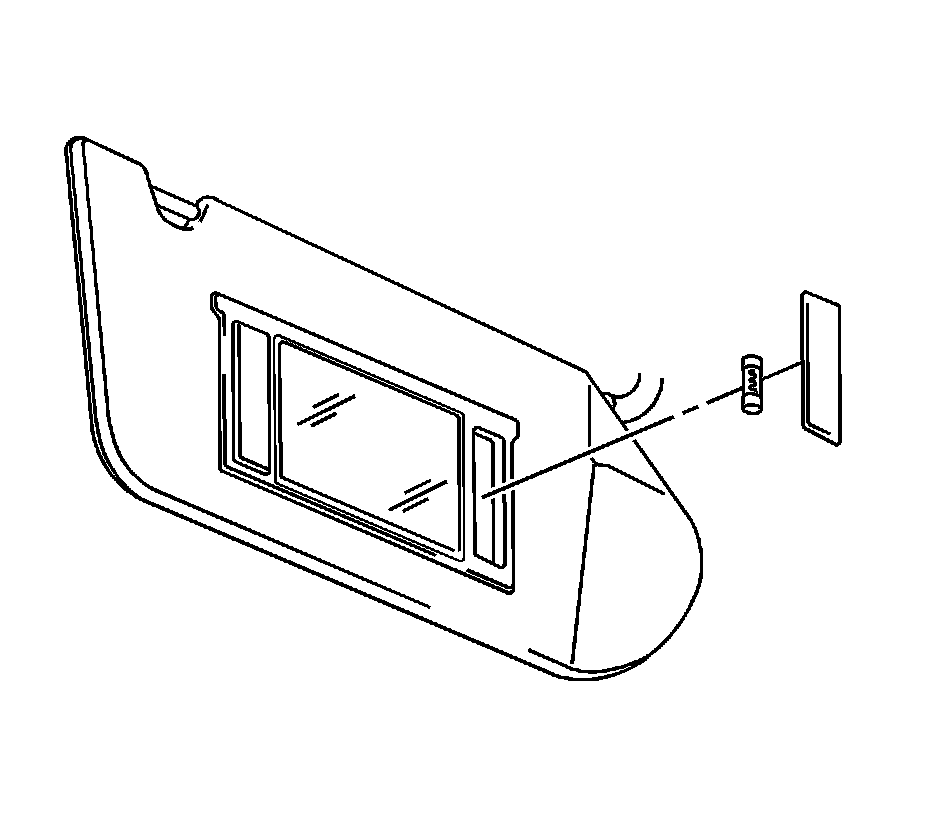

2. Insert a small flat-bladed tool at the upper edge of the lamp lens. Carefully press down to remove the lens.




3. Remove the bulb.

Installation Procedure




1. Install the bulb.




2. Align the upper lens tab to the opening. Insert the upper edge of the lens.

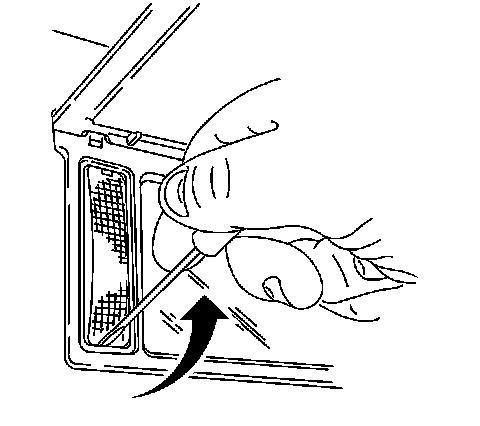

3. Insert a small flat-bladed tool at the lower edge of the lamp lens. Carefully press up to install the lens.
4. Close the illuminated mirror door and raise the sunshade.
