Forward Lamp Harness Routing
Harness Routing Views

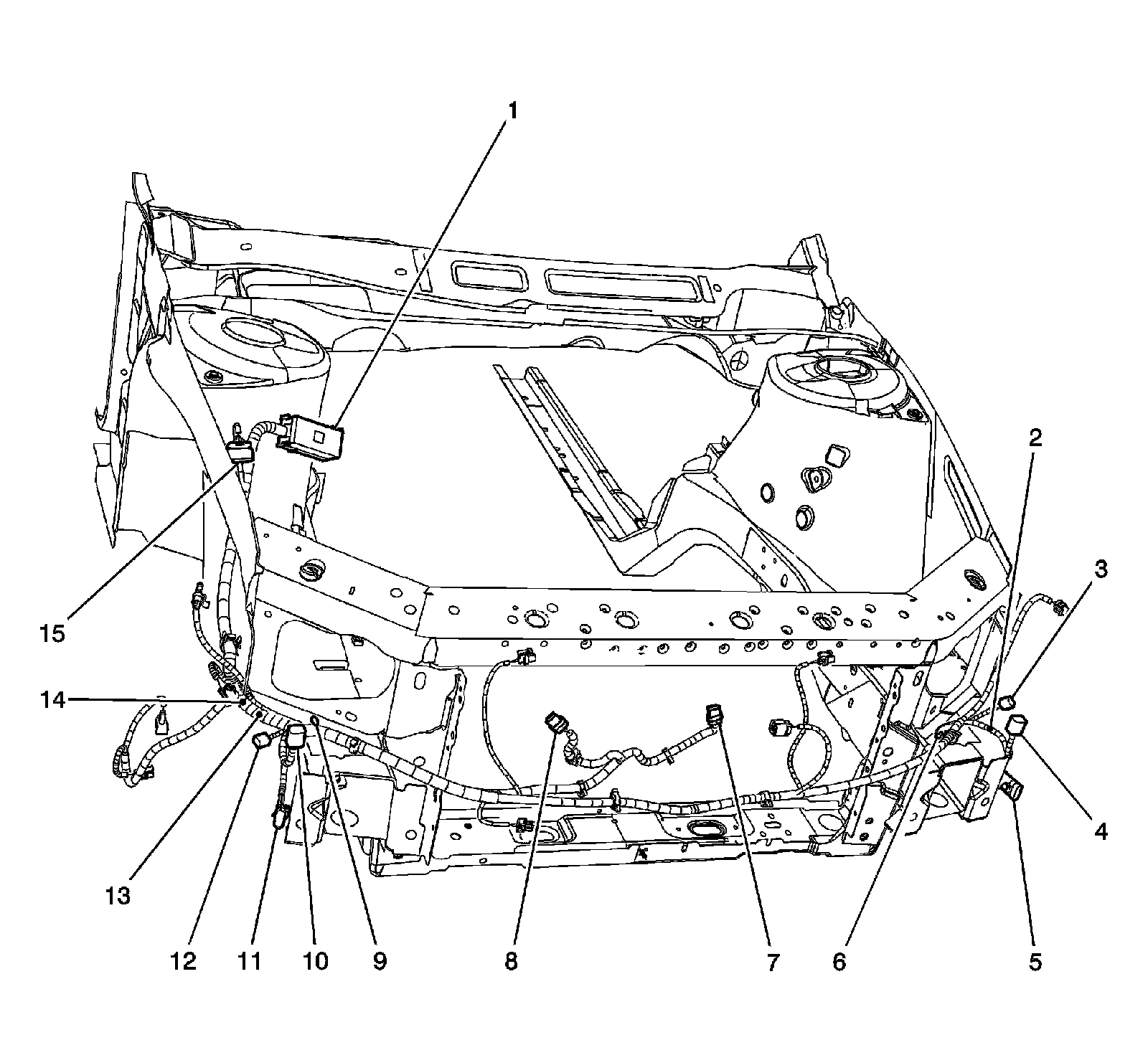

Forward Lamp Harness Routing
1 - Fuse Block - Underhood X3 Connector
2 - J112
3 - Marker Lamp - Left Front
4 - X141
5 - X143
6 - G101
7 - Engine Cooling Fan - Left Connector
8 - Engine Cooling Fan - Right Connector
9 - G100
10 - X142
11 - X144
12 - Marker Lamp - Right Front
13 - J124
14 - J123 (LS4)
15 - X120
