Differential Carrier Components Assemble

Differential Carrier Components Assemble (FWD Only)

Special Tools

J 36850 - Assembly Lubricant or equivalent

For equivalent regional tools, refer to Special Tools (Tools and Equipment).




1. Assemble the final drive sun gear (697) with the chamfered side toward the parking gear (696) into the differential/final drive carrier assembly (700).
2. Assemble the parking gear (696) onto the final drive sun gear shaft (689)
3. Assemble the final drive sun gear shaft/parking gear assembly (689/696) into the final drive sun gear (697).

Note: Apply J 36850 - lubricant or equivalent to the parking gear side of the bearing (695).

4. Assemble the internal gear/parking gear thrust bearing (695) to the parking gear (696).

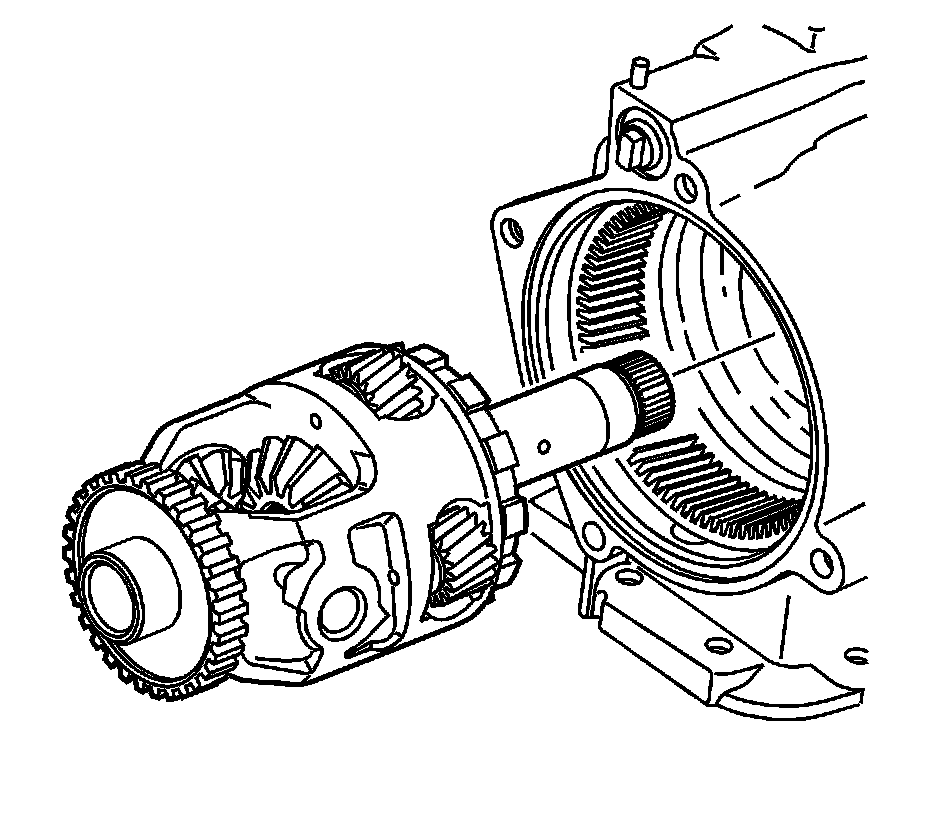

5. Install the differential/final drive carrier assembly into the case.
