System Diagram

Component Connector End Views

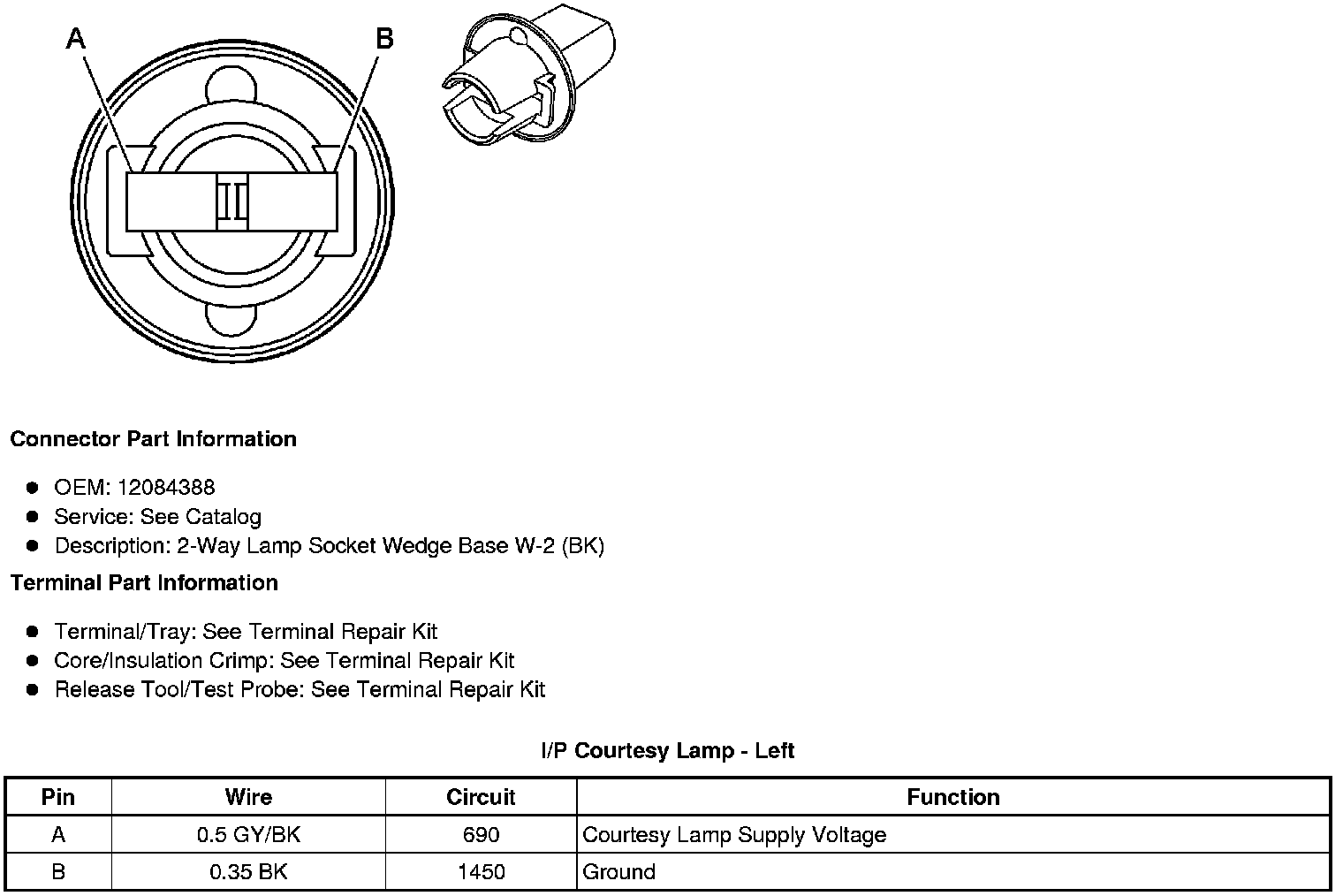

I/P Courtesy Lamp - Left

I/P Courtesy Lamp - Right

Overhead Console Courtesy/Reading Lamp - Left

Overhead Console Courtesy/Reading Lamp - Right

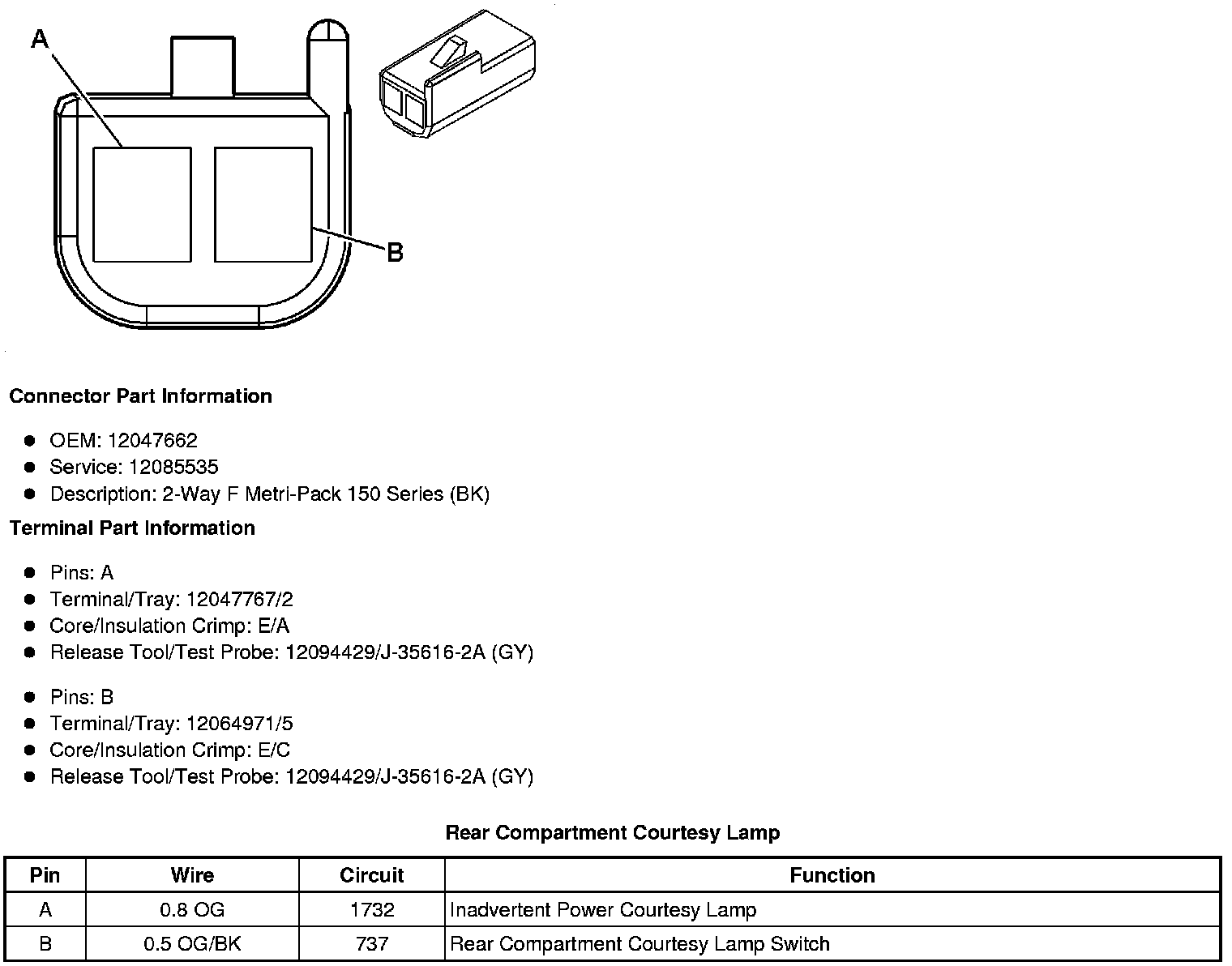

Rear Compartment Courtesy Lamp
