Automatic Transmission/Transaxle

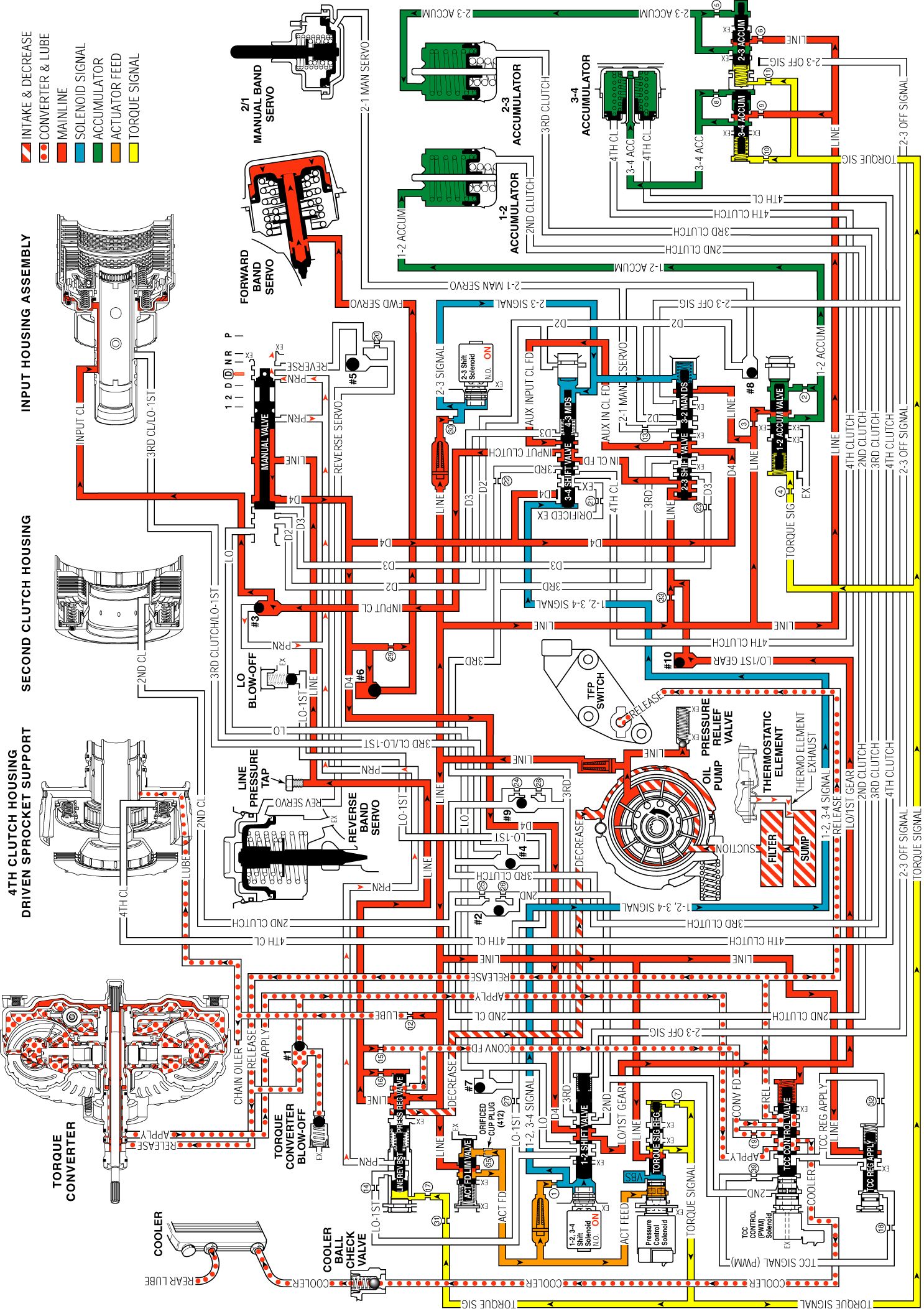

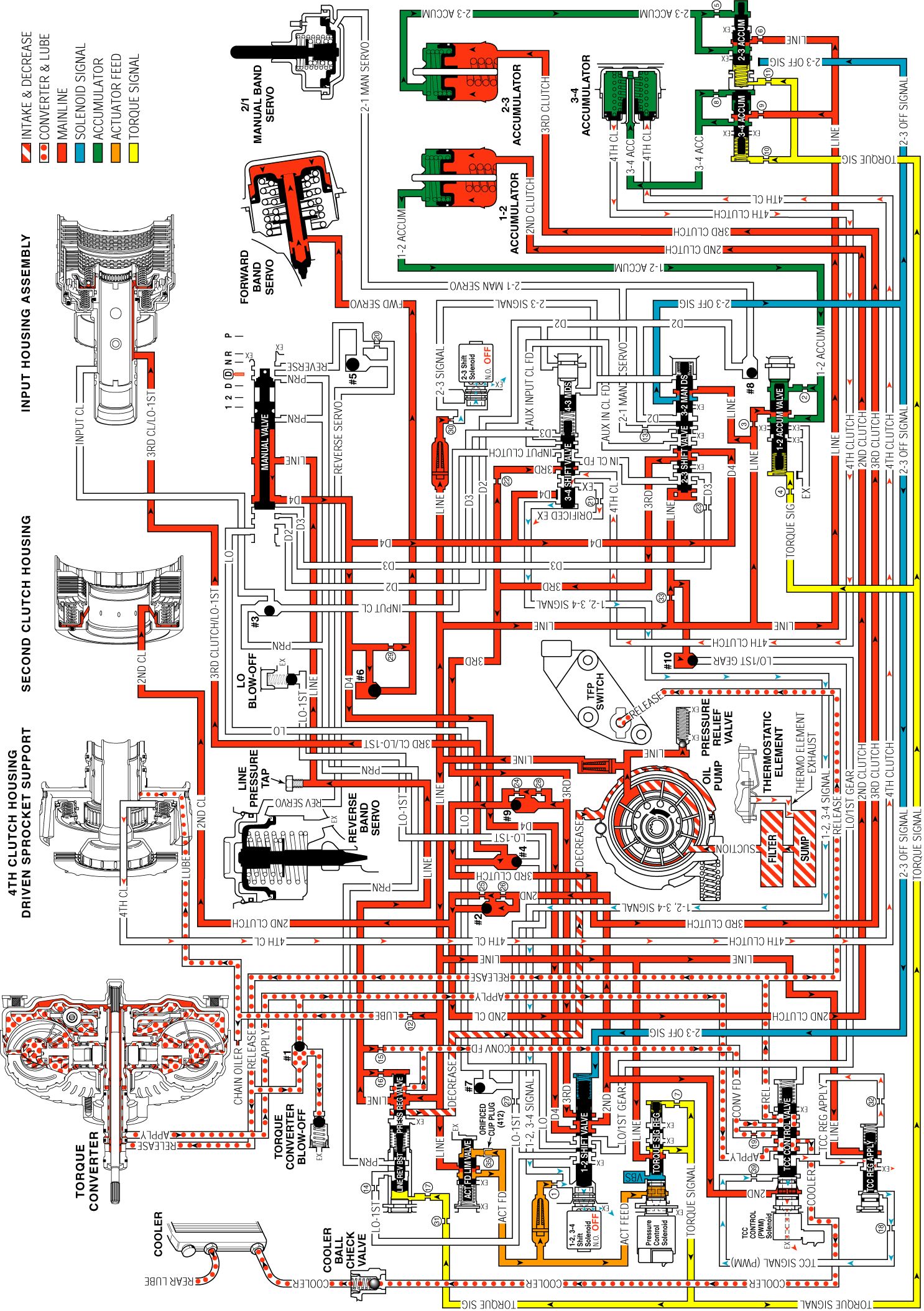

Drive Range, Manual 3rd - from Overdrive Range

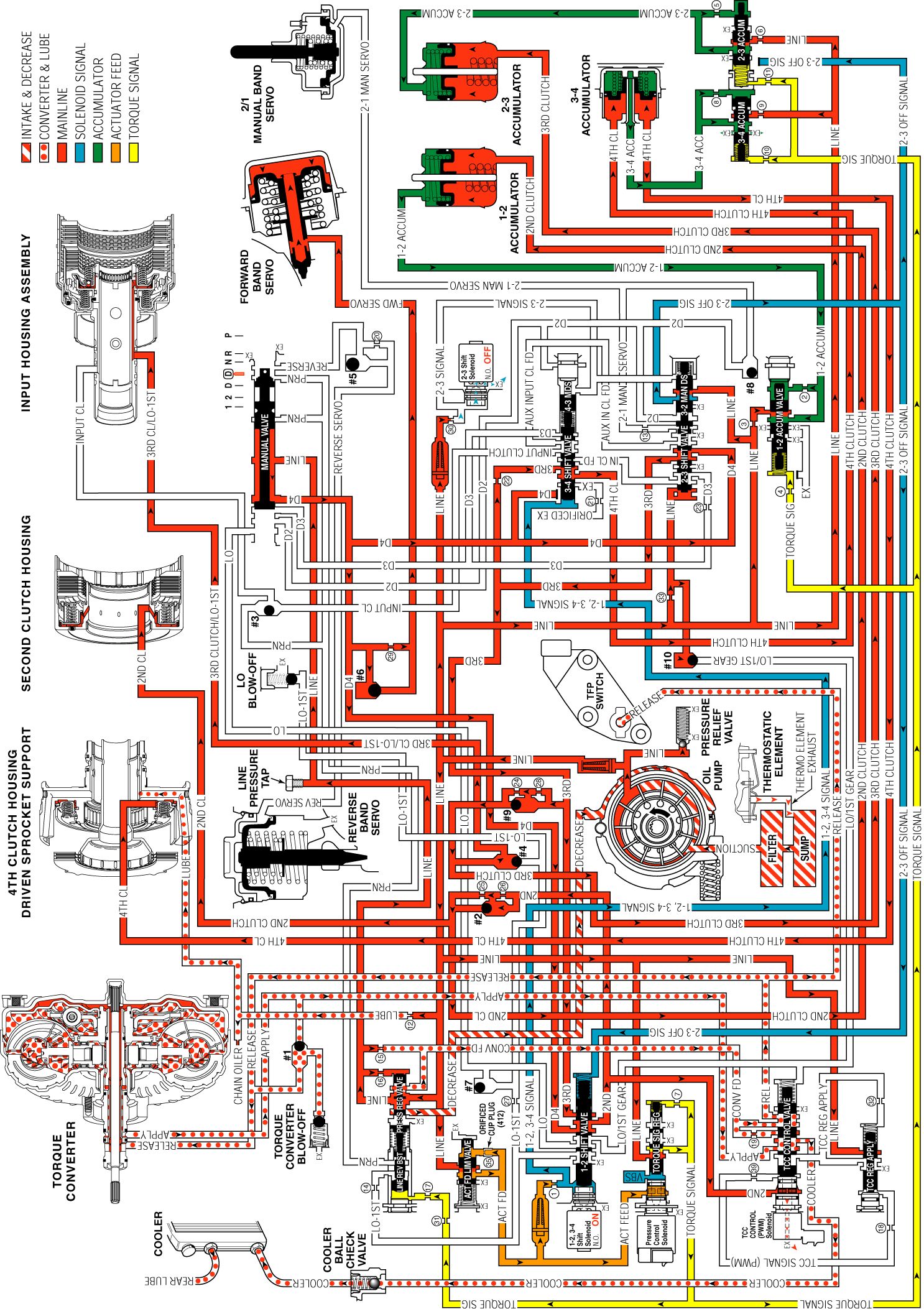

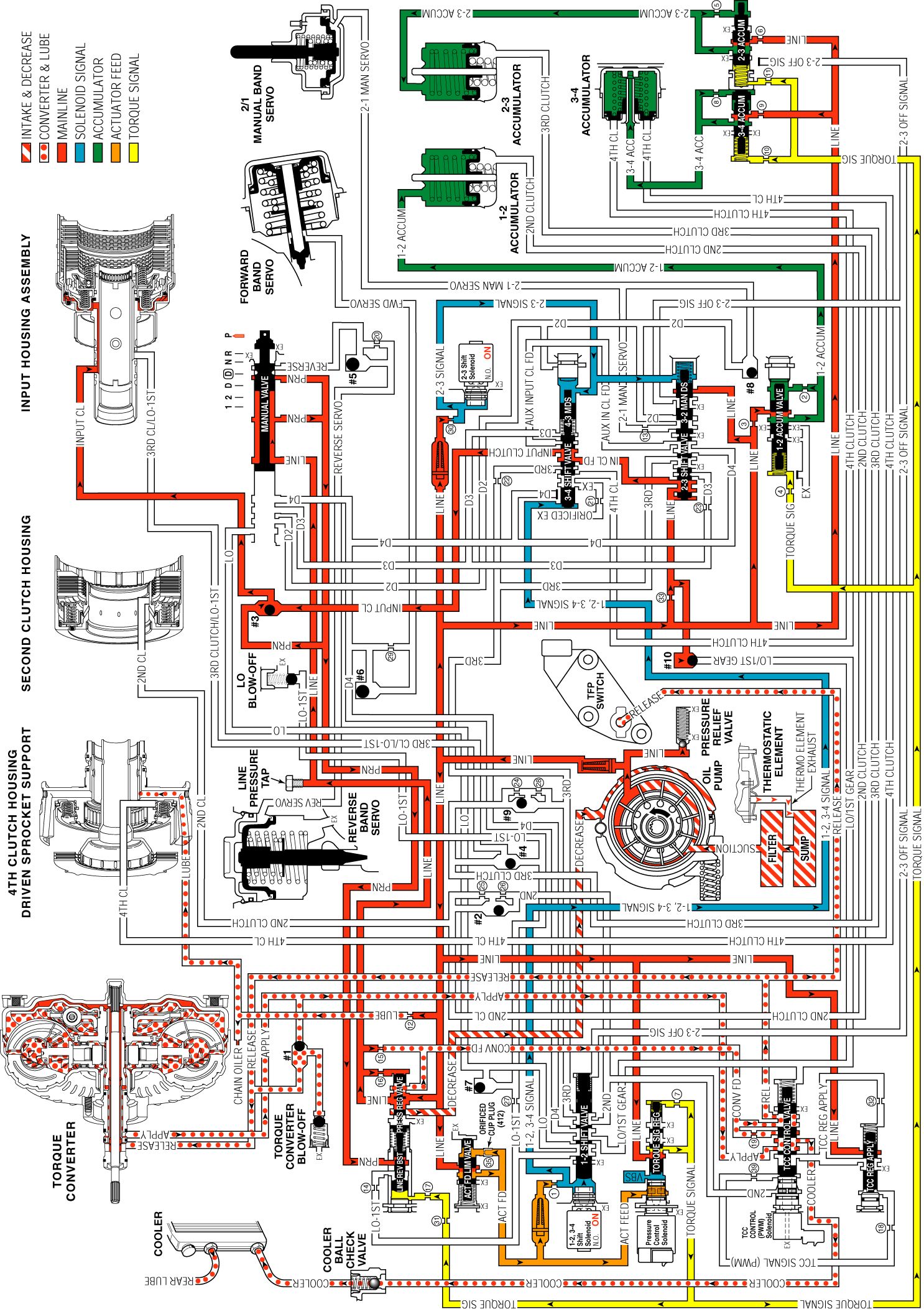

Drive Range, Manual 2nd - from Drive, Manual 3rd

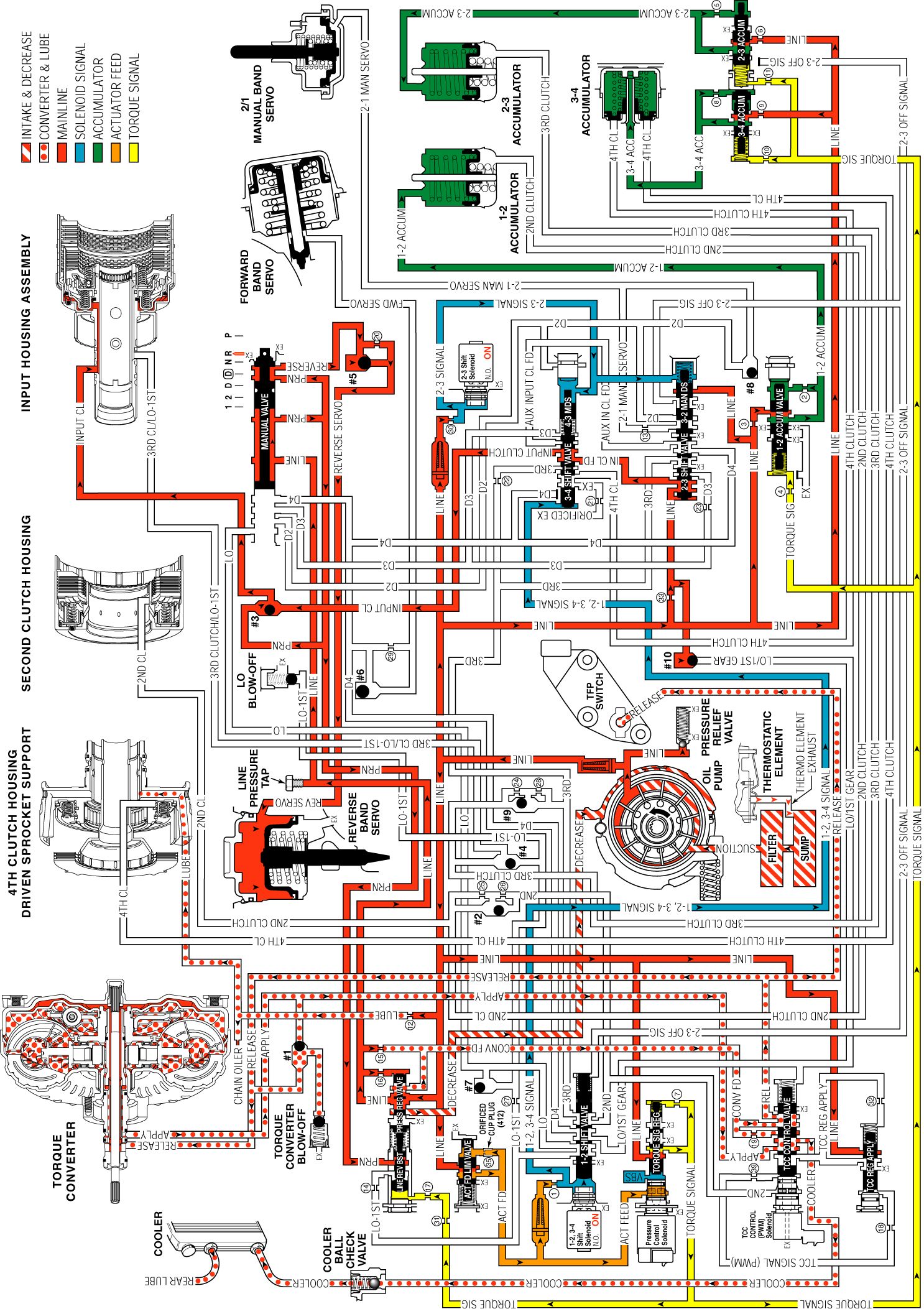

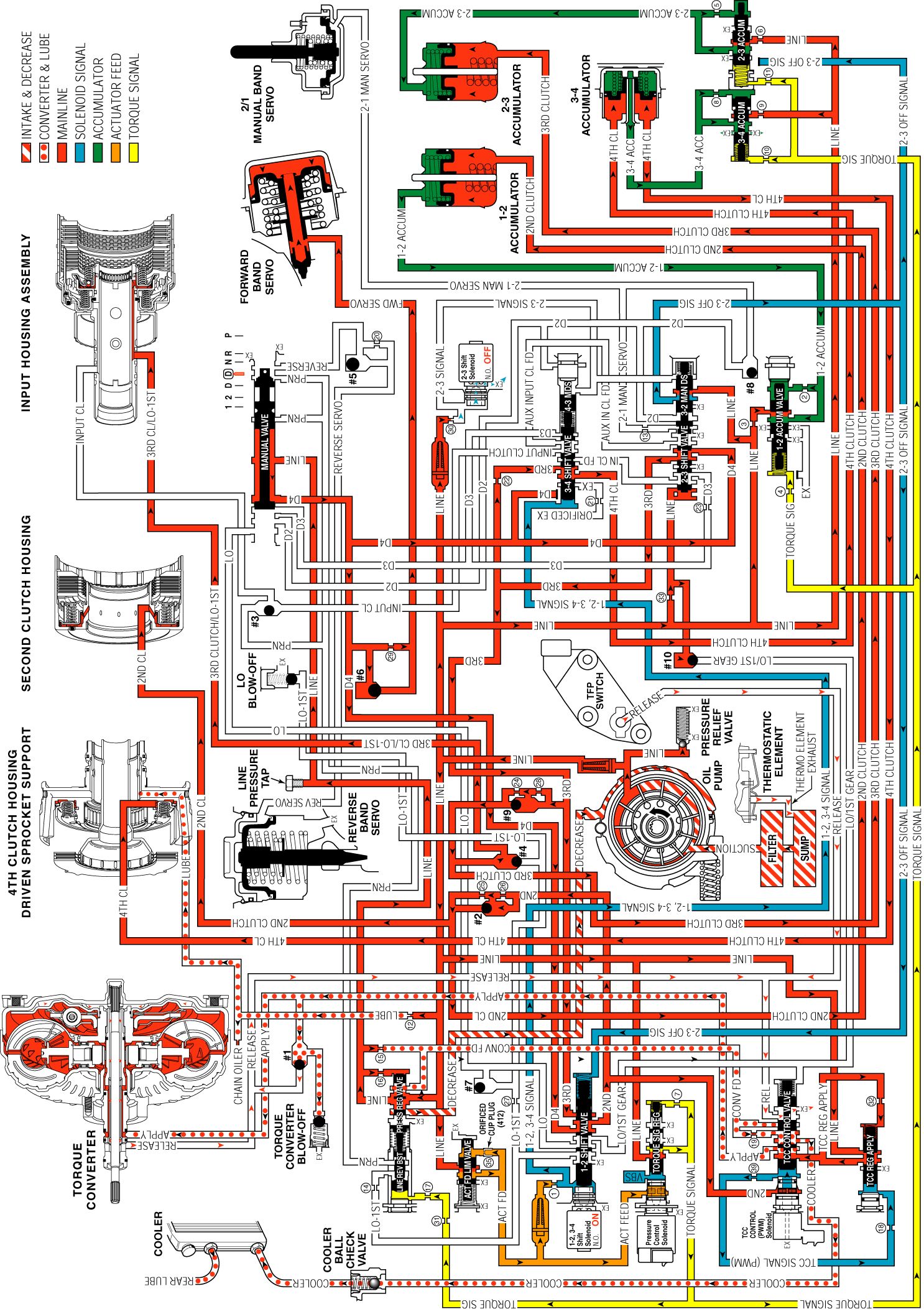

Drive Range, Manual 1st - from Drive, Manual 2nd

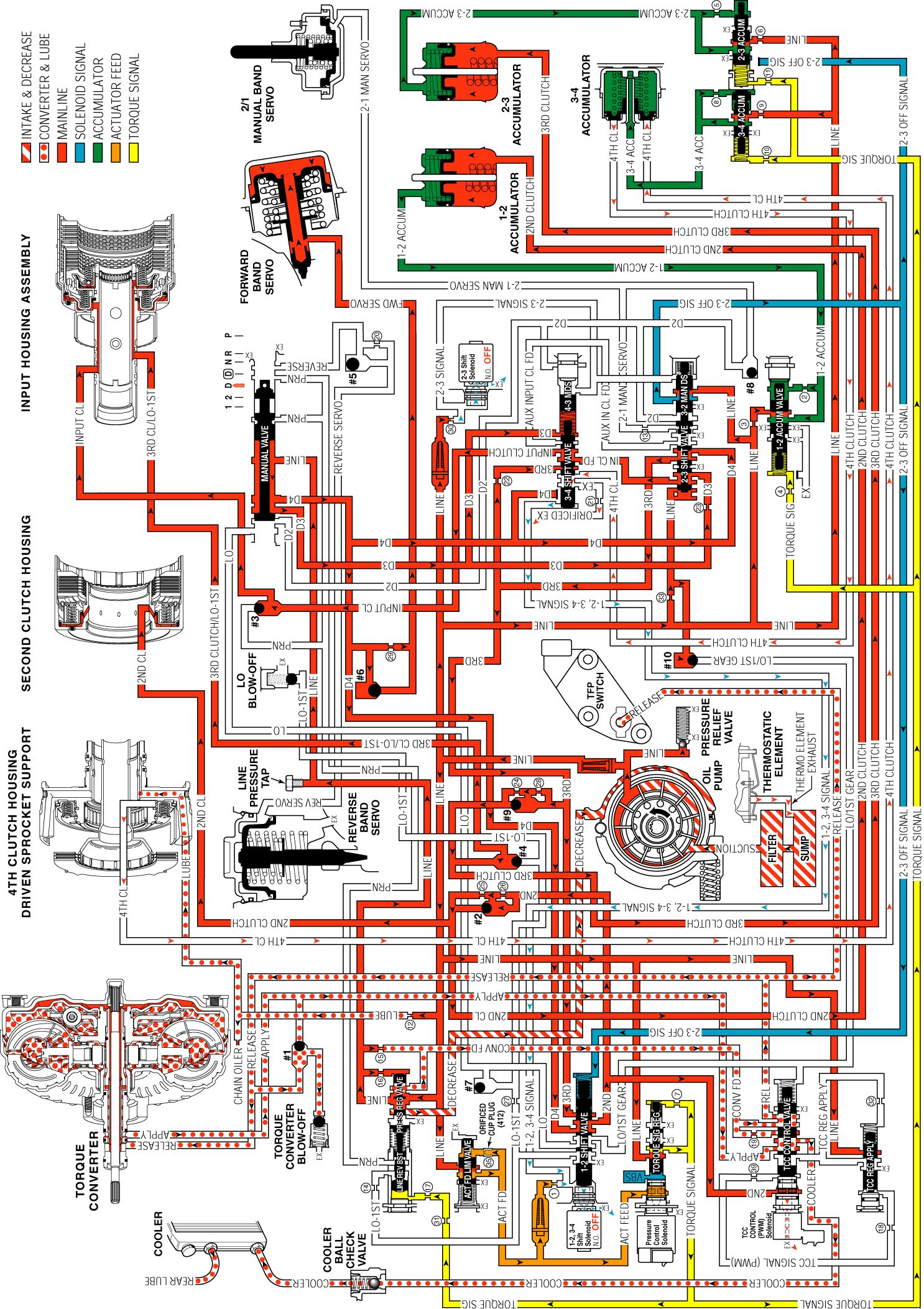

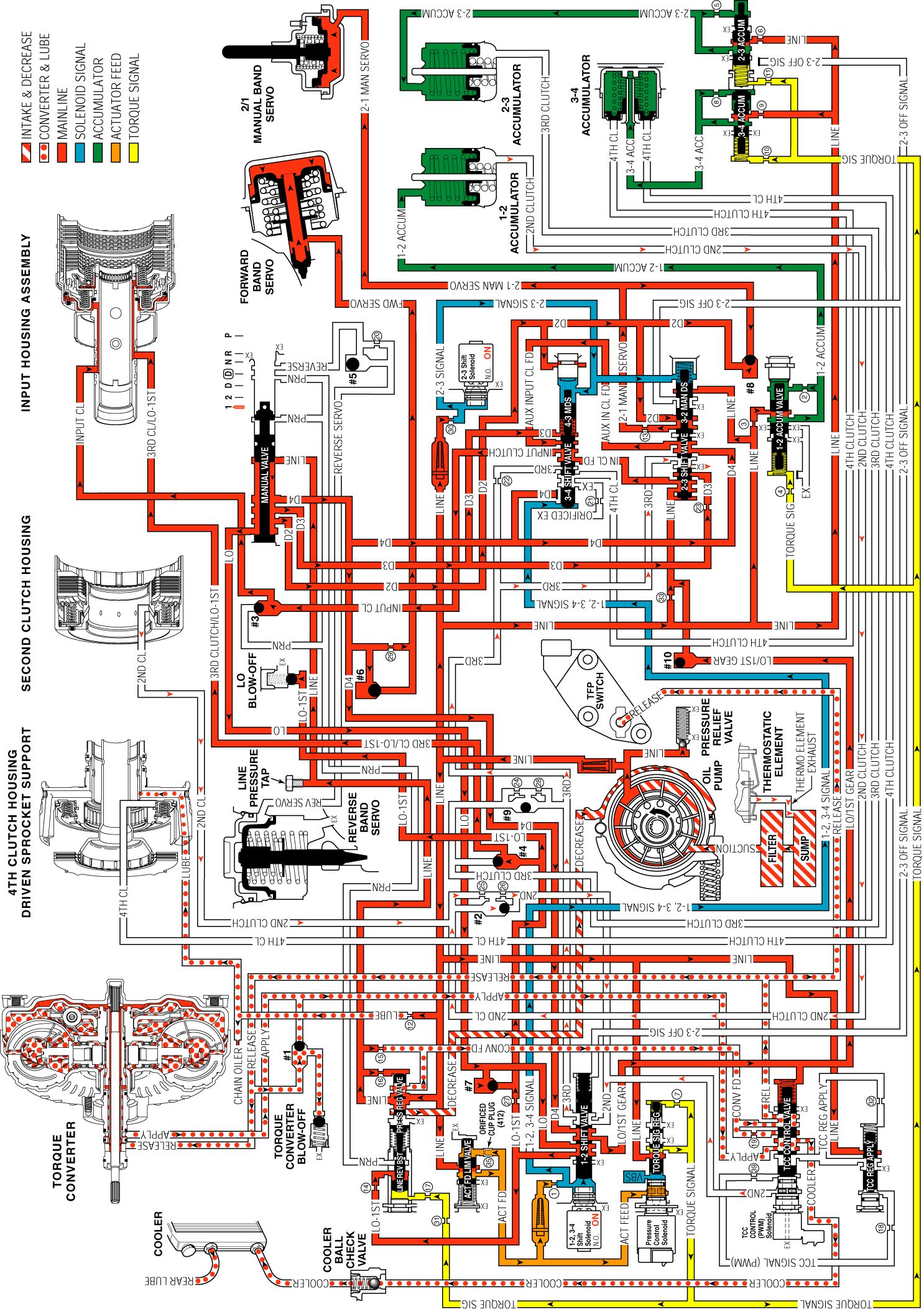

Overdrive Range, First Gear

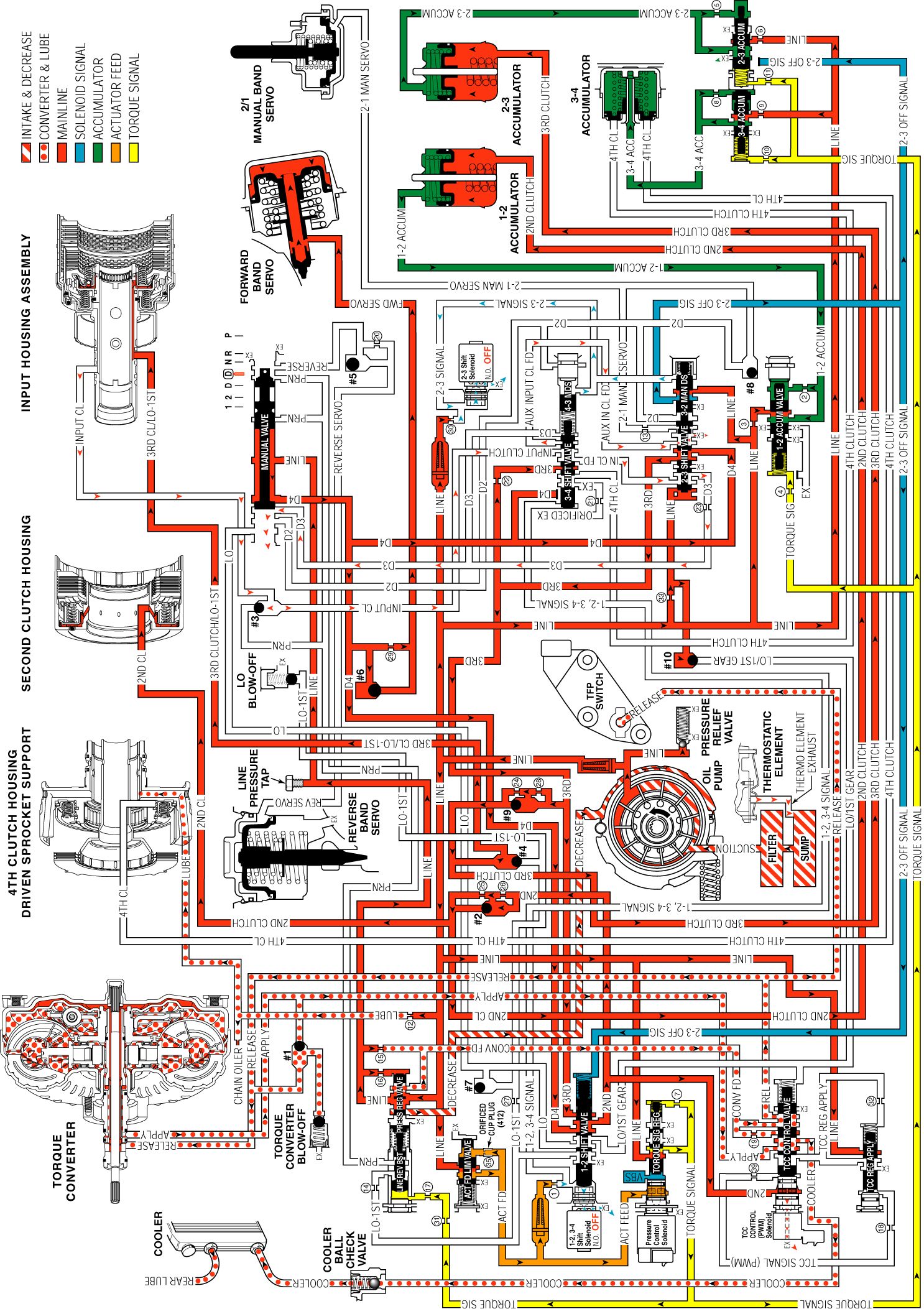

Overdrive Range, Fourth Gear - TCC Applied

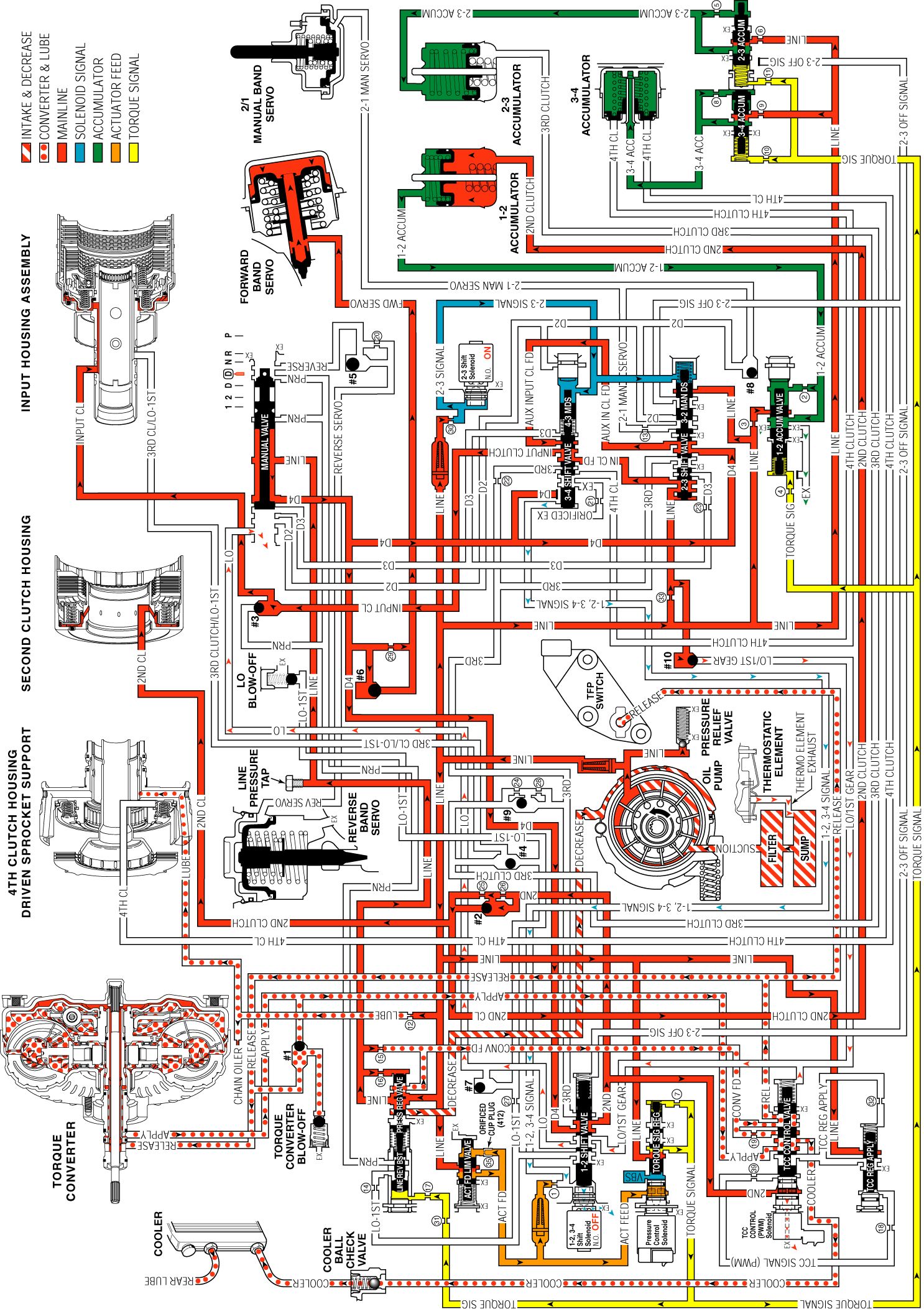

Overdrive Range, Fourth Gear - TCC Not Applied

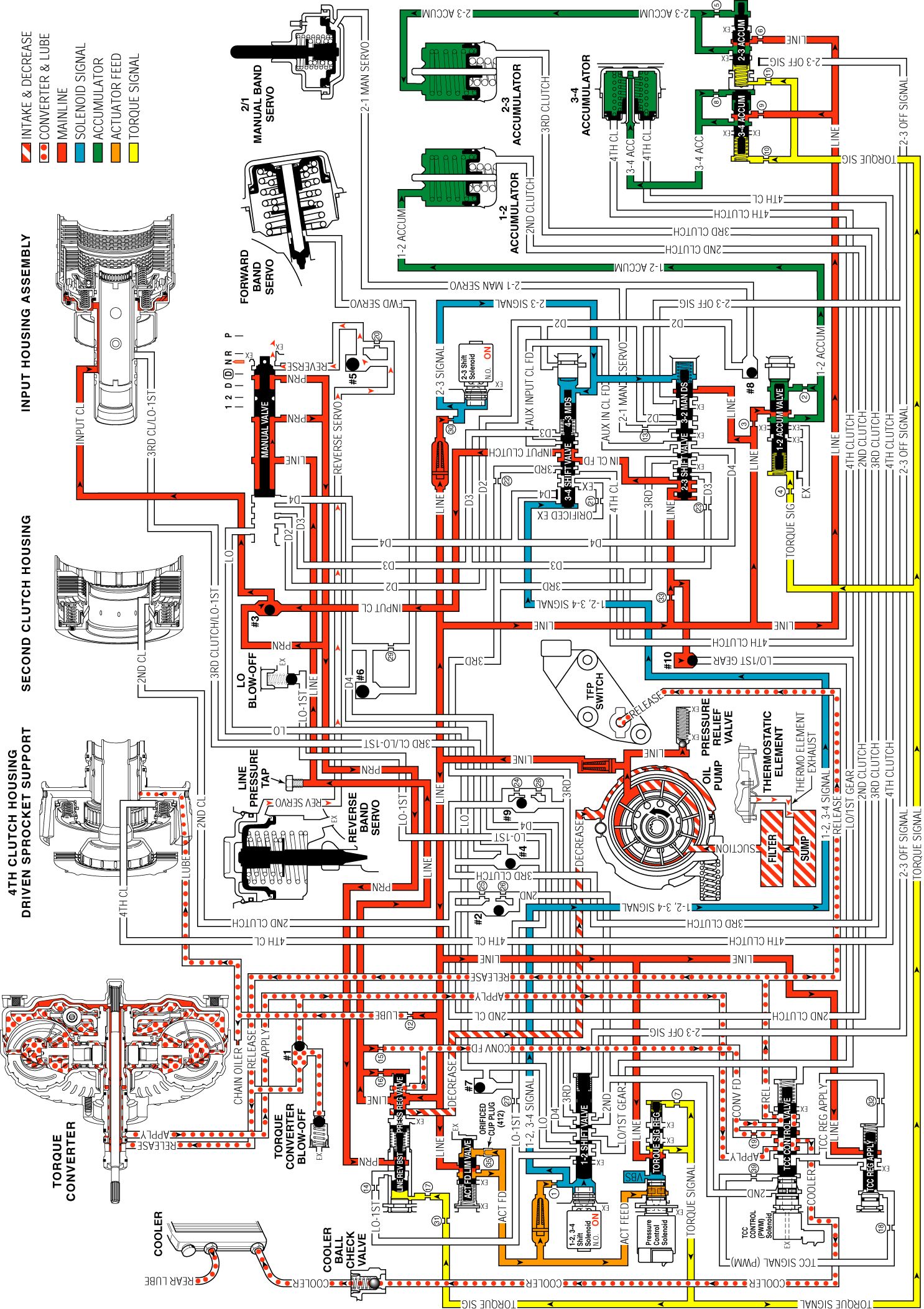

Overdrive Range, Second Gear

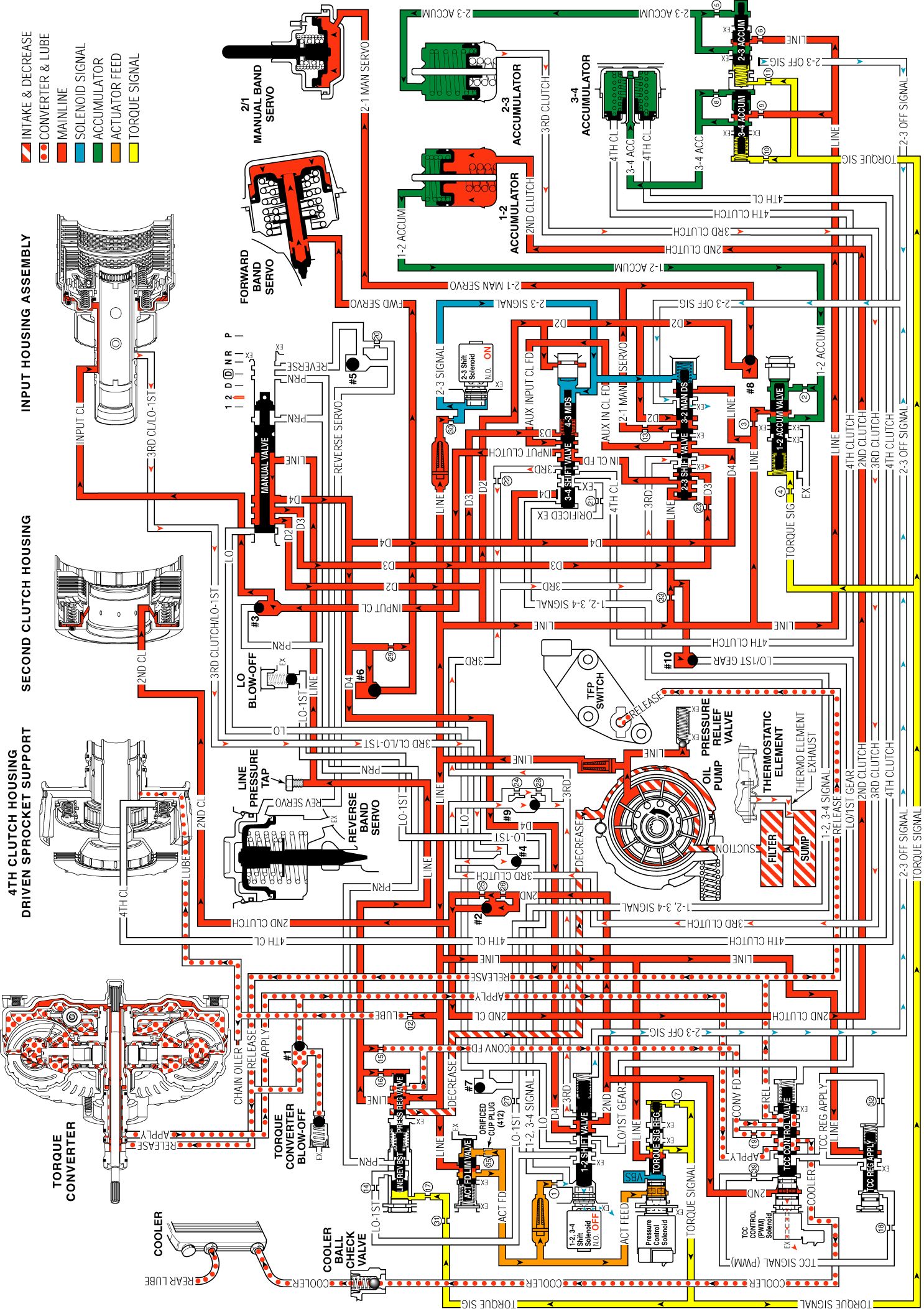

Overdrive Range, 4-3 Downshift - TCC Not Applied





Overdrive Range, Third Gear - Torque Converter Clutch (TCC) Not Applied





Neutral - Engine Running





Park - Engine Running





Reverse
