Rear Side Door Window Channel Replacement

Rear Side Door Window Channel Replacement

Removal Procedure




1. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement (Service and Repair).
2. Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement (Service and Repair).
3. Position the window in the full down position.

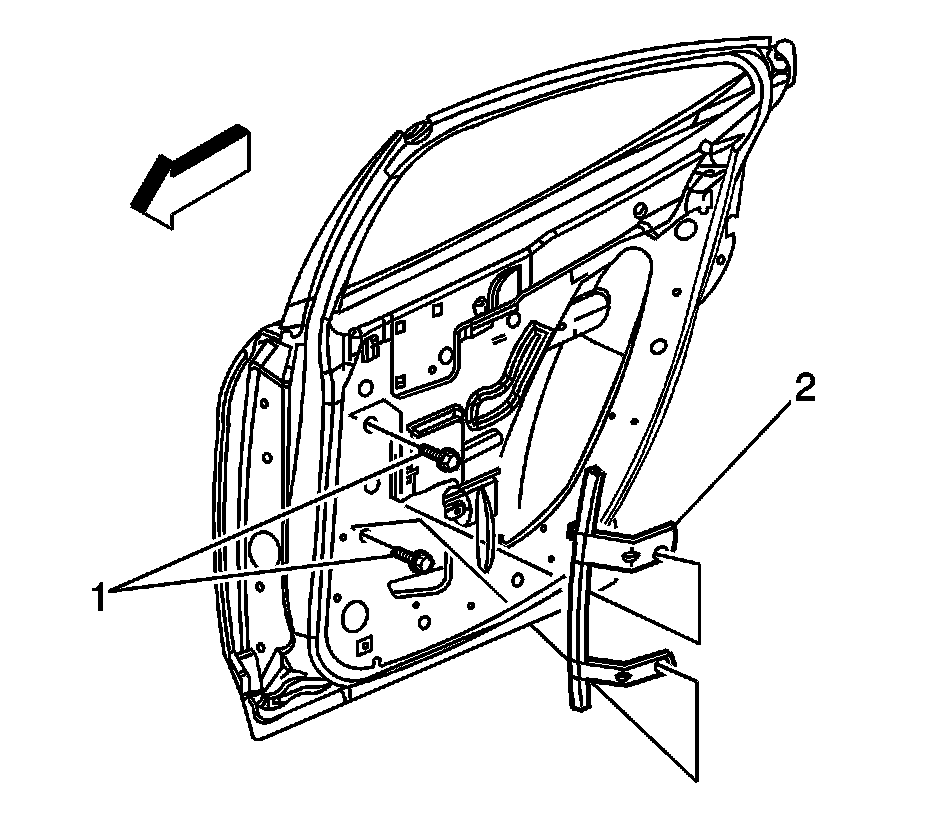

4. Remove the window lower run channel bolts (1).
5. Remove the window lower run channel (2) from the door.

Installation Procedure




1. Install the window lower run channel (2) in the door.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the window lower run channel bolts (1).

Tighten the bolts to 10 Nm (89 lb in).

3. Inspect the window for proper operation.
4. Install the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement (Service and Repair).
5. Install the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement (Service and Repair).
