4T65-E Automatic Transaxle




Automatic Transmission Controls Schematics

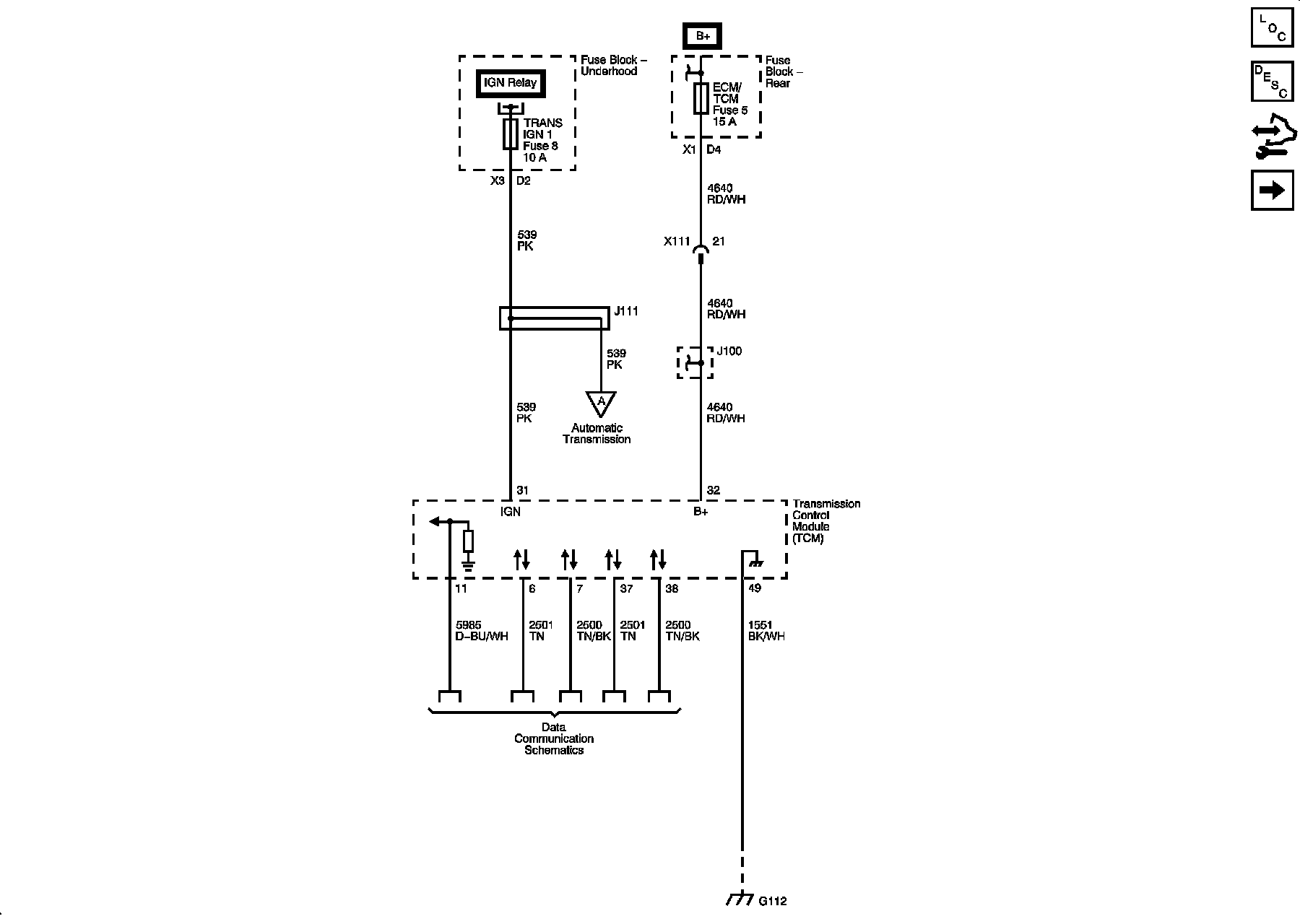

DLC, Ground and Power

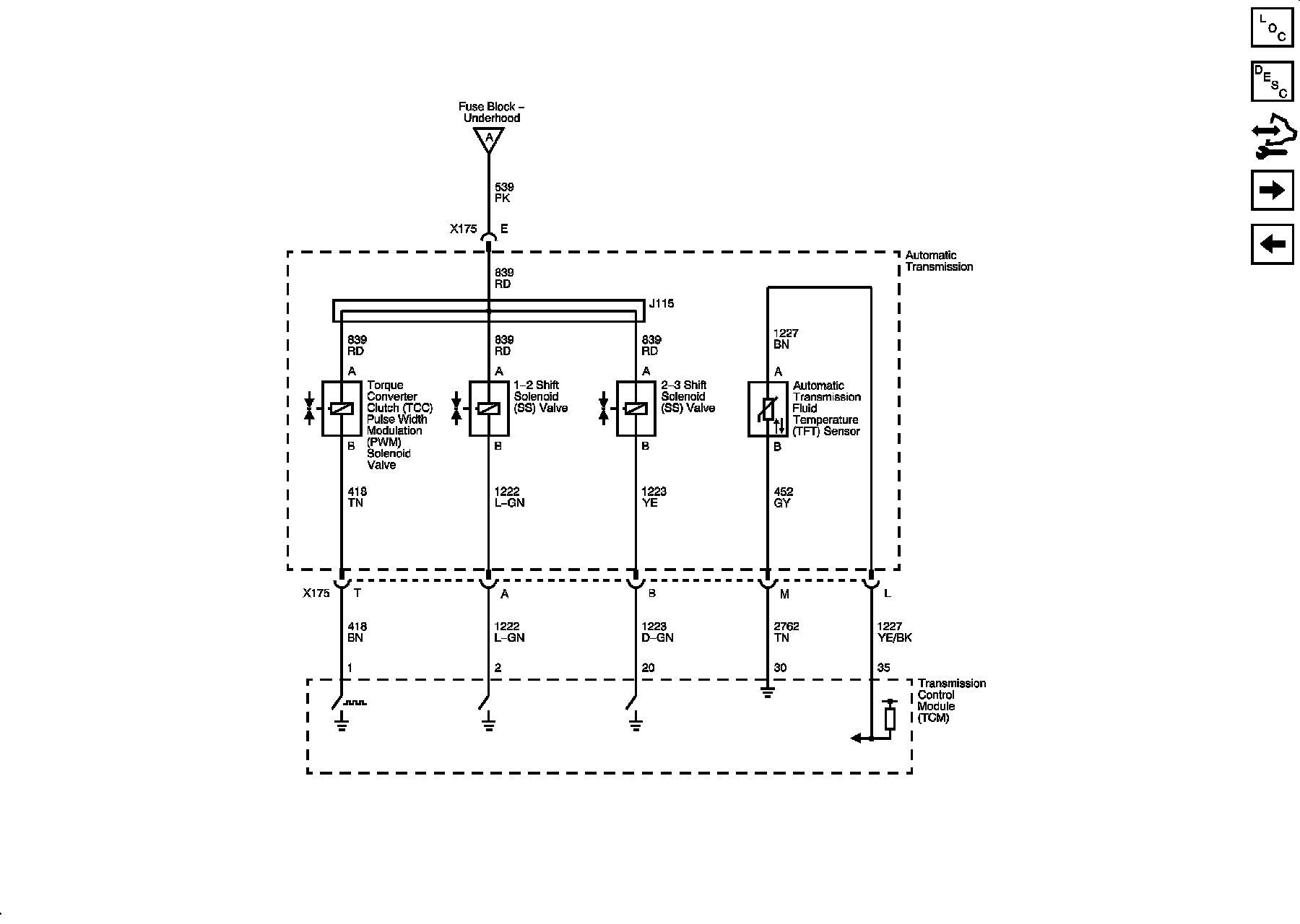

Shift Solenoids, TCC and TFT

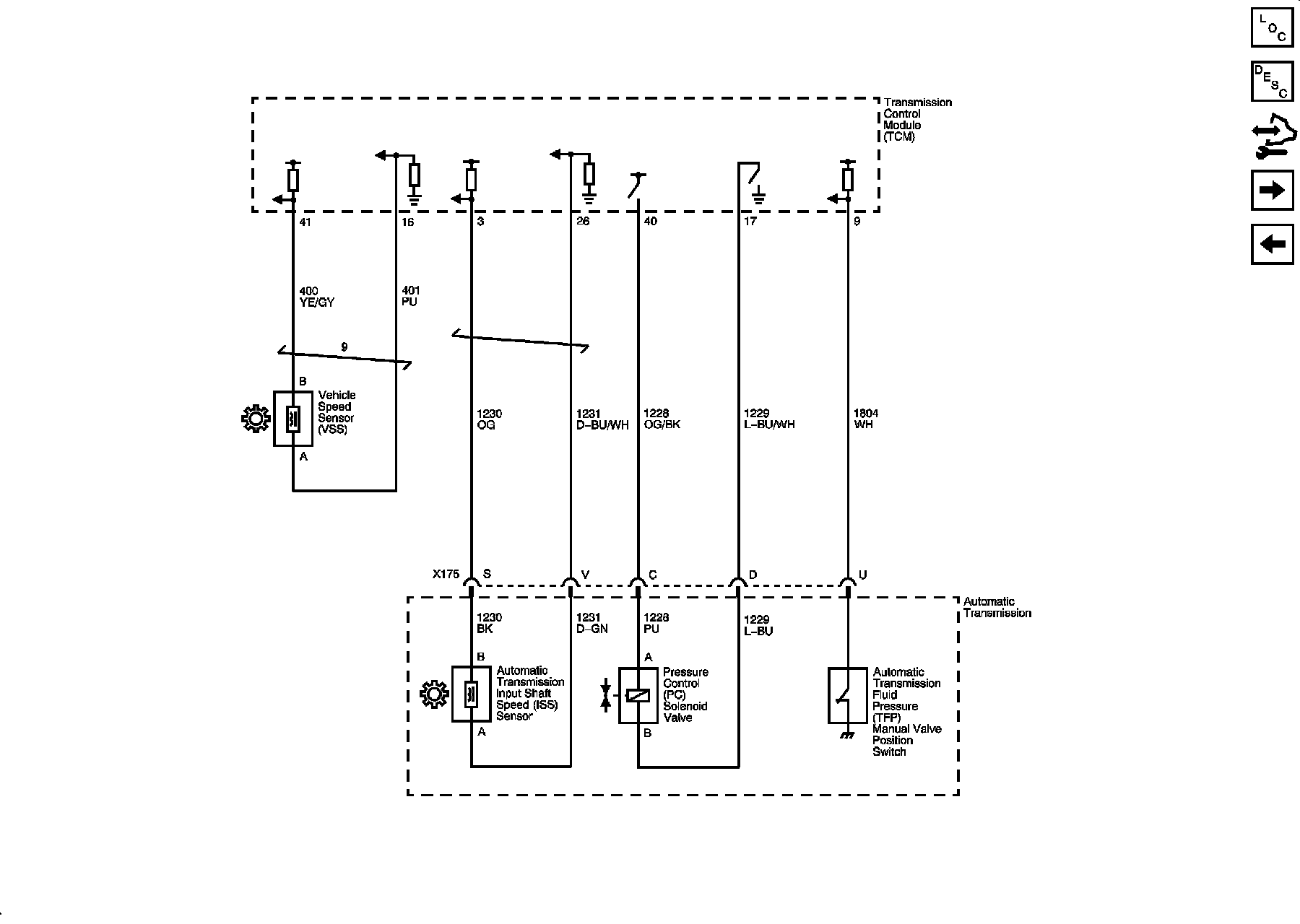

ISS, Pressure Control and VSS

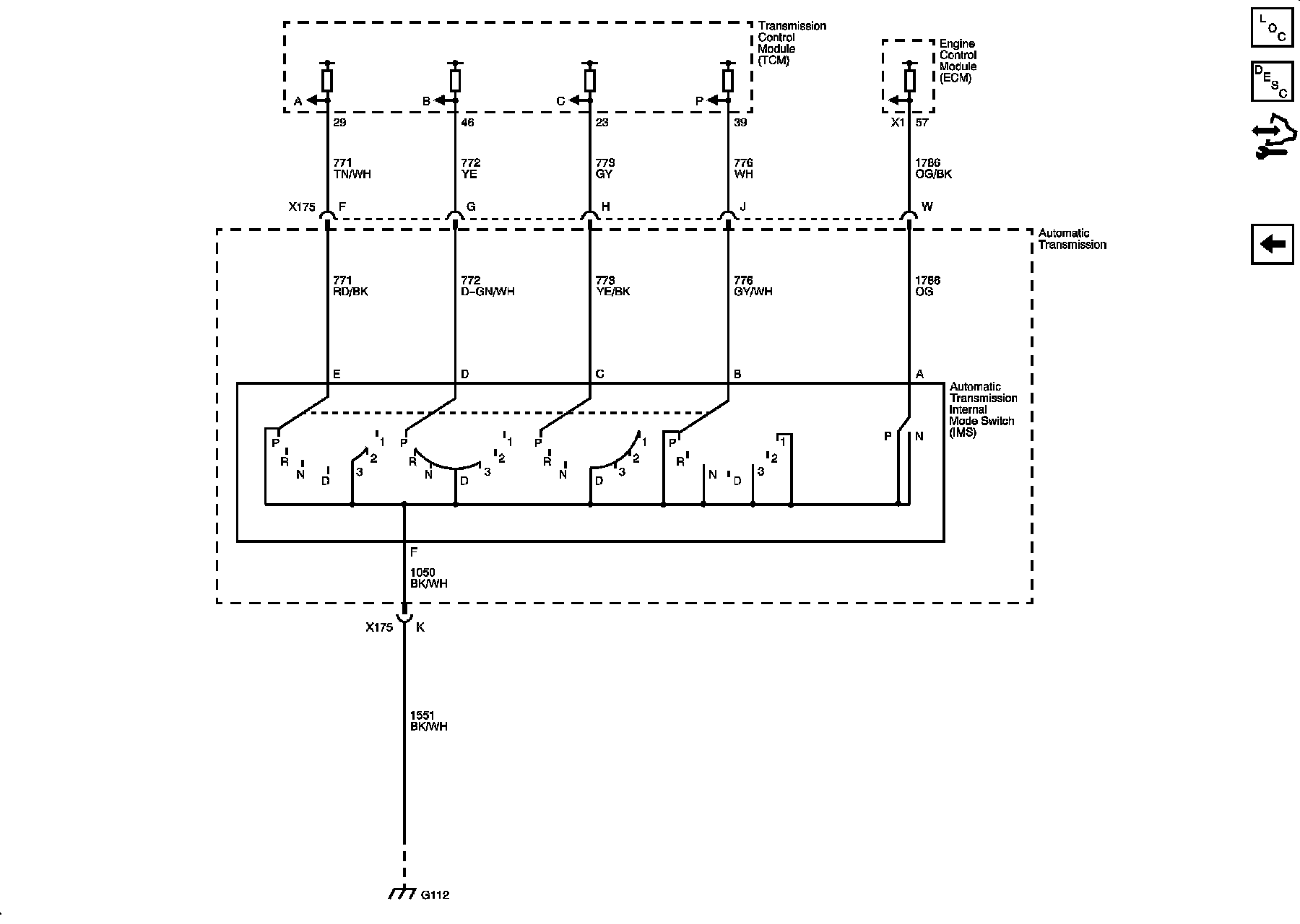

Internal Mode Switch (IMS)
