Output Shaft Removal

Output Shaft Removal




1. Rotate the transmission so that the bottom pan (59) faces down.

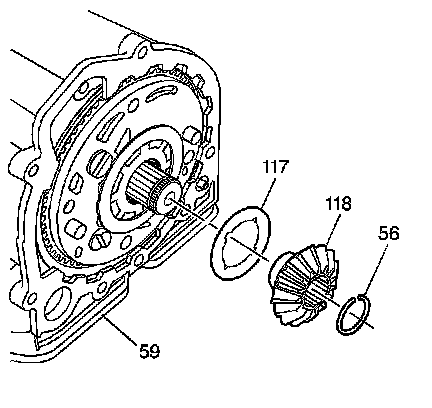

2. Push on the output shaft in order to expose the snap ring. Remove the output shaft snap ring (56).
3. Remove the left side differential gear (118). Remove the thrust washer (117).

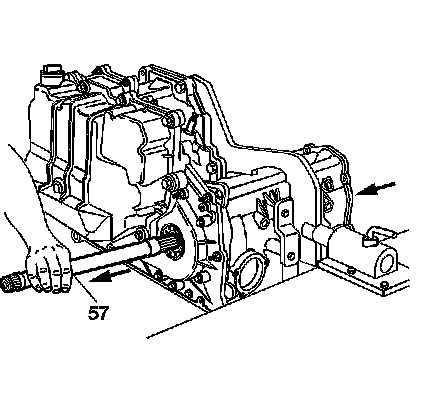

4. Remove the output shaft (57) through the opposite end of the case.
