X380

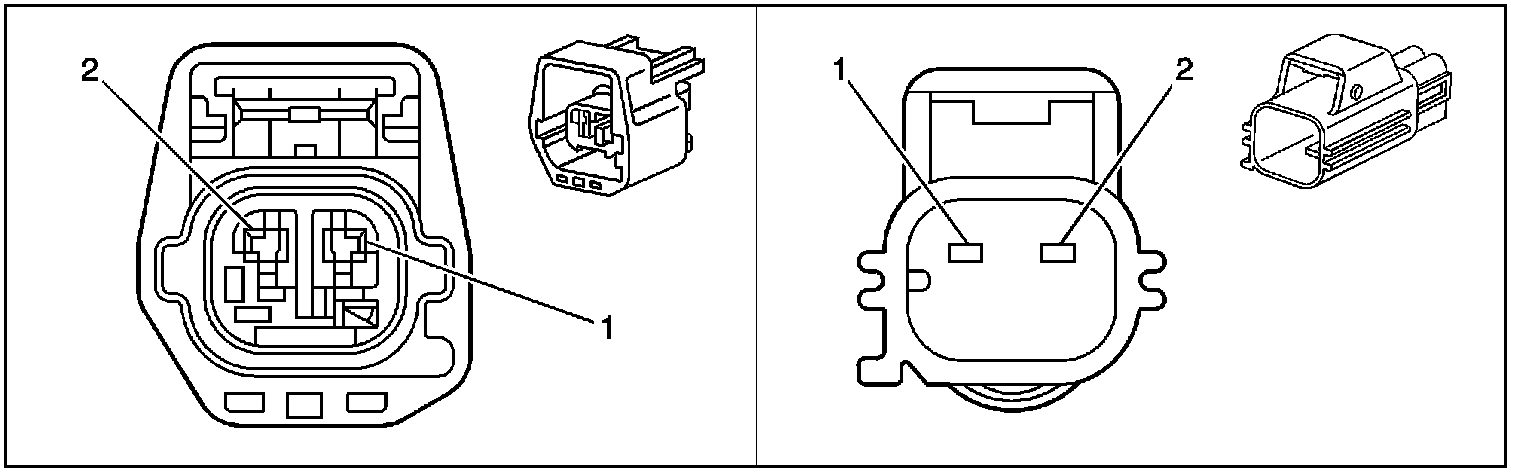

Inline Harness Connector End Views

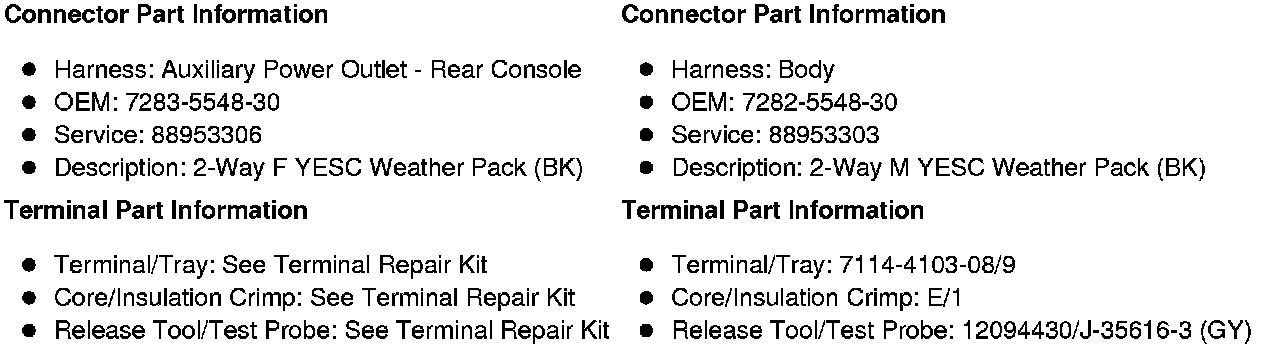

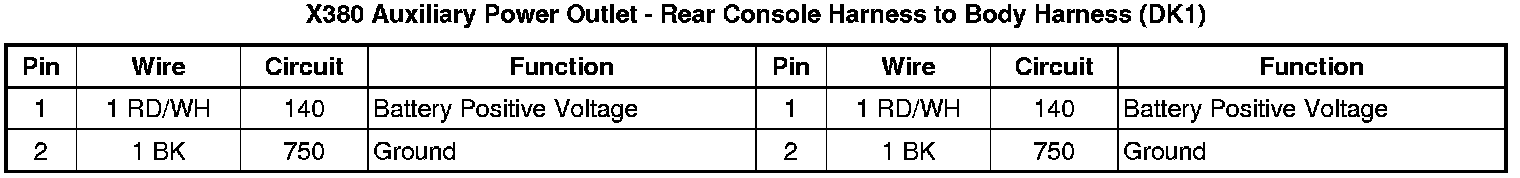

X380 Auxiliary Power Outlet - Rear Console Harness to Body Harness (DK1)
