Seat Front Vertical Motor - Passenger (AG2) M50P
Seat Front Vertical Motor - Passenger (AG2) M50P
Component Connector End Views

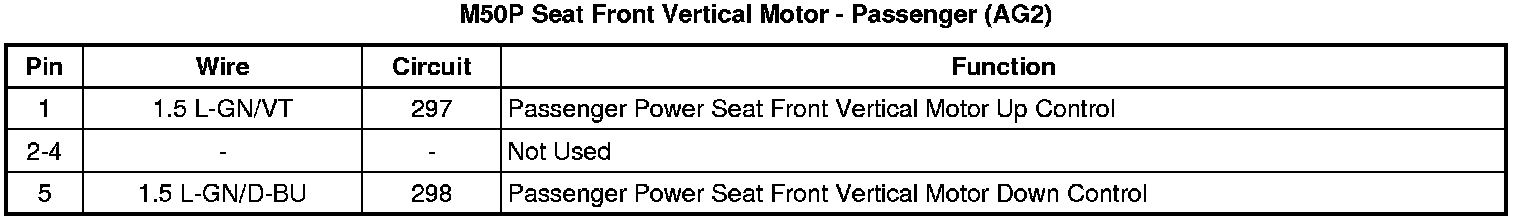

M50P Seat Front Vertical Motor - Passenger (AG2)
