Home
>>
Buick
>>
2011
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Buckle Switch
>>

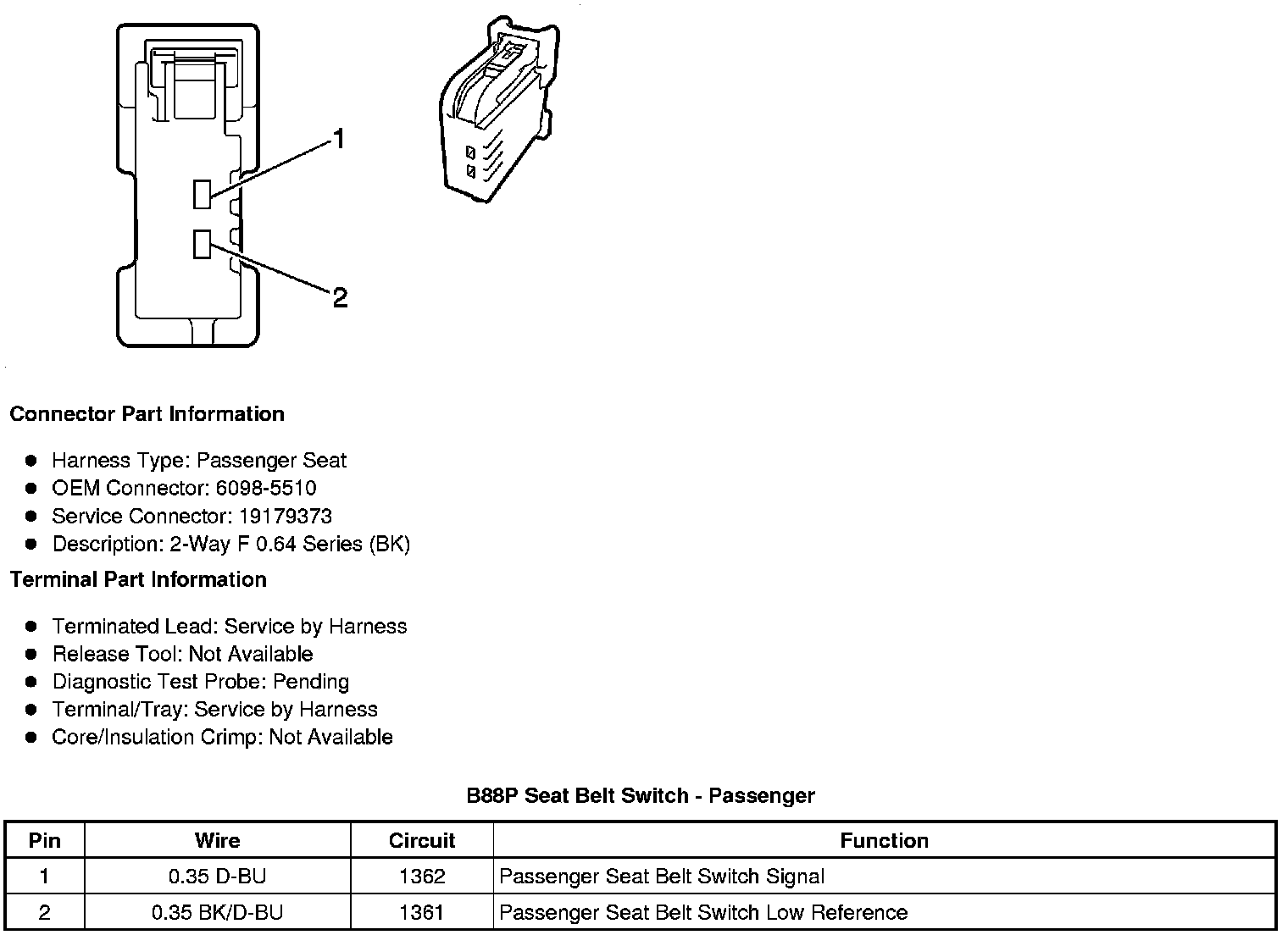

B88P Seat Belt Switch - Passenger
B88P Seat Belt Switch - Passenger
Component Connector End Views
B88P Seat Belt Switch - Passenger
