Steering Angle Sensor
Steering Angle Sensor

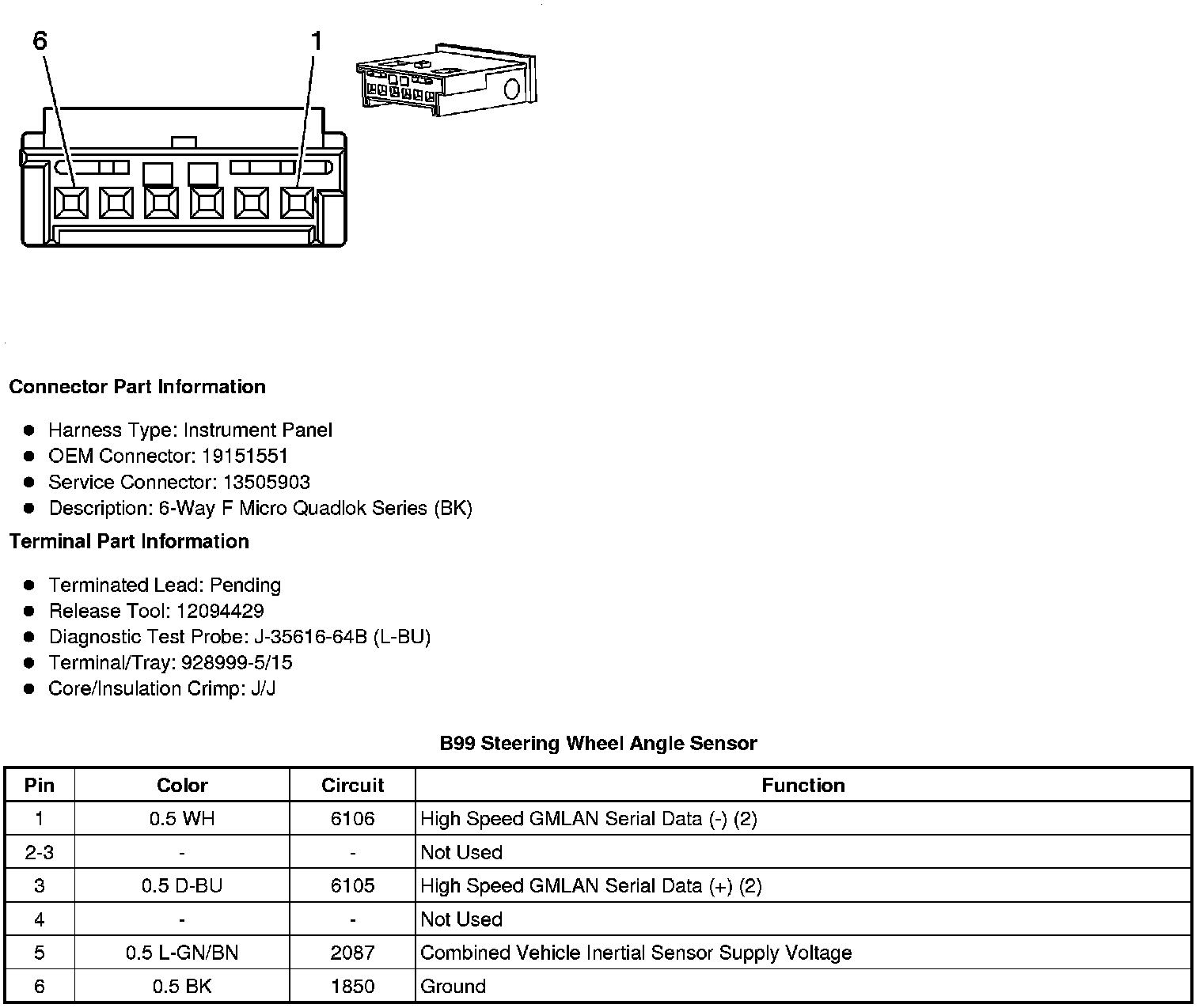

Component Connector End Views
B99 Steering Wheel Angle Sensor
