Operation CHARM
: Car repair manuals for everyone.
Home
>>
Buick
>>
2011
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
>>

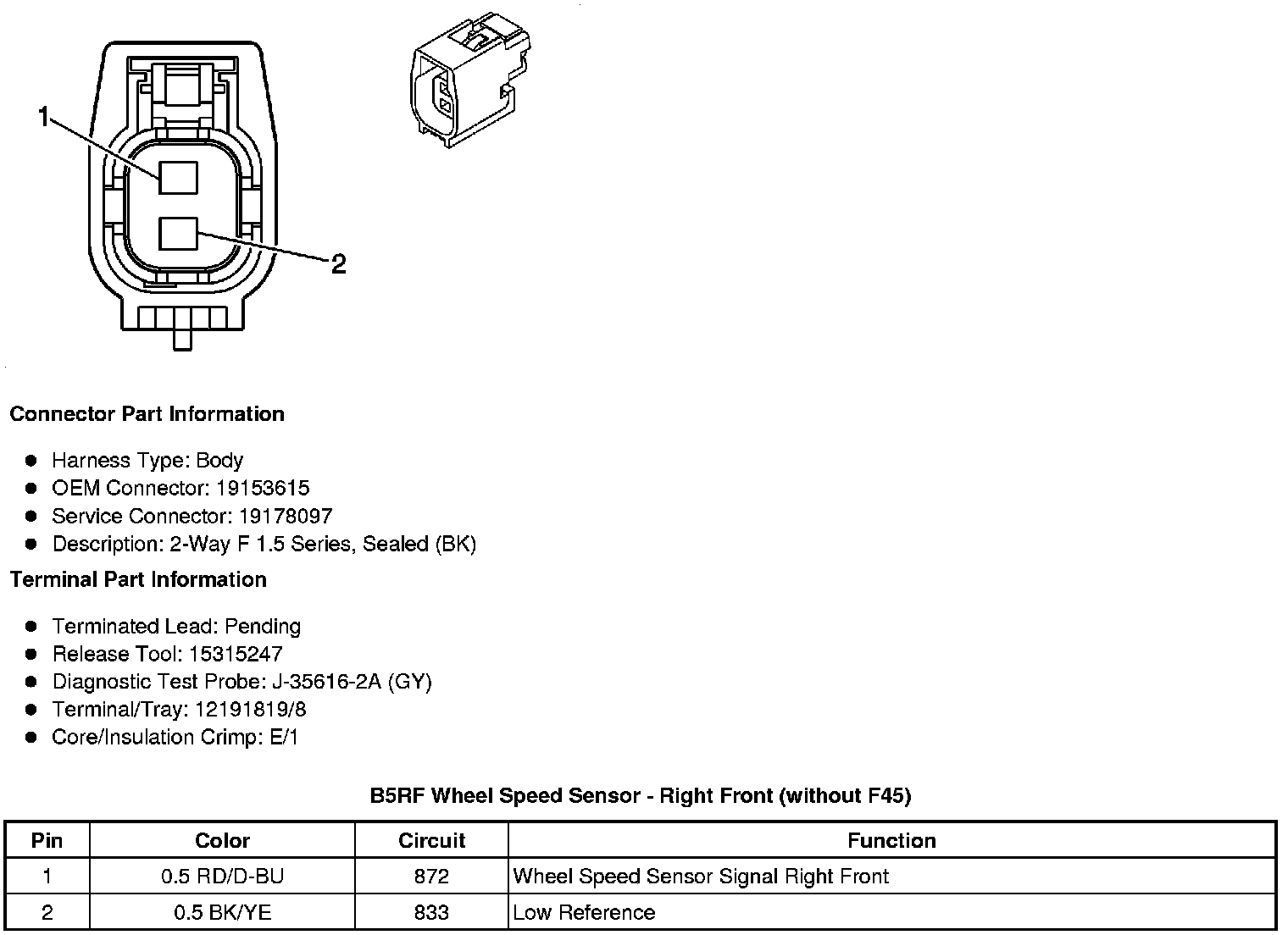

B5RF Wheel Speed Sensor - Right Front (without F45)
B5RF Wheel Speed Sensor - Right Front (without F45)
Component Connector End Views
B5RF
Wheel Speed Sensor
- Right Front (without F45)
