48. Crankshaft Rear Oil Seal Installation

Crankshaft Rear Oil Seal Installation

Special Tools

EN-42067 - Rear Main Seal Installer

For equivalent regional tools, refer to Special Tools (Special Tools).




1. Remove excess sealer from seal recess.
2. Lubricate the outside diameter of the new crankshaft seal with clean engine oil.

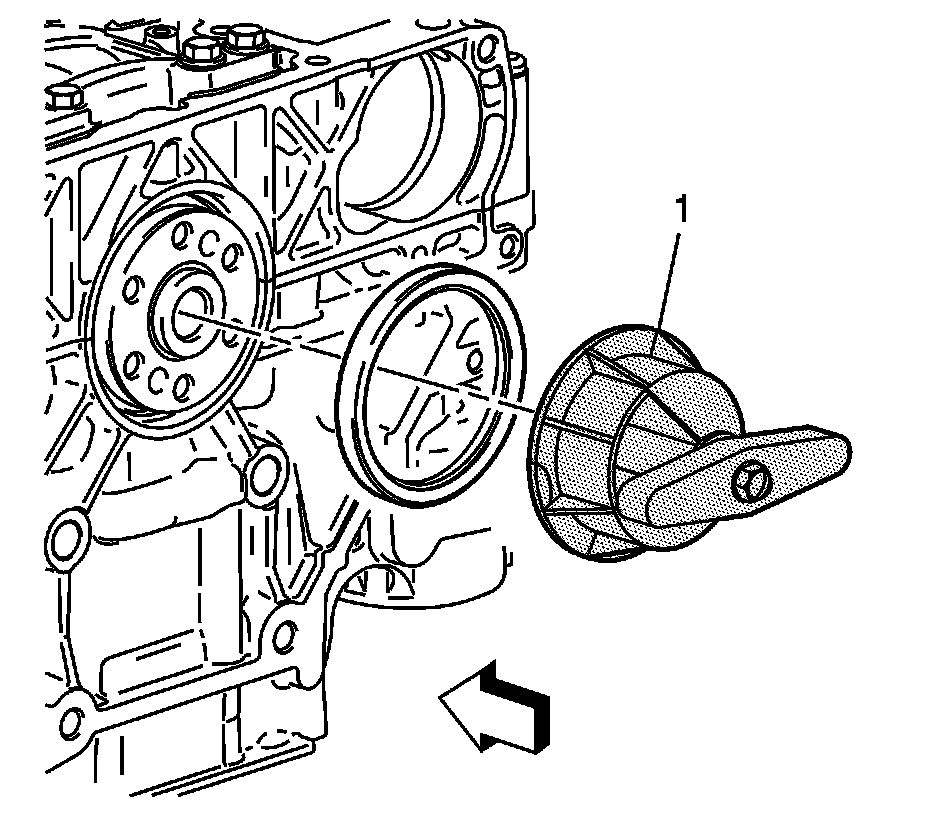

3. Using the EN-42067 - installer (1), press the new crankshaft seal into the housing. The EN-42067 - installer also establishes the depth of the seal in the crankshaft seal bore.
