P06A6
DTC P0641 or P06A6 (FPCM)
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptors
DTC P0641
- 5-Volt Reference Circuit
DTC P06A6
- 5-Volt Reference Performance

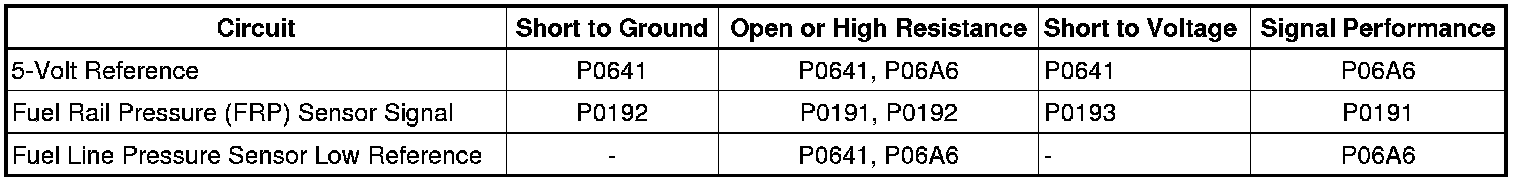

Diagnostic Fault Information
Circuit/System Description
The fuel pressure sensor is mounted on the fuel line. Fuel pressure is measured by the fuel pressure sensor. The fuel pump flow control module (FPCM) monitors the voltage signal from the fuel pressure sensor and also supplies the voltage and the ground of the fuel pressure sensor.
Conditions for Running the DTC
The ignition is on.
Conditions for Setting the DTC
The FPCM detects that the fuel pressure 5-volt reference is above or below a predetermined voltage threshold.
Action Taken When the DTC Sets
DTC P0641 and P06A6 are A type DTCs.
Conditions for Clearing the DTC
DTC P0641 and P06A6 are A type DTCs.
Diagnostic Aids
Using the Failure Records data may help locate an intermittent condition. If you cannot duplicate the DTC, the information in the Failure Records can help determine how many miles since the DTC set. The Fail Counter and Pass Counter can help determine how many ignition cycles that the diagnostic test reported a pass and/or a fail.
Reference Information
Schematic Reference
Engine Controls Schematics [1][2]Electrical Diagrams
Connector End View Reference
Component Connector End Views A/C Compressor Clutch
Description and Operation
Fuel System Description Fuel System Description
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
DTC Type Reference
Powertrain Diagnostic Trouble Code (DTC) Type Definitions Powertrain Diagnostic Trouble Code (DTC) Type Definitions
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Testing
1. Ignition OFF, disconnect the harness connector at the fuel line pressure sensor.
2. Ignition OFF, test for less than 1.0 ohm between the low reference circuit terminal 2 and ground.
• If greater than the specified range, test the low reference circuit for an open/high resistance. If the circuit tests normal, replace the FPCM.
3. Ignition ON, test for 4.8-5.2 volts between the 5-volt reference circuit terminal 3 and ground.
• If less than the specified range, test the 5-volt reference circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the FPCM.
• If greater than the specified range, test the 5-volt reference circuit for a short to voltage. If the circuit tests normal, replace the FPCM.
4. If all circuits test normal, replace the fuel pressure sensor.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
* Fuel Pressure Sensor Replacement - Fuel Feed Pipe Fuel Pressure Sensor Replacement - Fuel Feed Pipe
* Fuel Pressure Sensor Replacement - Fuel Injection Fuel Rail Fuel Pressure Sensor Replacement - Fuel Injection Fuel Rail
* Control Module References Control Module References for FPCM replacement, setup, and programming
