Home >> Buick >> 2013 >> Enclave FWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Diagrams >> Electrical Diagrams >> Seat Back Temperature Sensors and Cooling

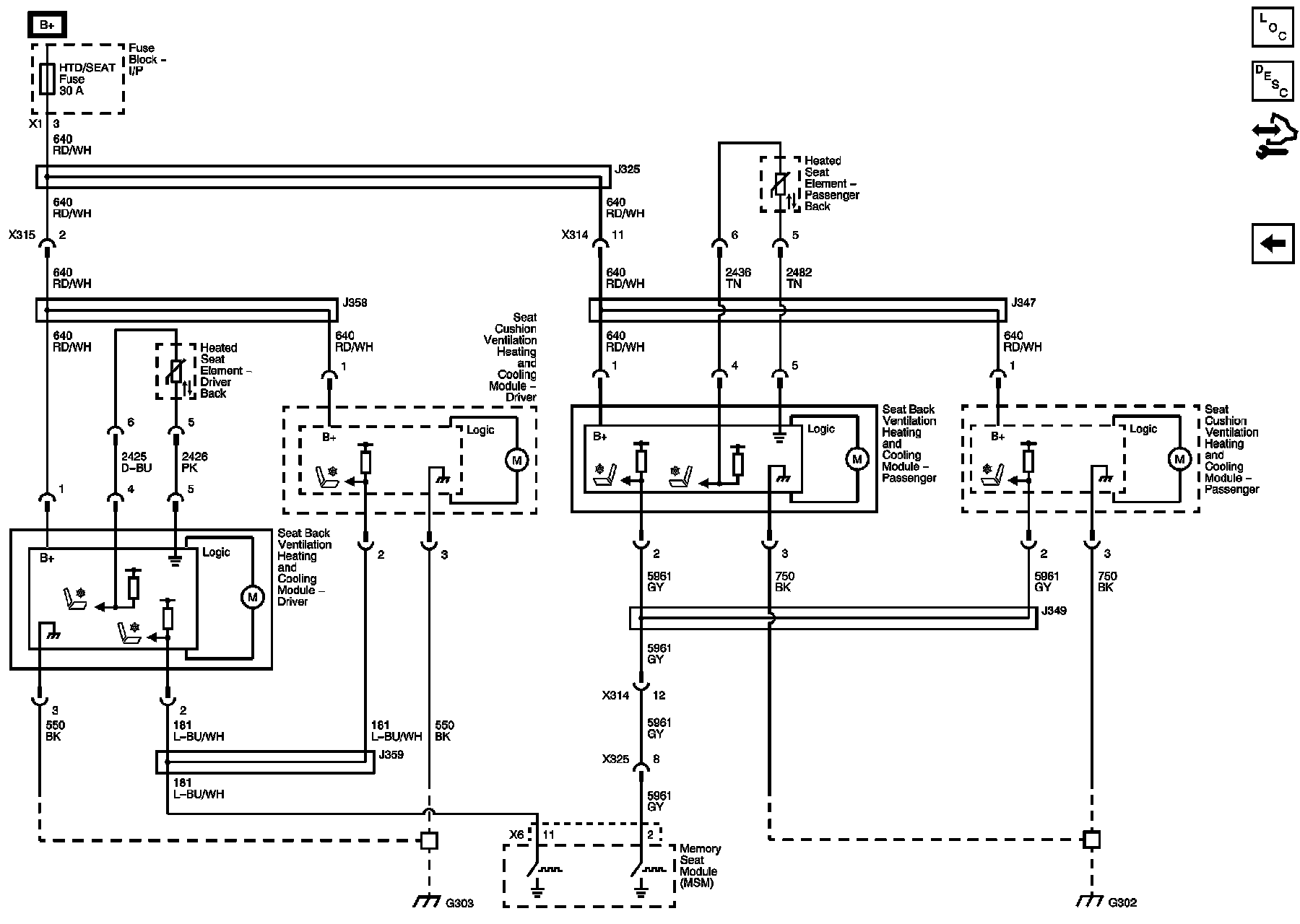

Seat Back Temperature Sensors and Cooling




Seat Back Temperature Sensors and Cooling
