Wheel Speed Sensor - Right Rear

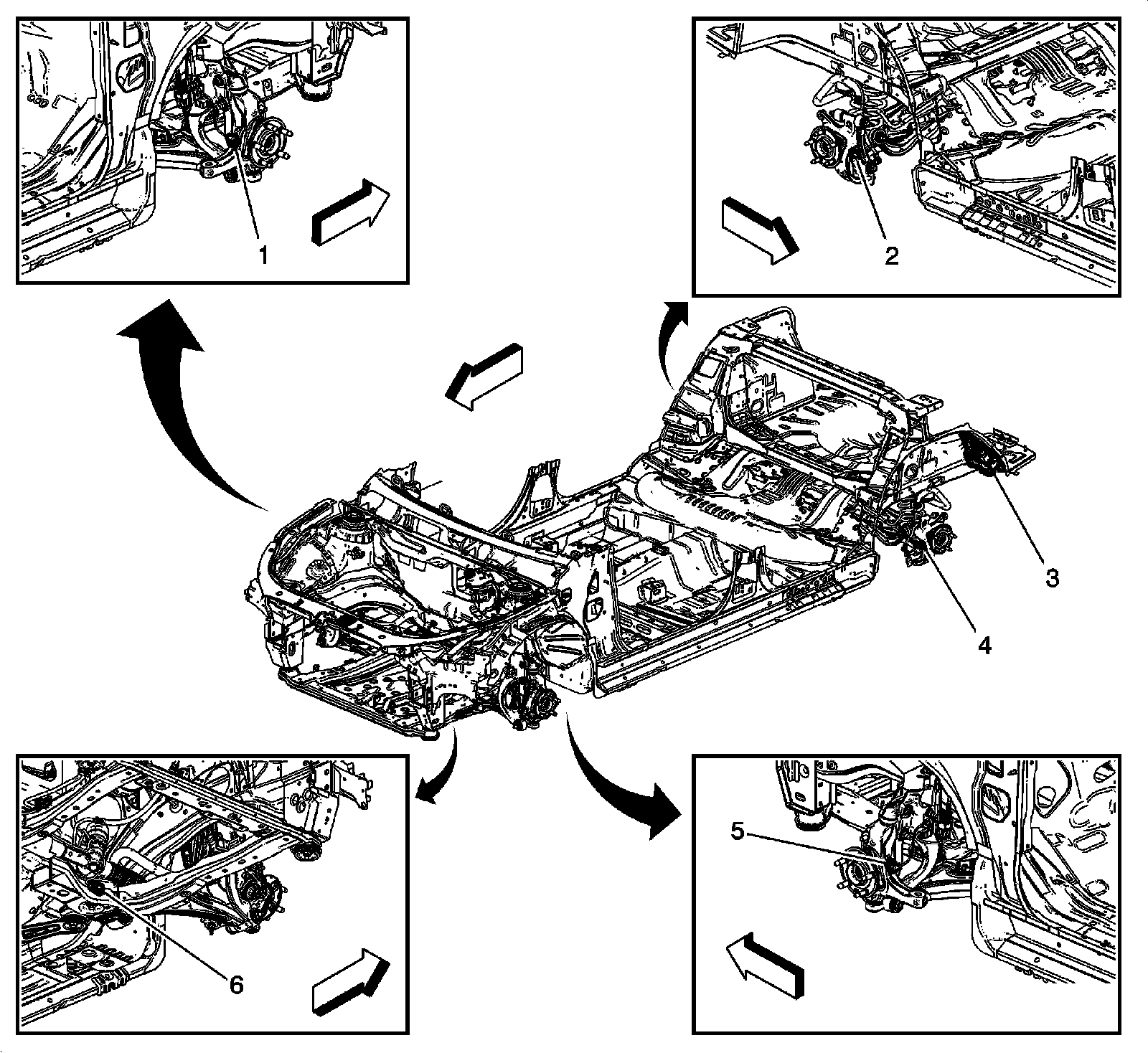

Wheels/Vehicle Underbody Component Views

Underbody Components





1 - B5RF Wheel Speed Sensor - Right Front

2 - B5RR Wheel Speed Sensor - Right Rear

3 - K83 Parking Brake Control Module

4 - B5LR Wheel Speed Sensor - Left Rear

5 - B5LF Wheel Speed Sensor - Left Front

6 - M72 Variable Power Steering Solenoid Valve (NV7)
