Headlamp Horizontal Motor - Left (T4F)

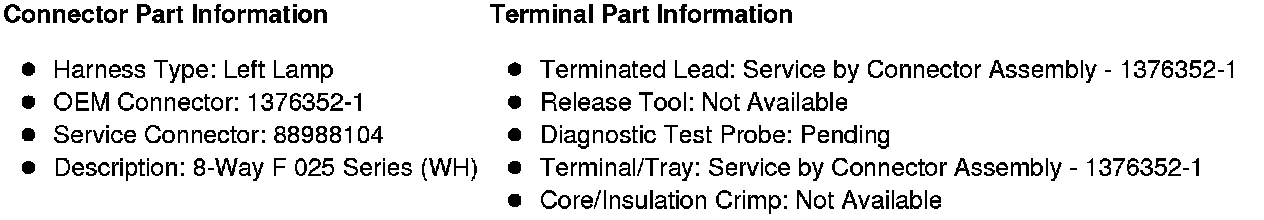

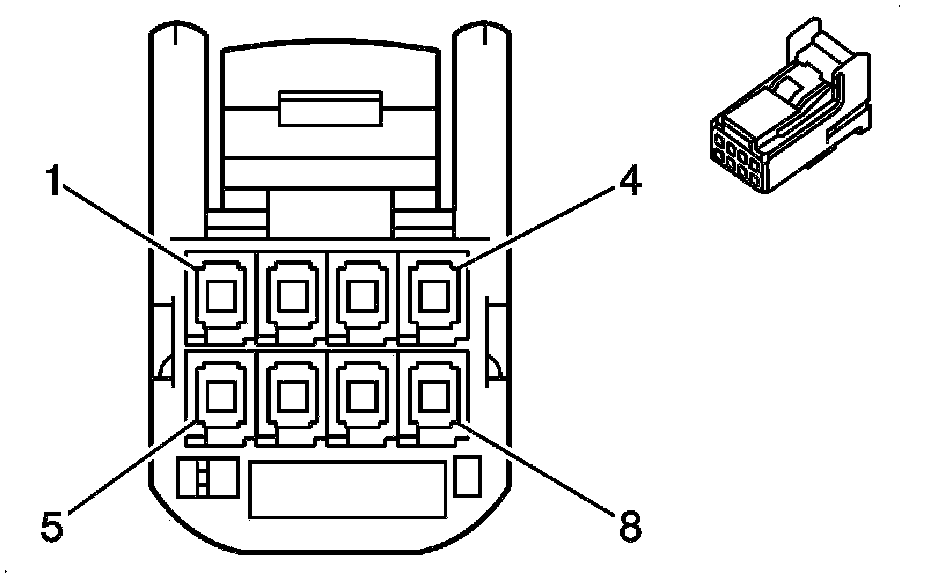

Component Connector End Views

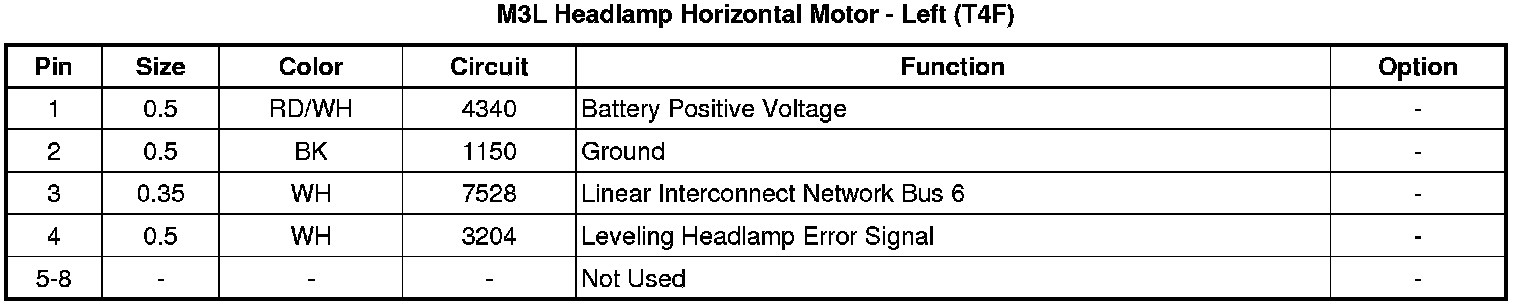

M3L Headlamp Horizontal Motor - Left (T4F)
















Component Connector End Views

M3L Headlamp Horizontal Motor - Left (T4F)
