Keyless Entry Control Module X2 (BTM)

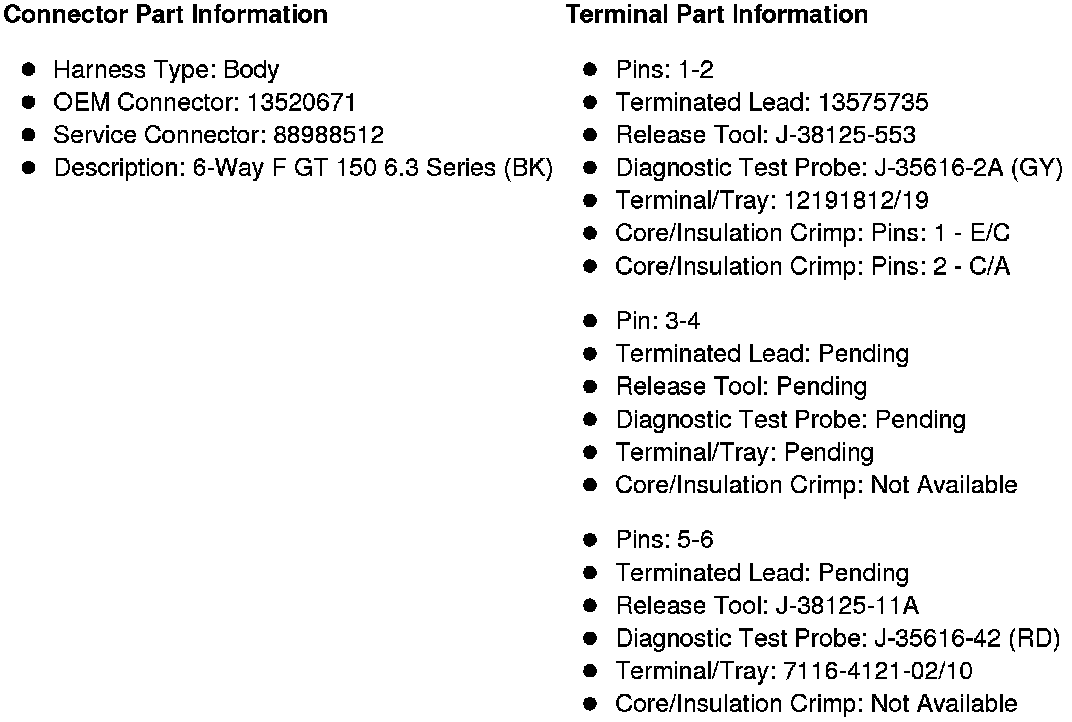

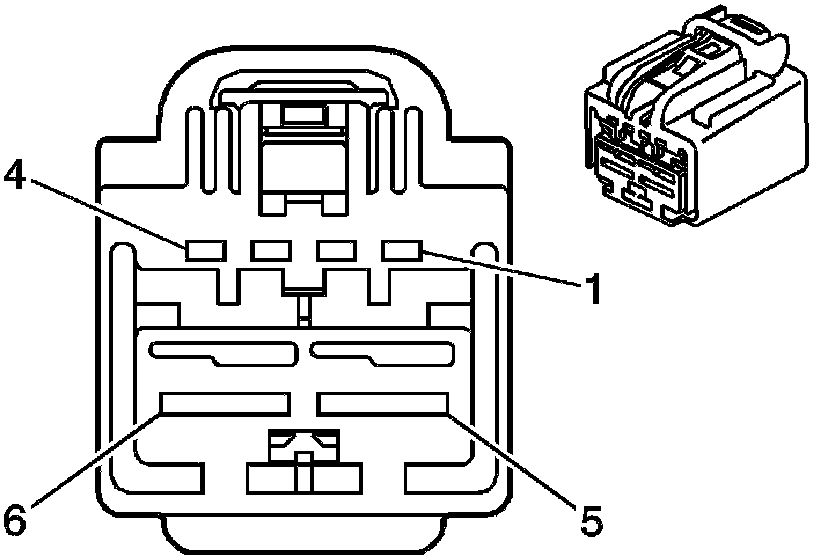

Component Connector End Views

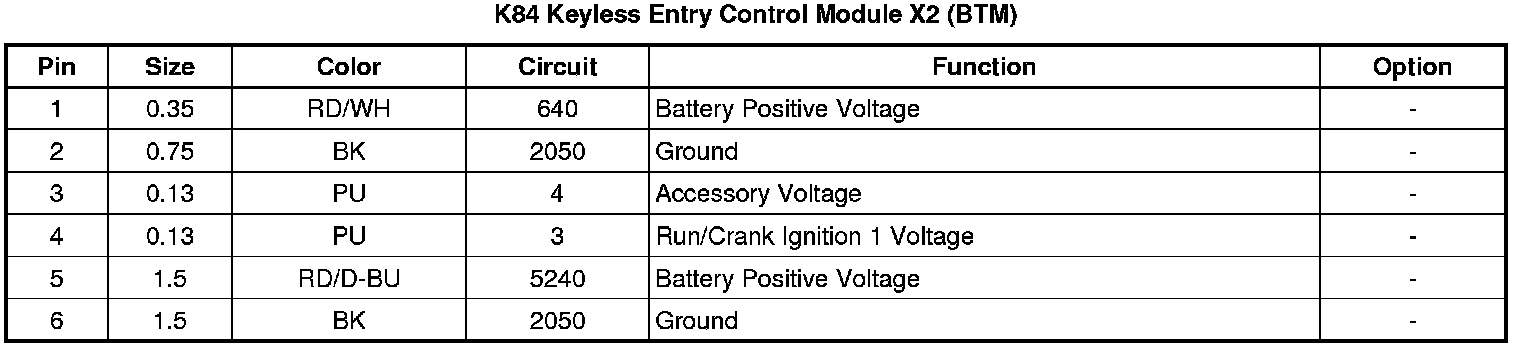

K84 Keyless Entry Control Module X2 (BTM)
