Door Lock/Indicator Schematics
Door Lock/Indicator Schematics
Door Lock/Indicator Schematics
Switches and Indicators
Actuators (without ATH)

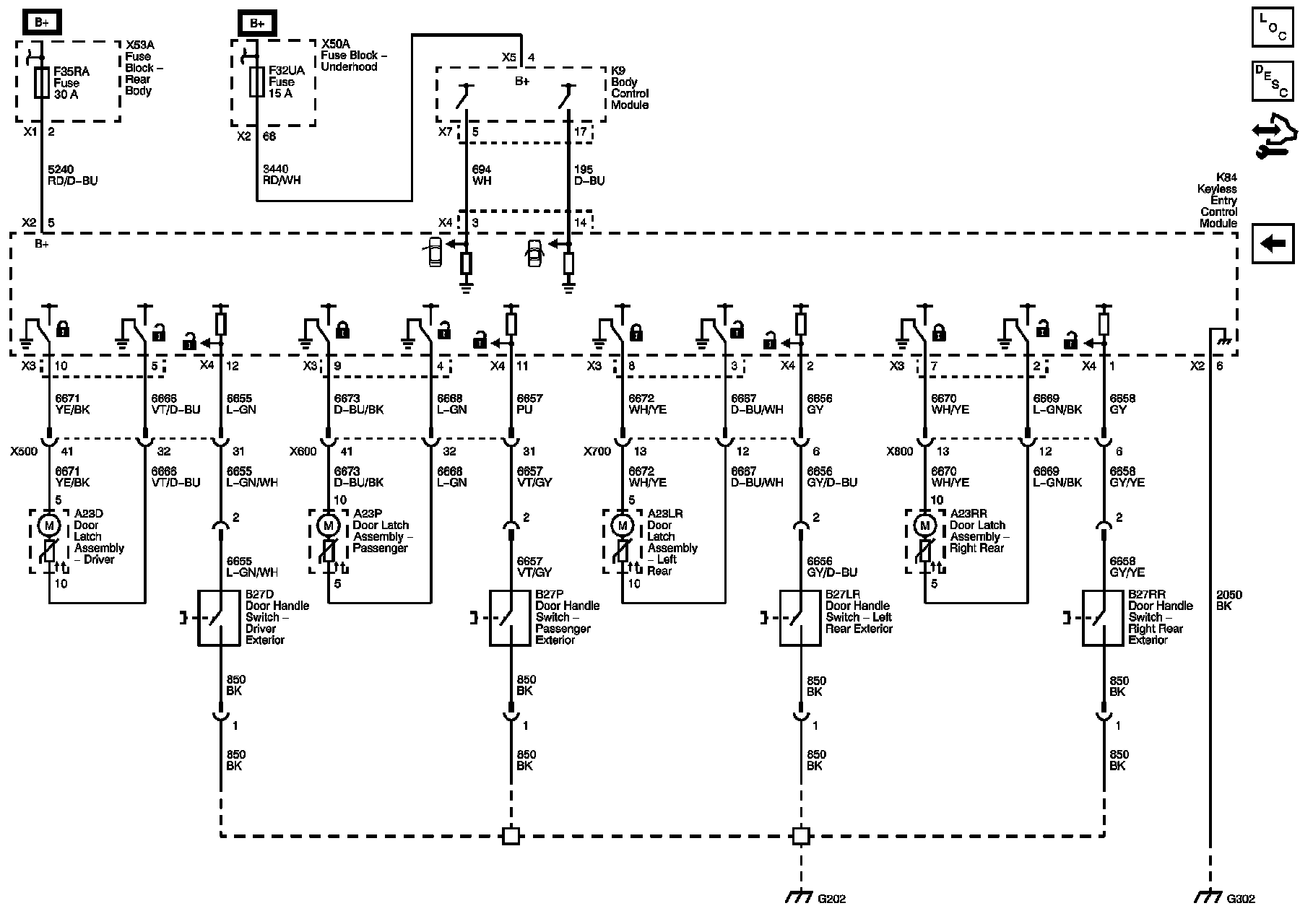

Passive Entry (ATH)
