G305




Ground Distribution Schematics

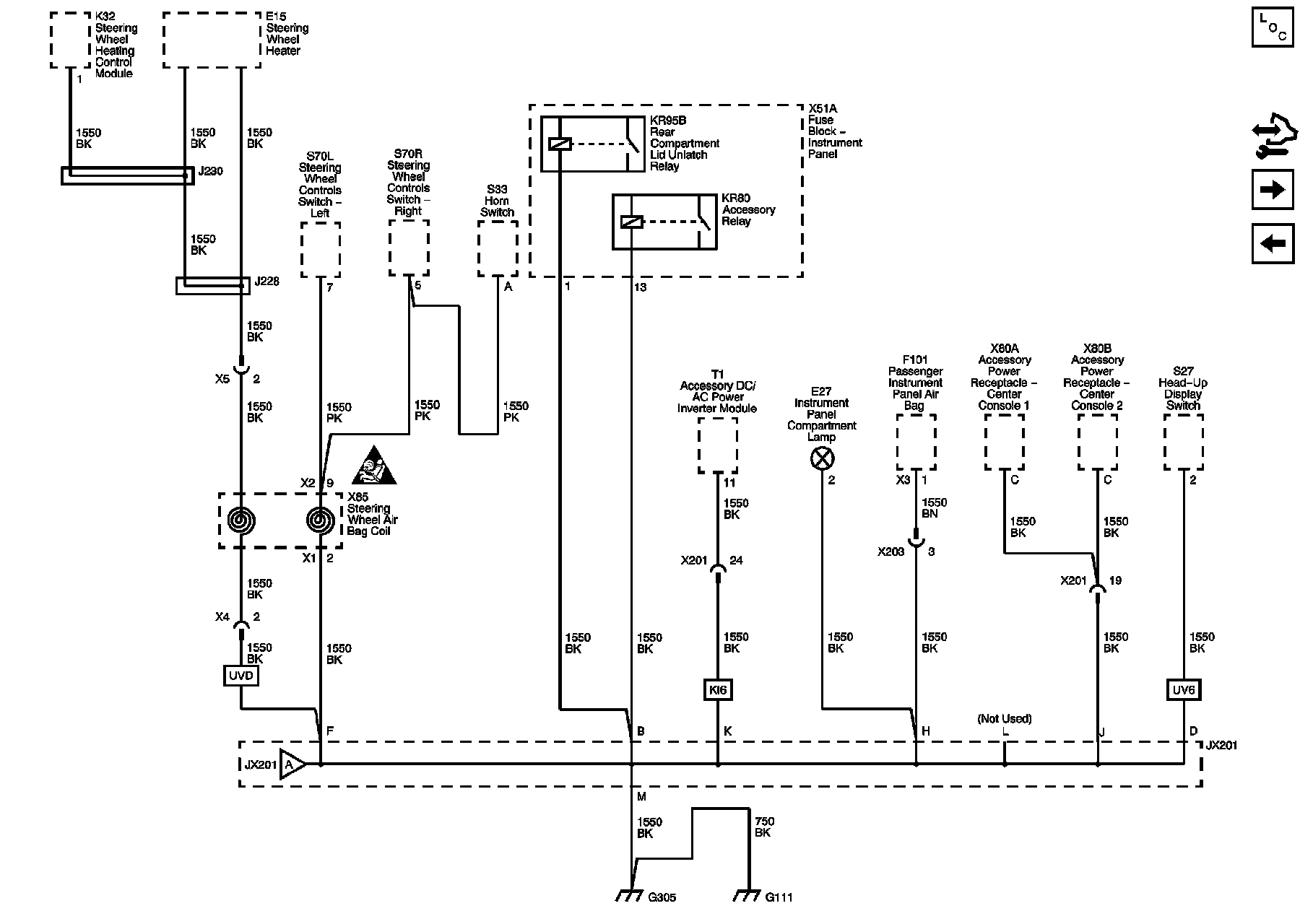

G111 and G305 (1 of 2)








Ground Distribution Schematics

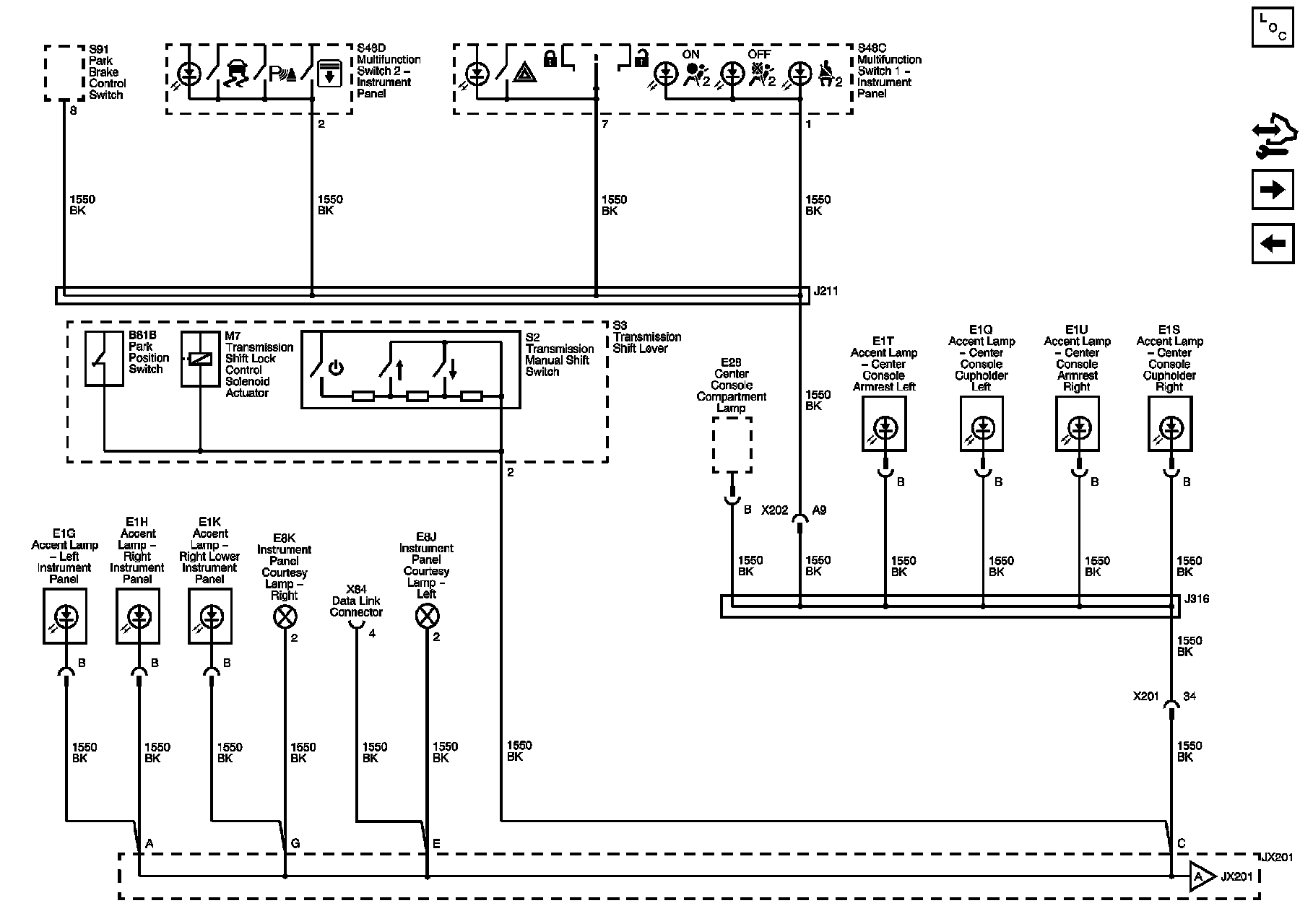

G305 (2 of 2)







Ground Distribution Schematics

G305
