Suspension Control ( Automatic - Electronic )

Electronic Suspension Control Schematics

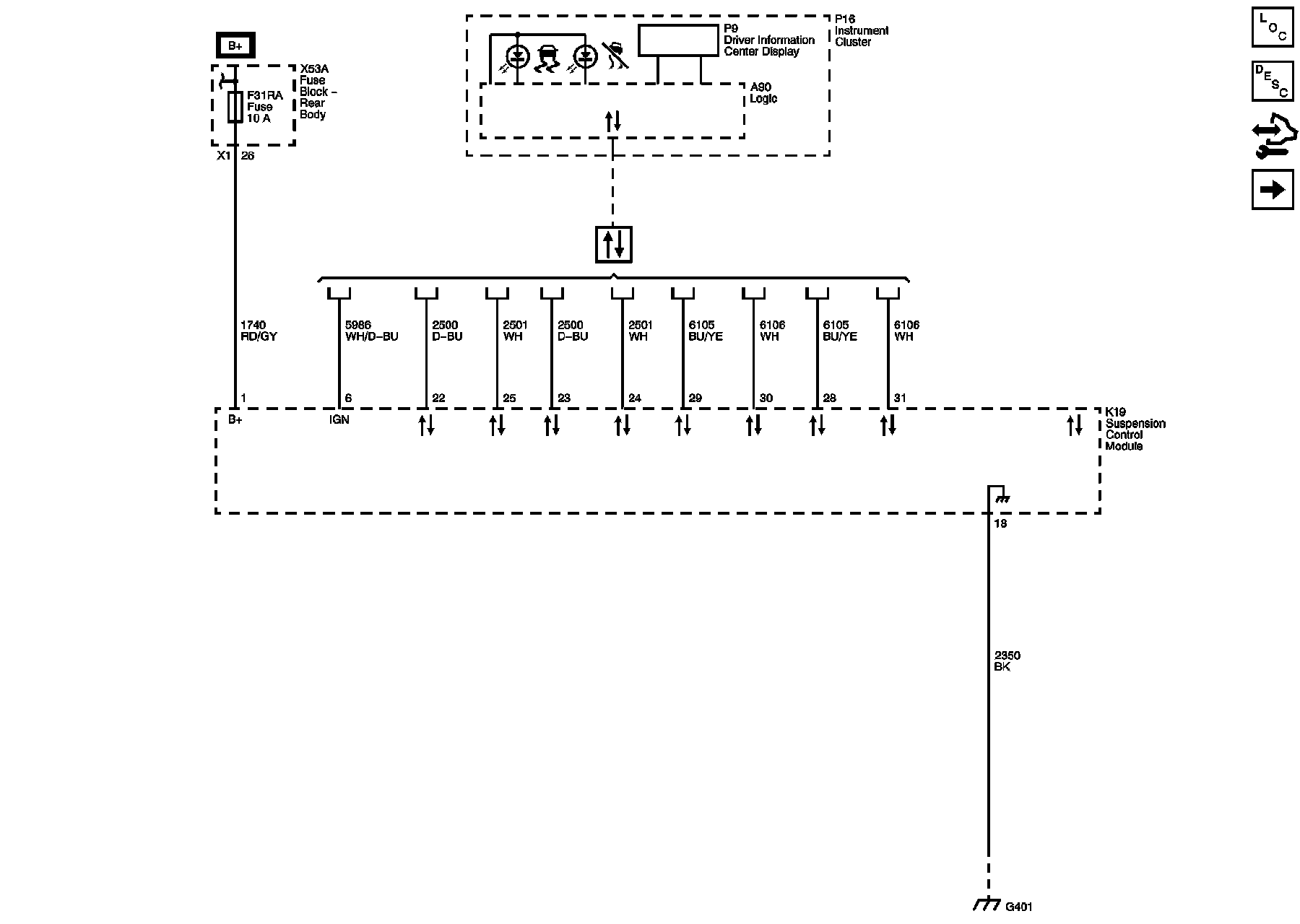

Power, Ground, Data Communication and Indicators

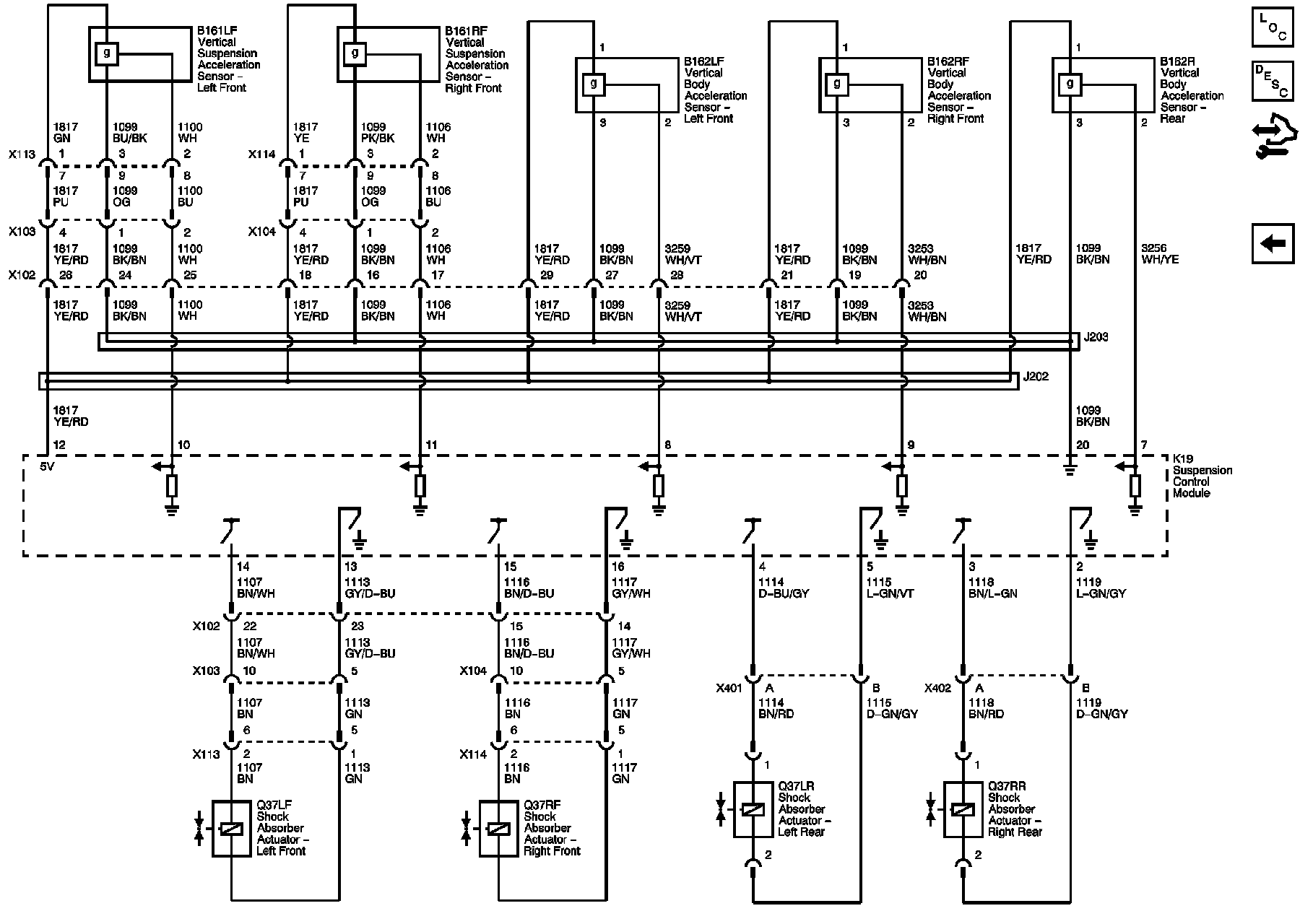

Sensors and Actuators
