Home
>>
Buick
>>
2013
>>
LaCrosse AWD V6-3.6L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Schematics
>>
G111
G111
Ground Distribution Schematics

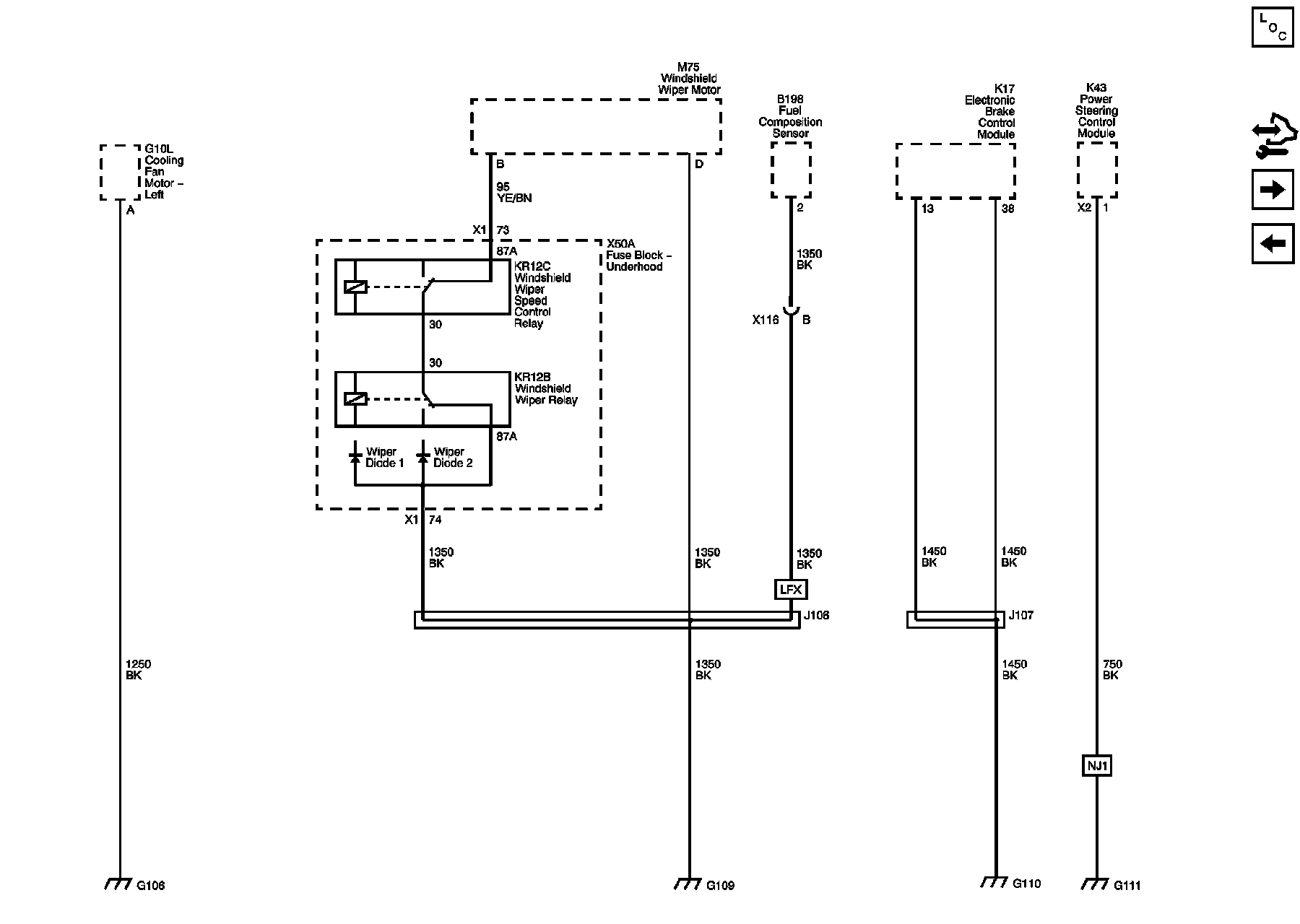

G106, G109, G110, and G111
