Operation CHARM
: Car repair manuals for everyone.
Home
>>
Buick
>>
2013
>>
LaCrosse AWD V6-3.6L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Locations
>>
Labels
Labels
Electrical Center Identification Views

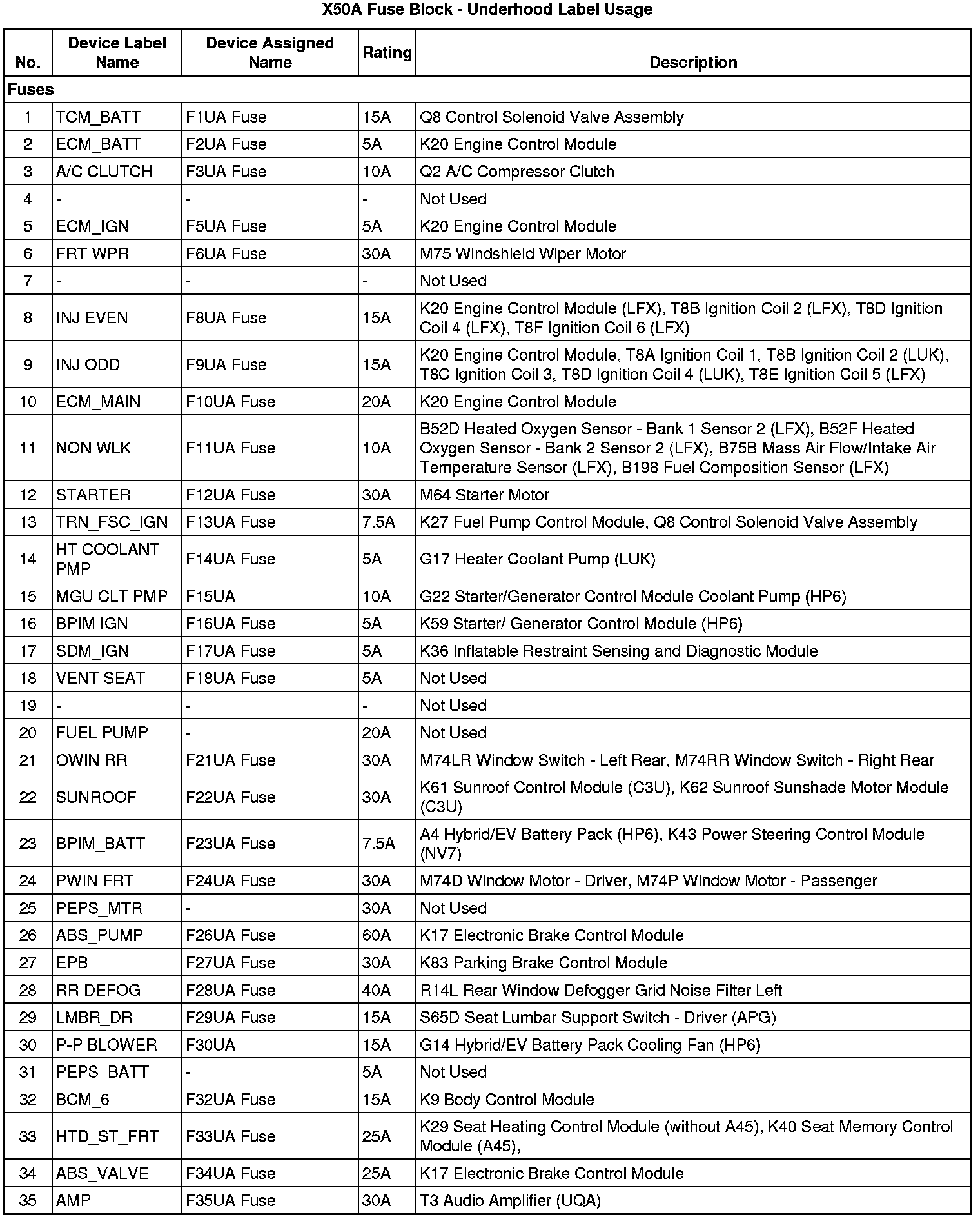

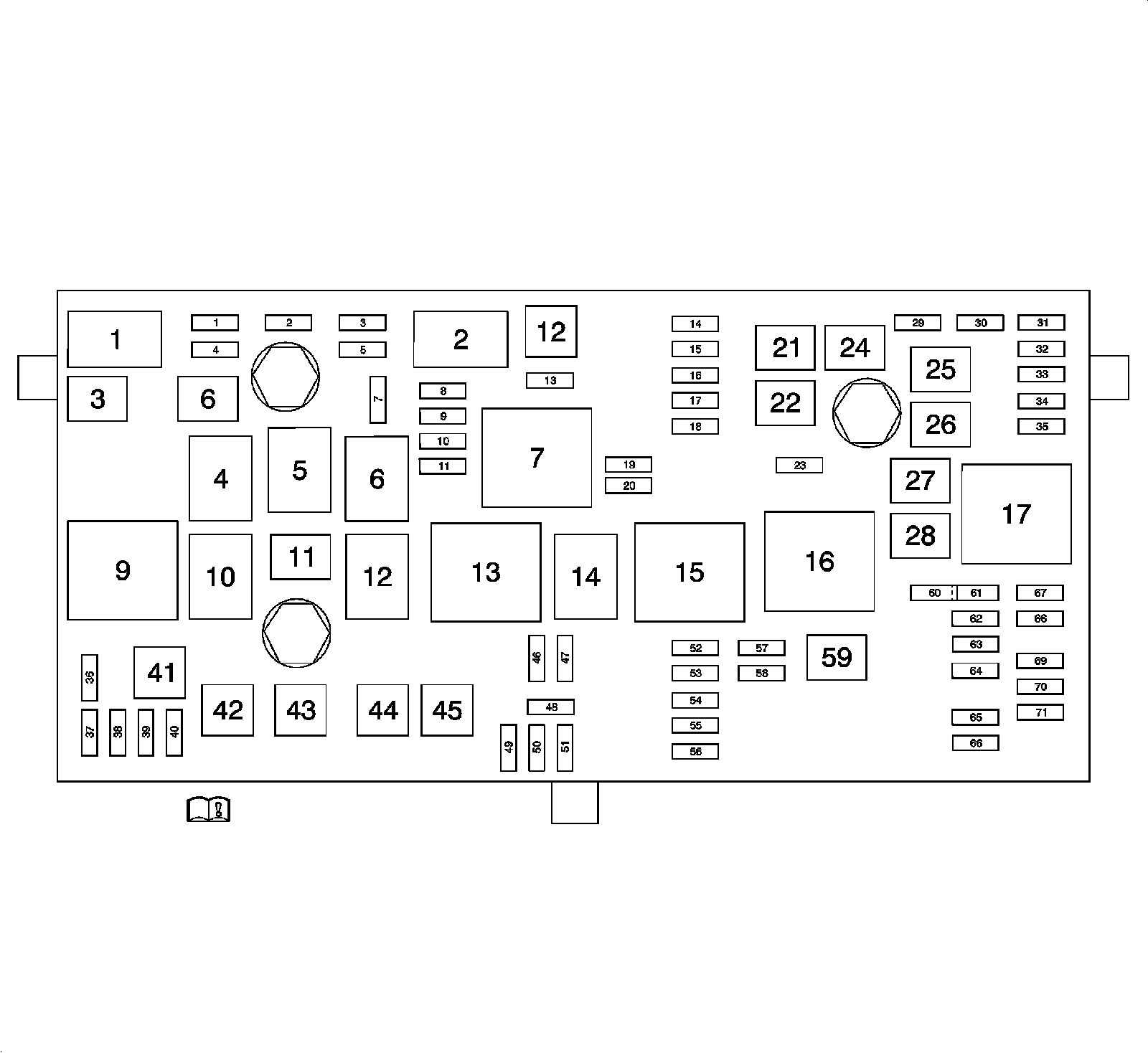

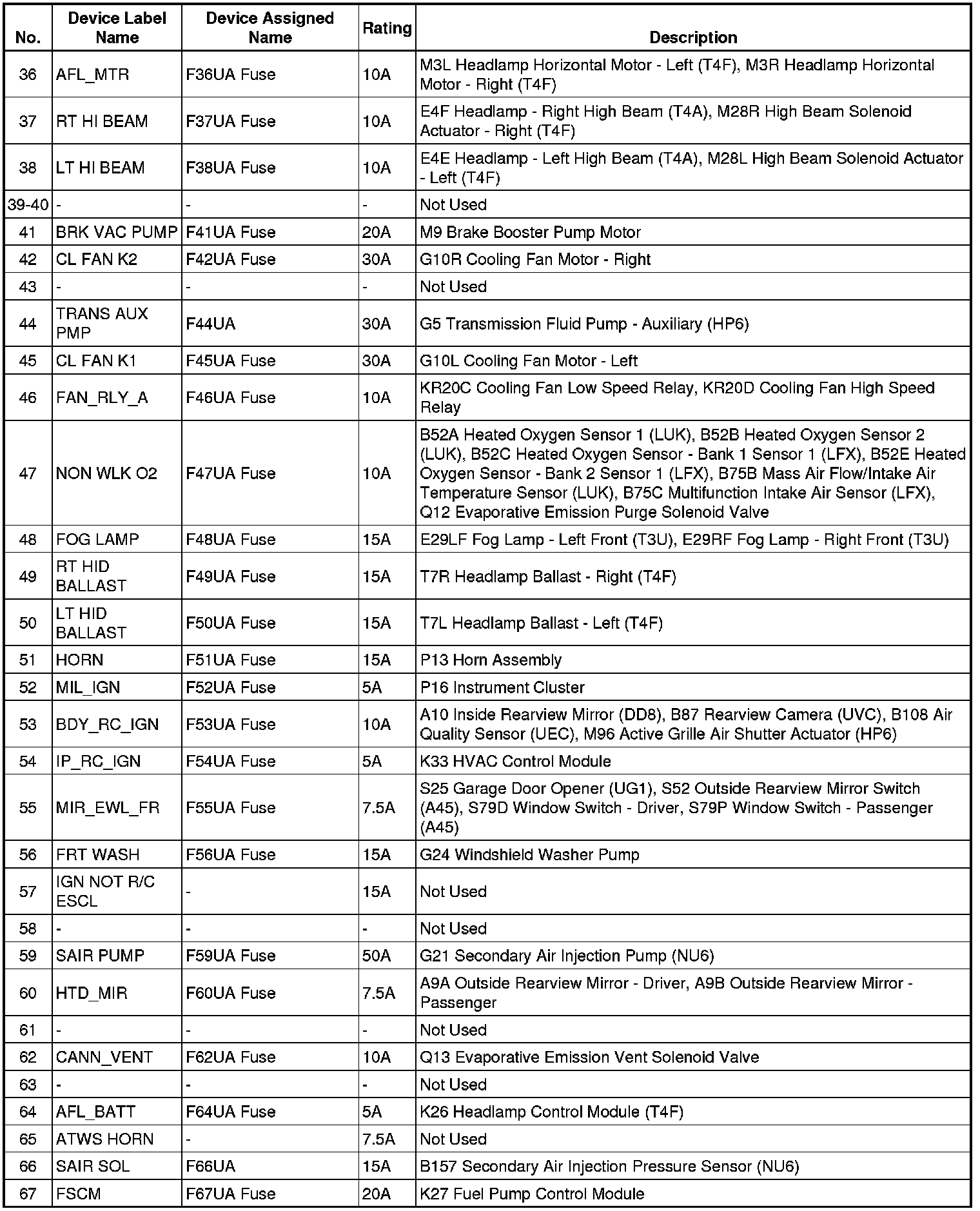

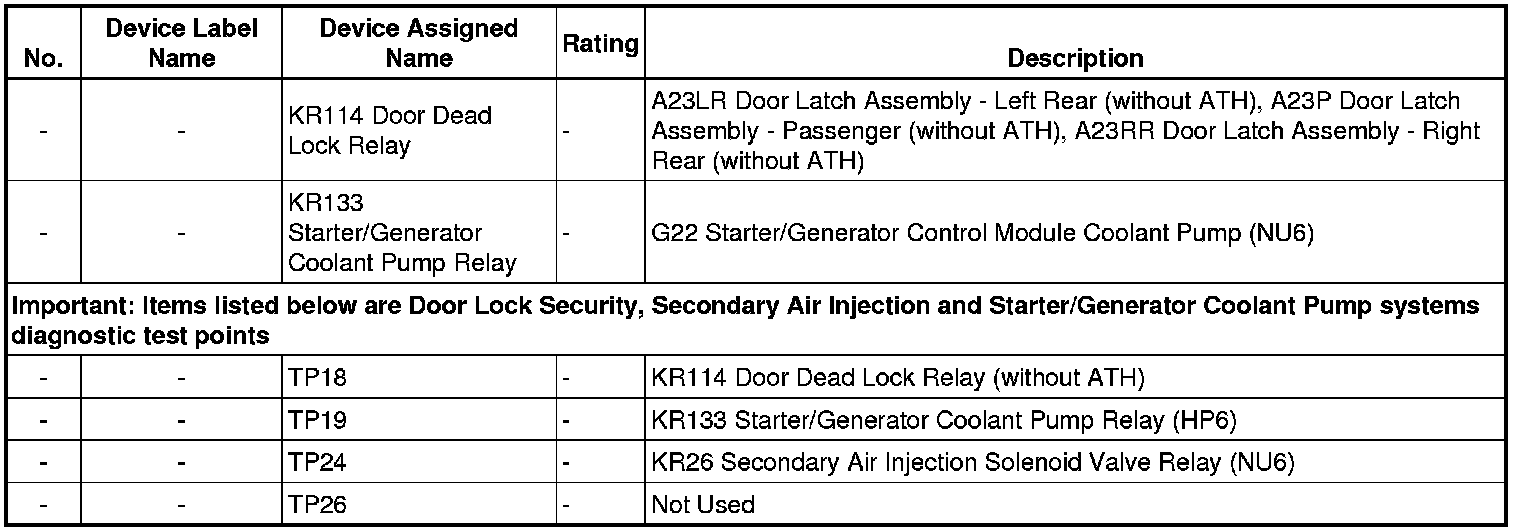

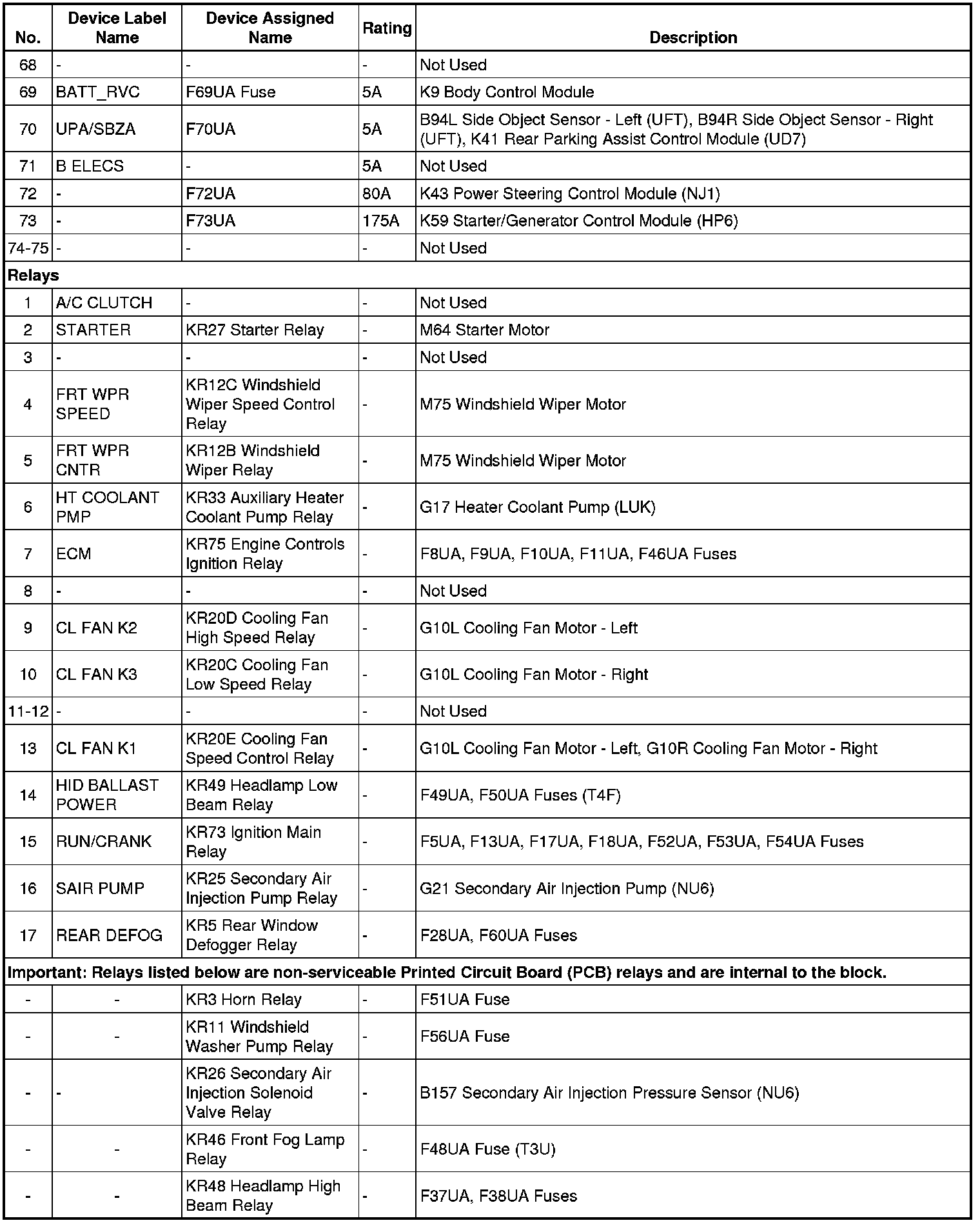

X50A Fuse Block - Underhood Label
