Heated Oxygen Sensor 1
Heated Oxygen Sensor 1
Component Connector End Views

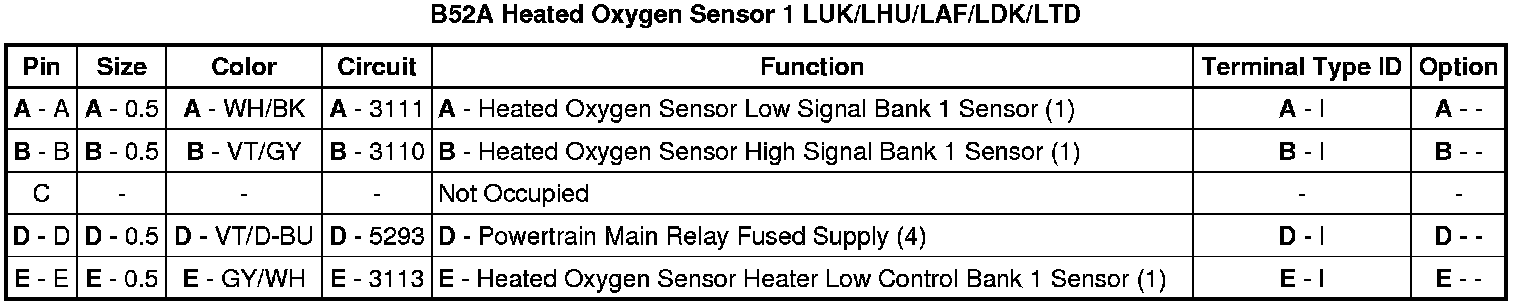

B52A Heated Oxygen Sensor 1 LUK/LHU/LAF/LDK/LTD
