Turbo Boost Sensor

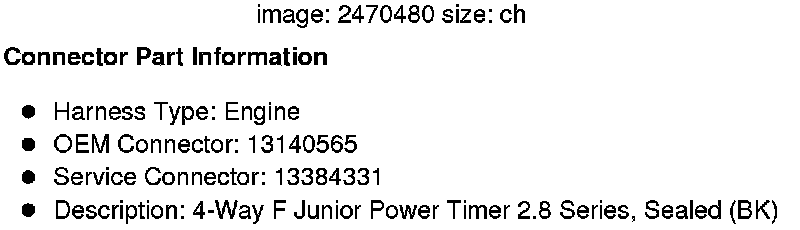

Component Connector End Views

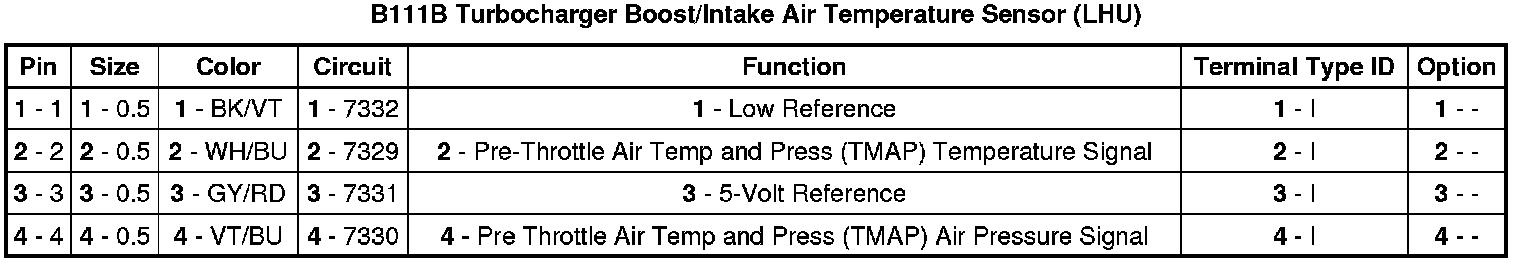

B111B Turbocharger Boost/Intake Air Temperature Sensor (LHU)
