Washer Fluid Level Switch
Washer Fluid Level Switch

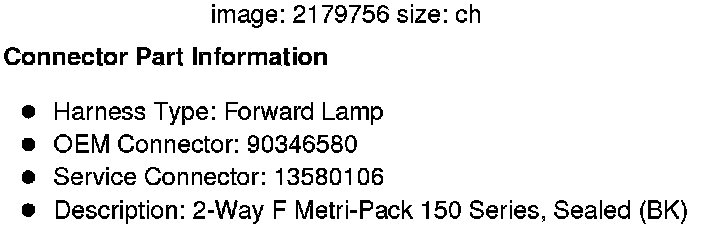

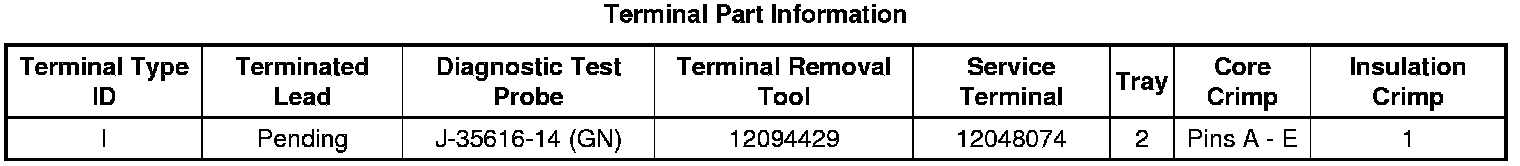

Component Connector End Views

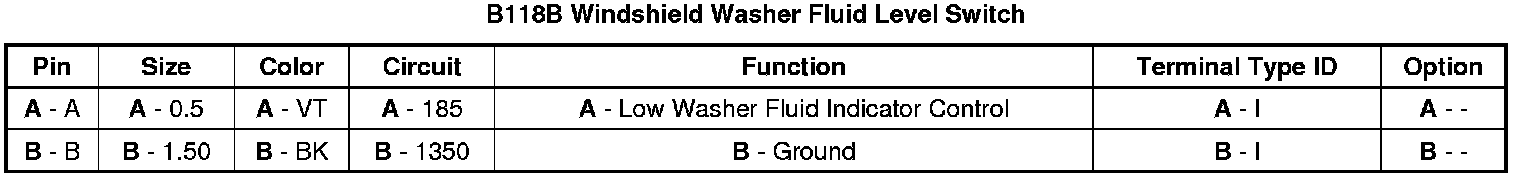

B118B Windshield Washer Fluid Level Switch
