Radio/Navigation System Schematics
Radio/Navigation System Schematics

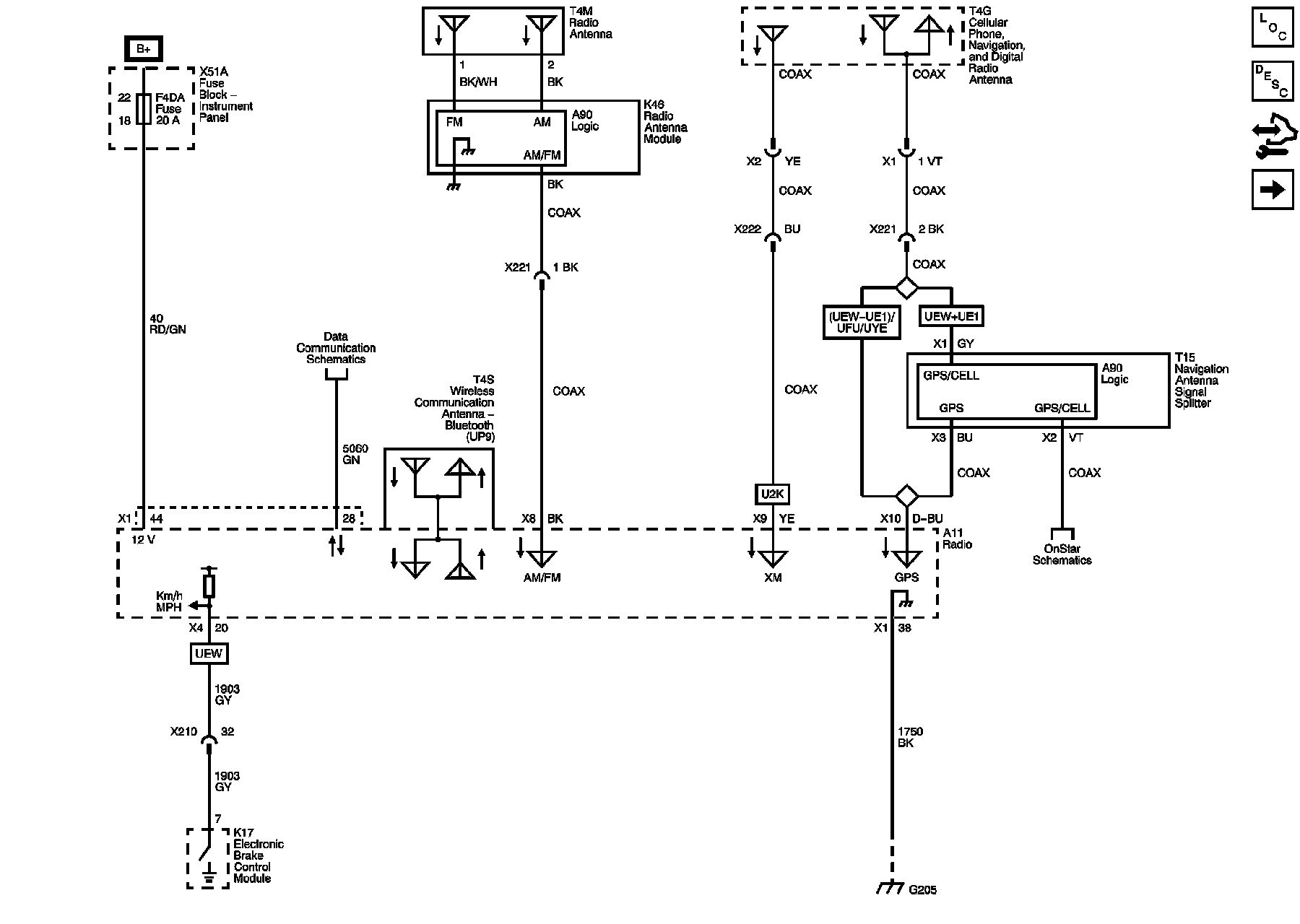

Power, Ground, Serial Data and Antennas

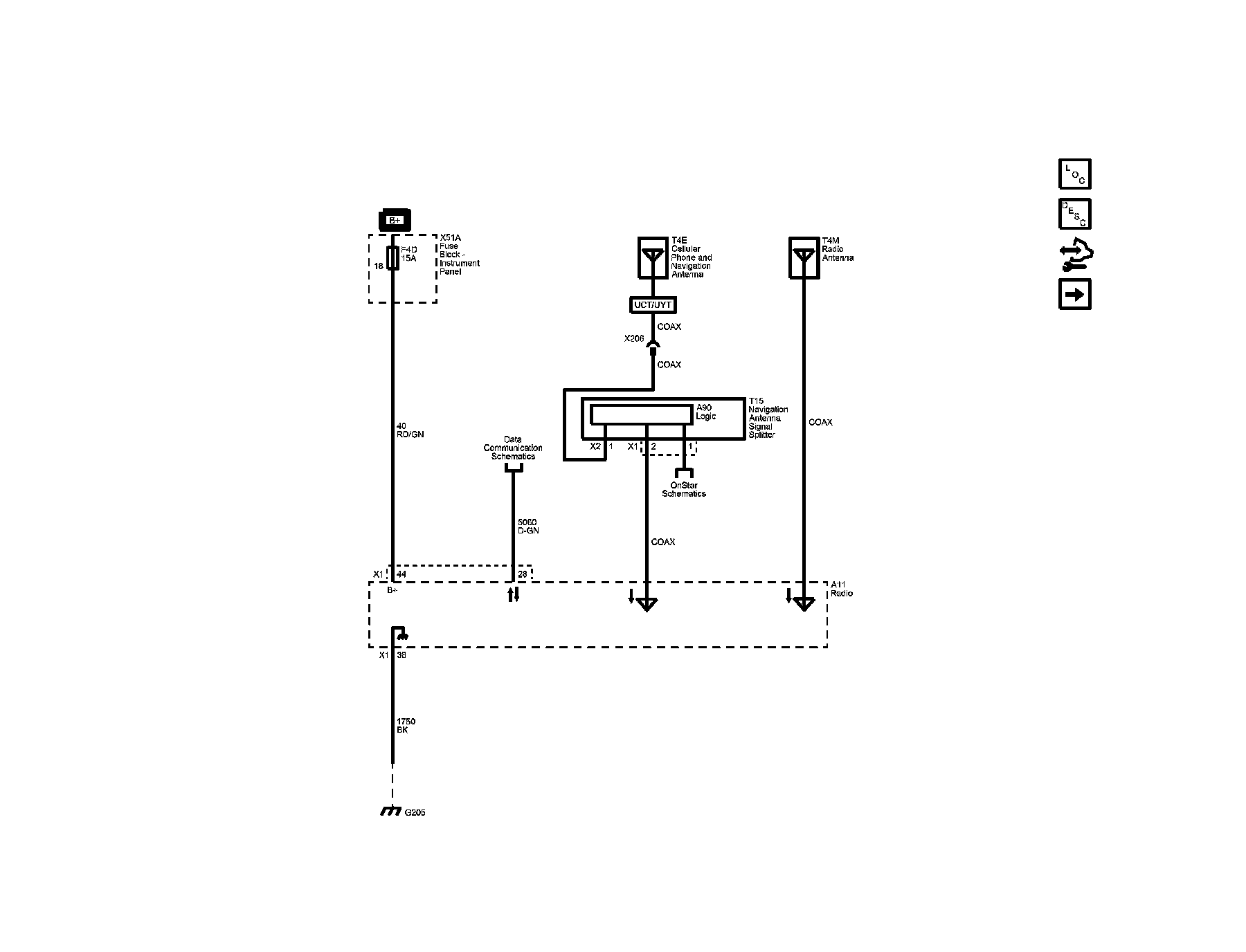

Power, Ground, Antennas, and Serial Data CZ2

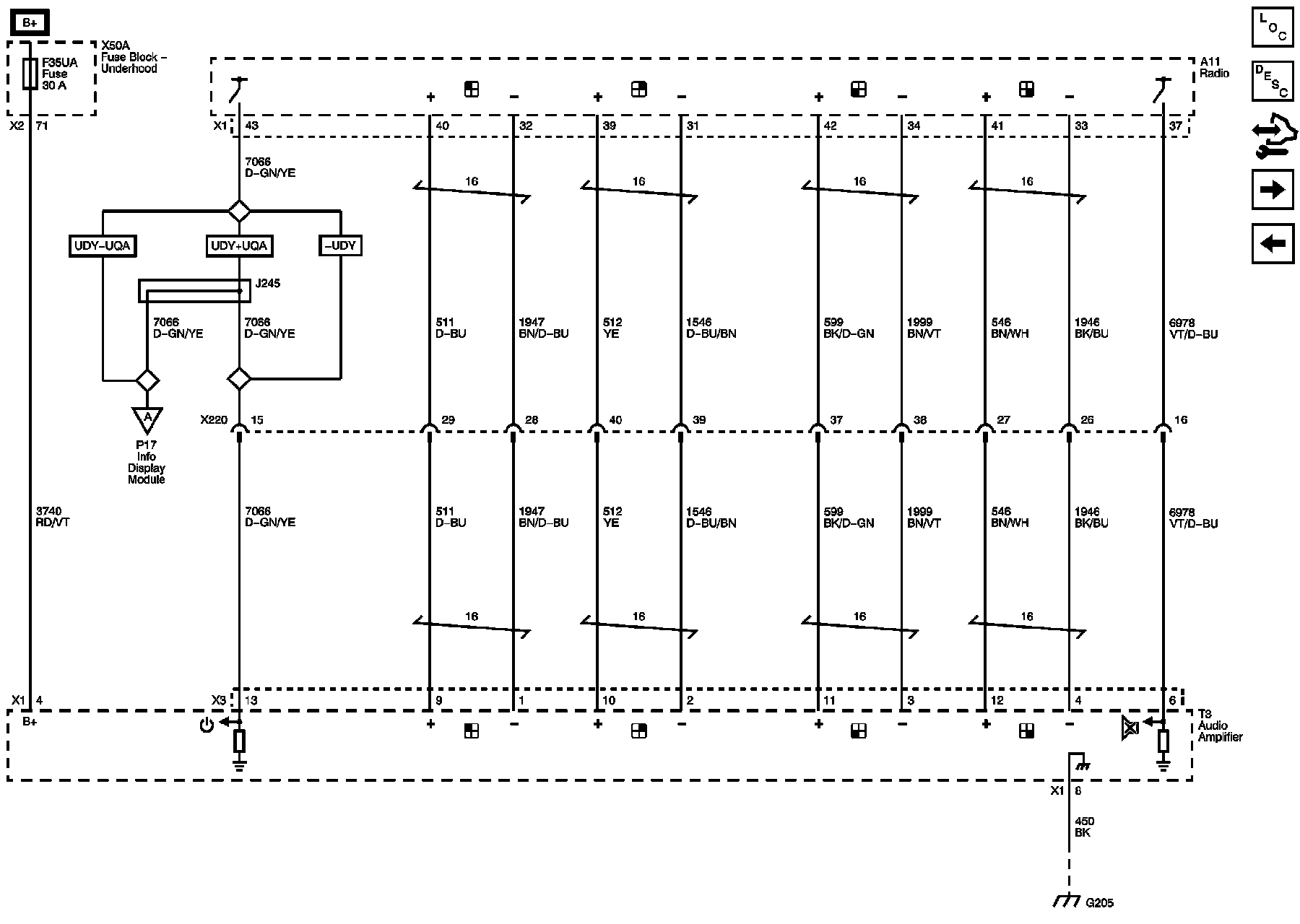

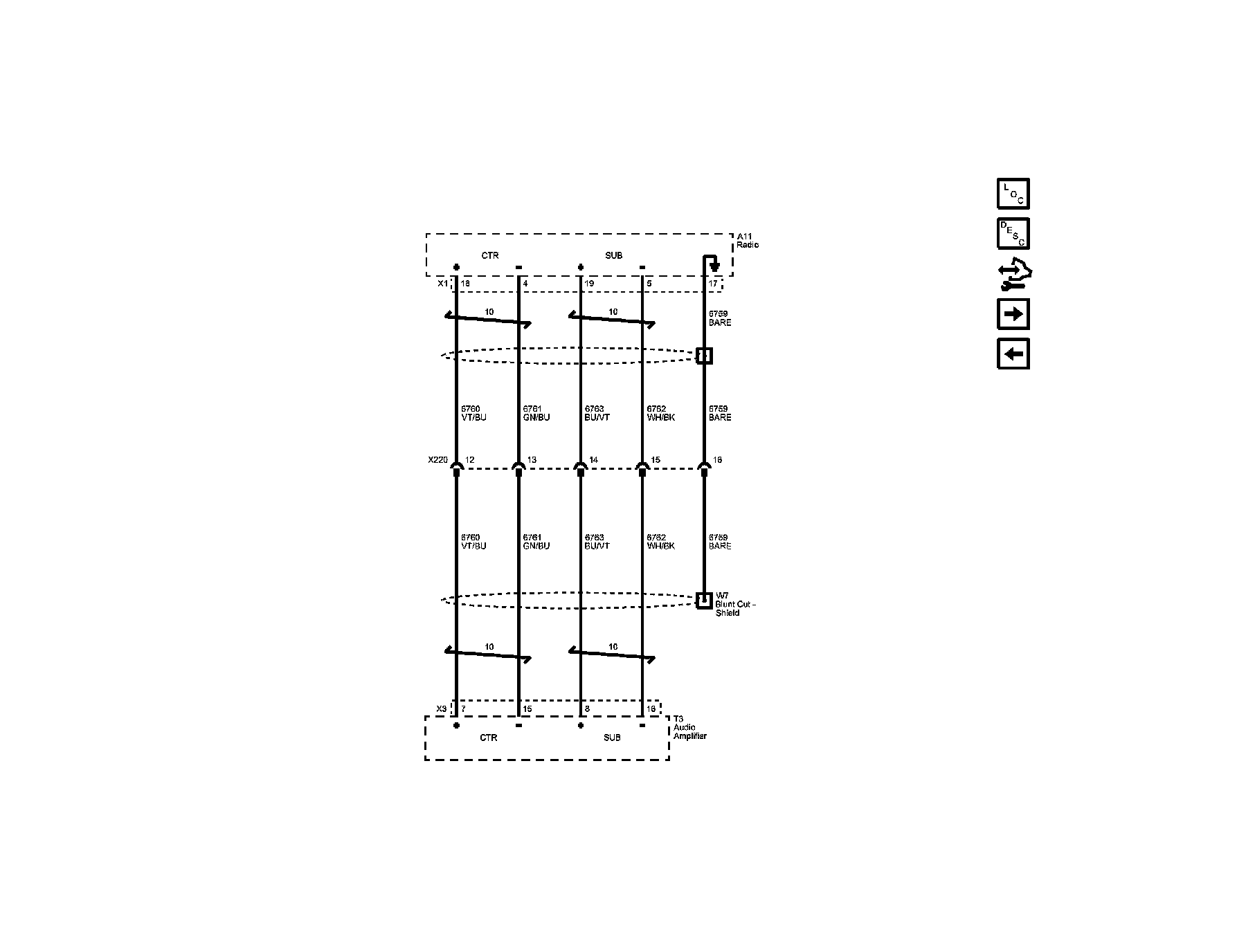

Amplifier Inputs (UQA)(-CZ2)

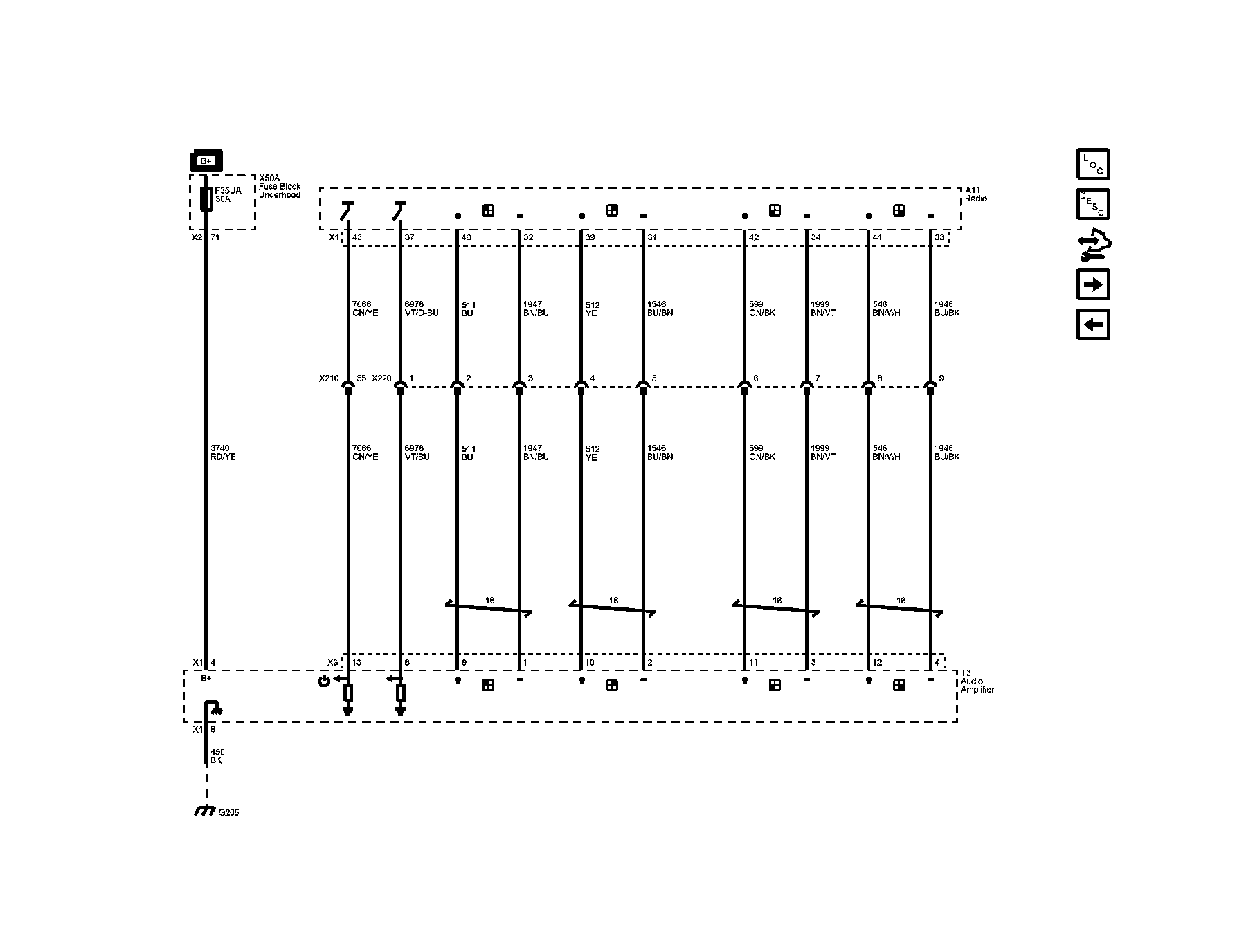

Amplifier Inputs (UQS) (1 of 2)(CZ2)
Amplifier Inputs (UQS) (2 of 2)(CZ2)
Speakers (U65)(-CZ2)
Speakers (U65)(CZ2)

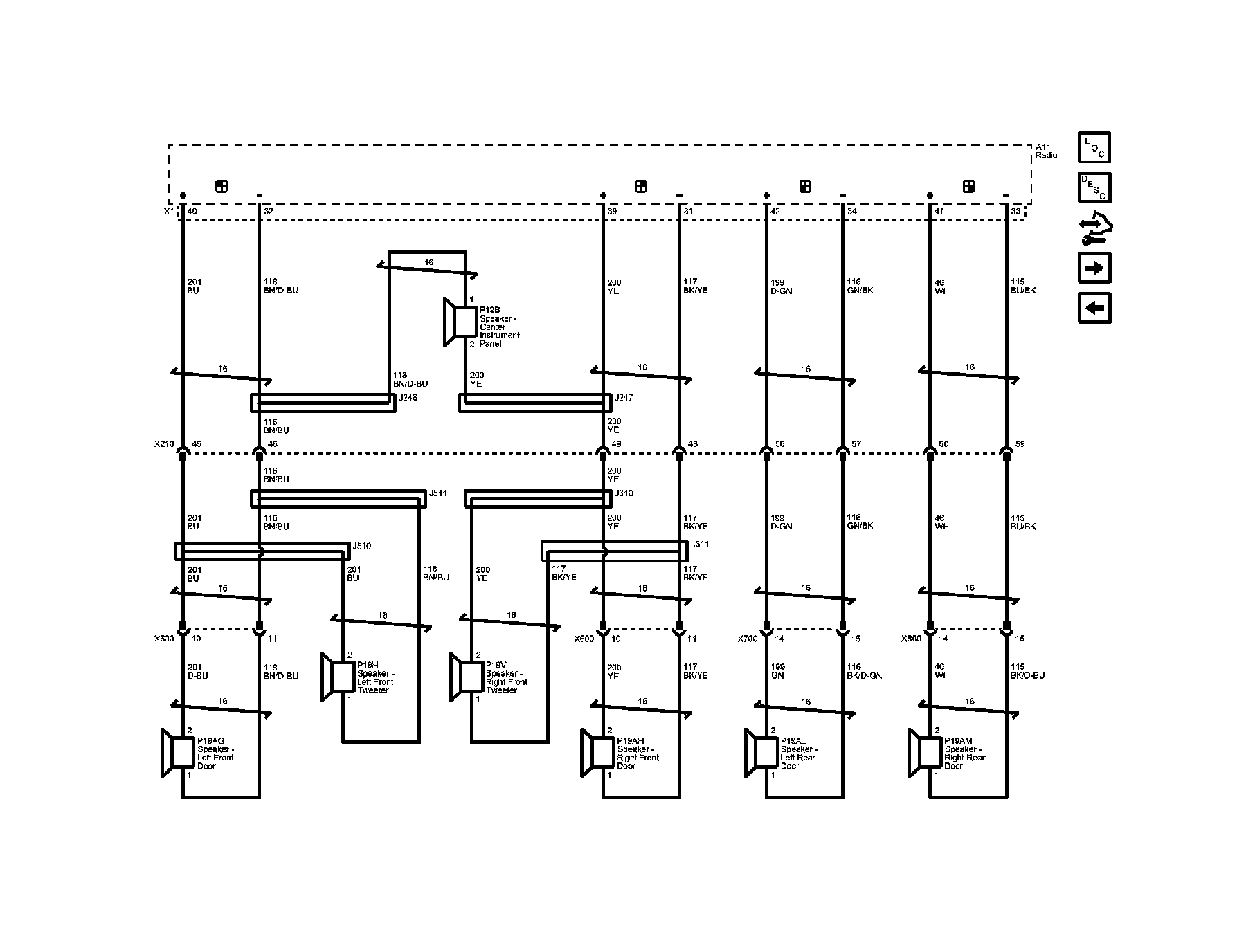

Speakers (UQA)(-CZ2)

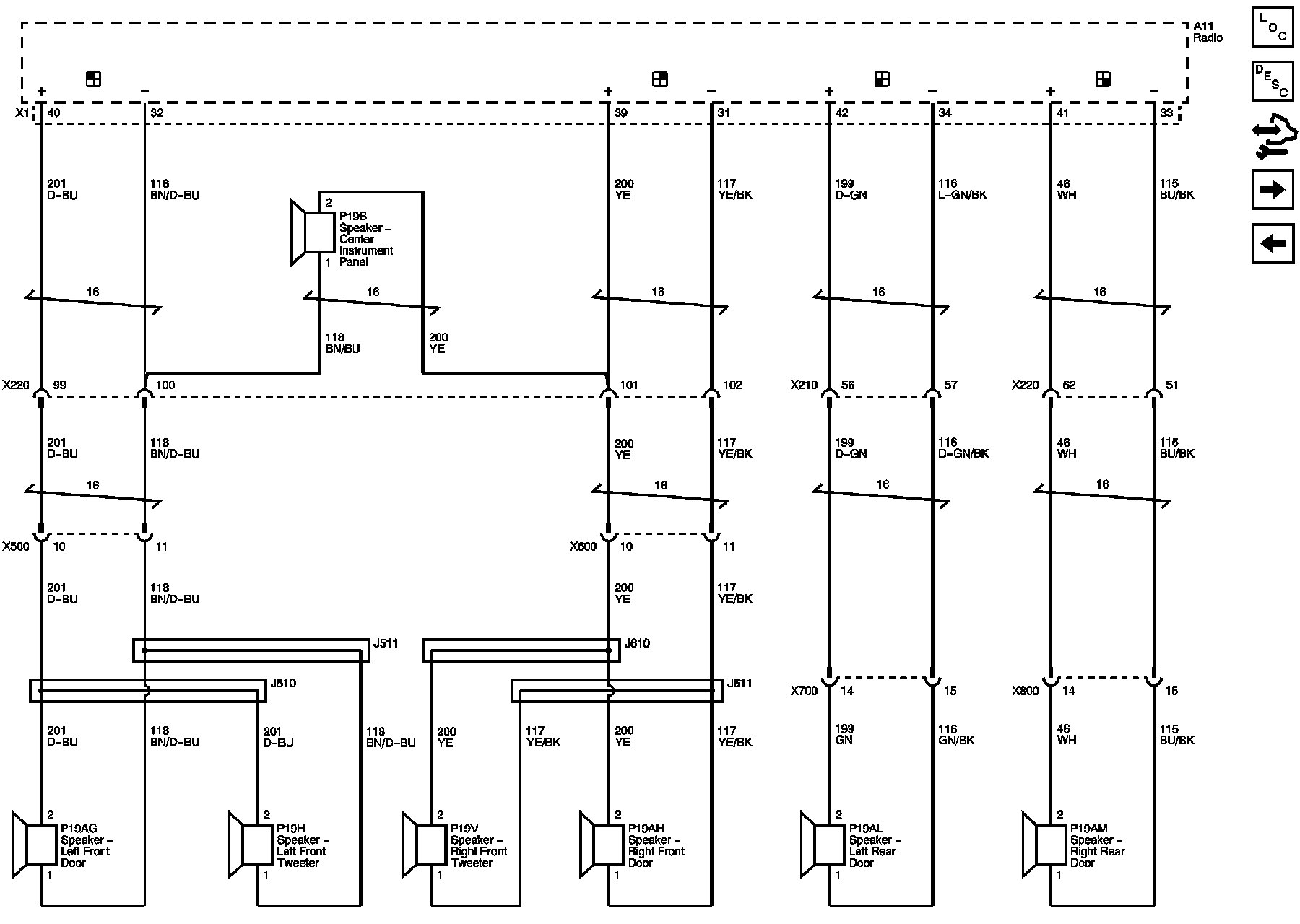

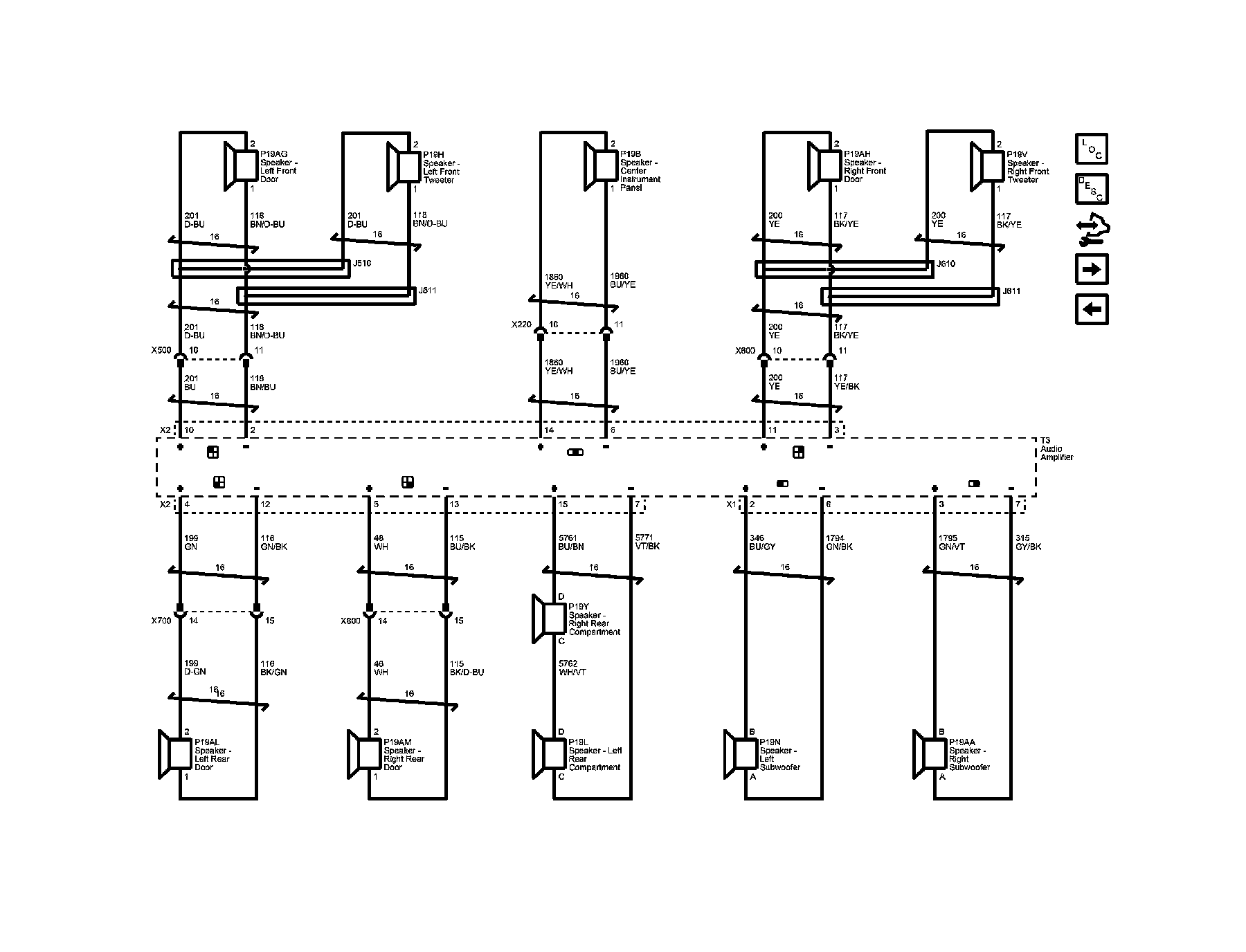

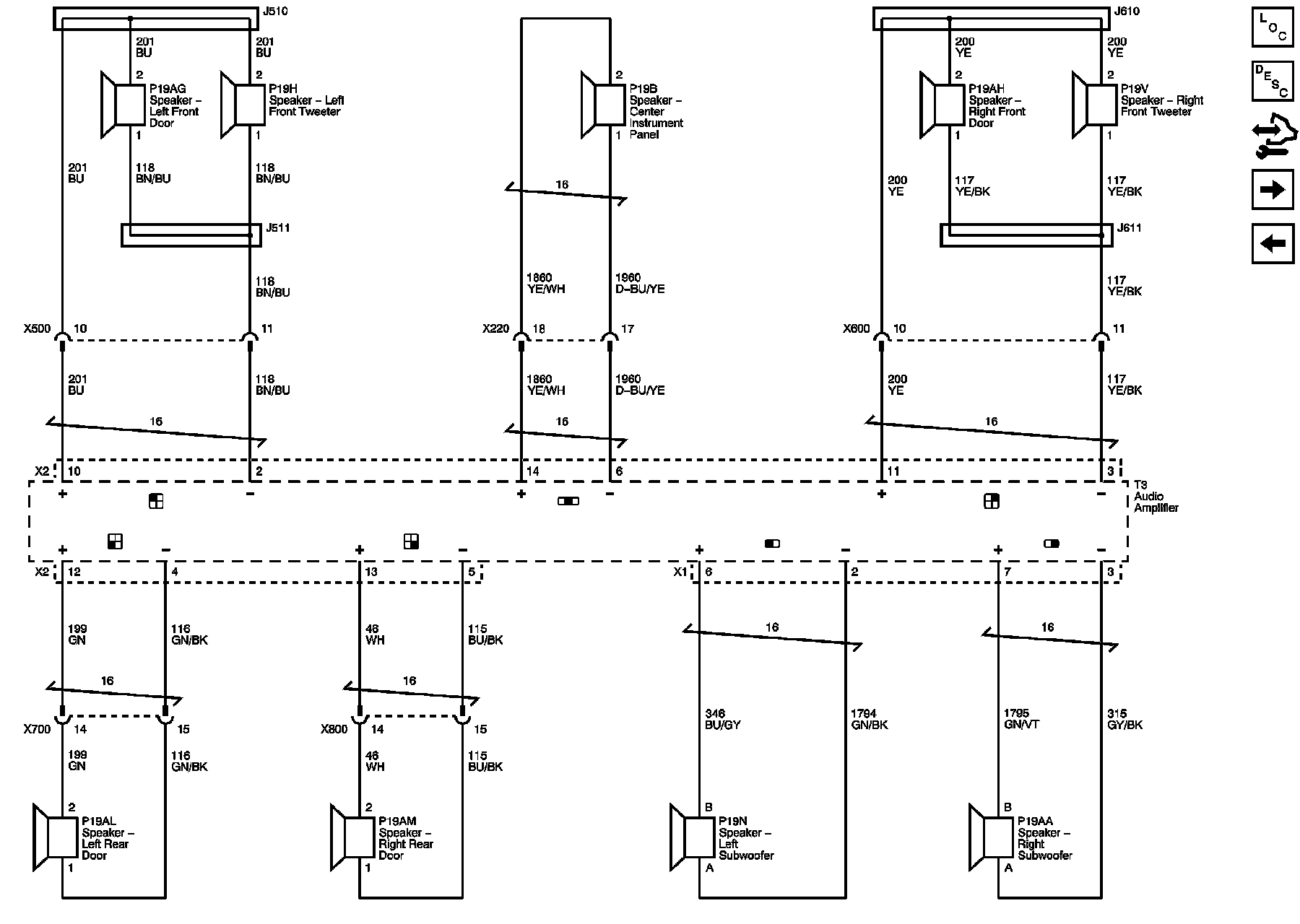

Speakers (UQS)(CZ2)
Auxiliary Inputs (KTA)(-CZ2)

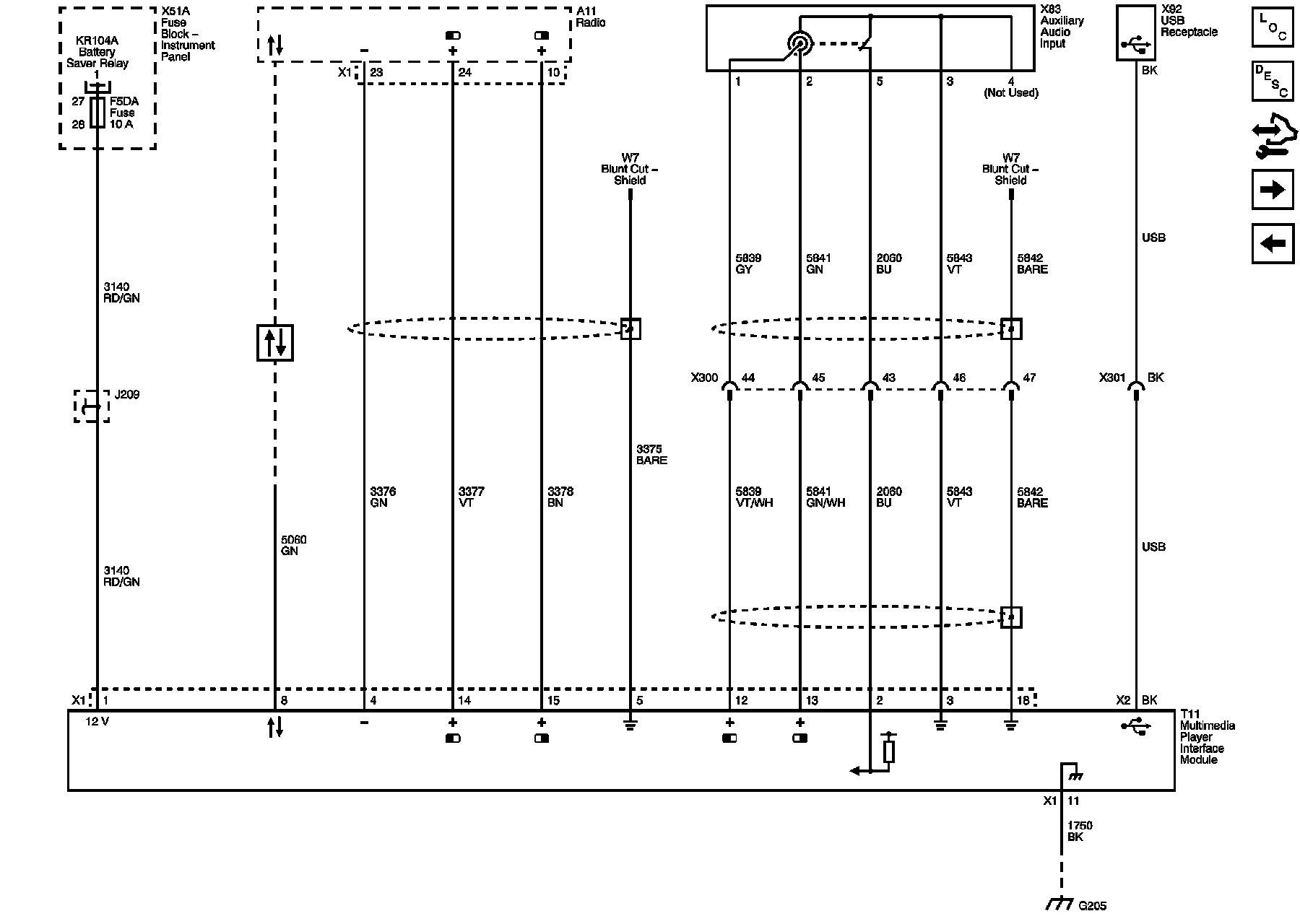

Auxiliary Inputs (without KTA)(-CZ2)
Controls and Display (-CZ2)

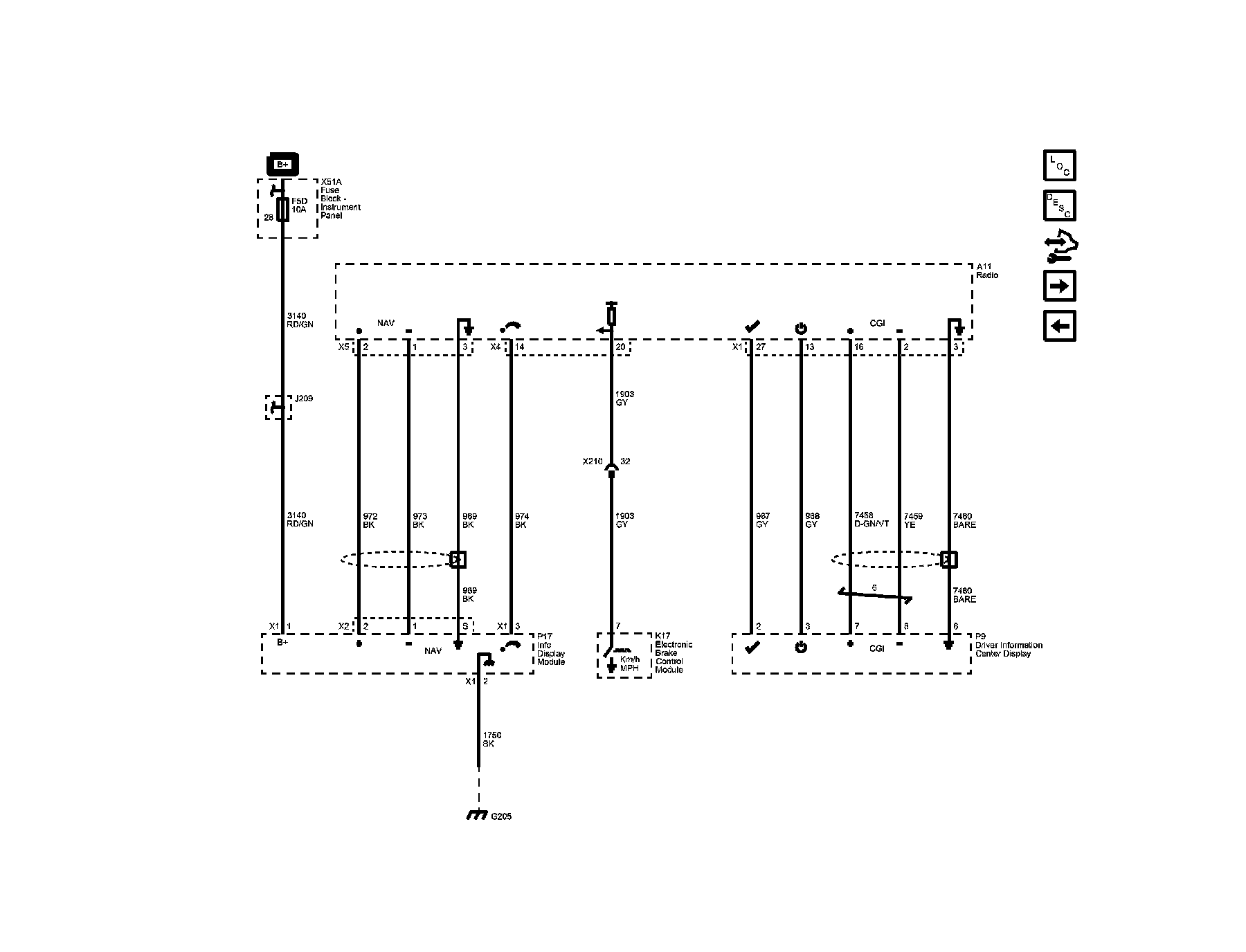

Navigation System (UYT)(CZ2)

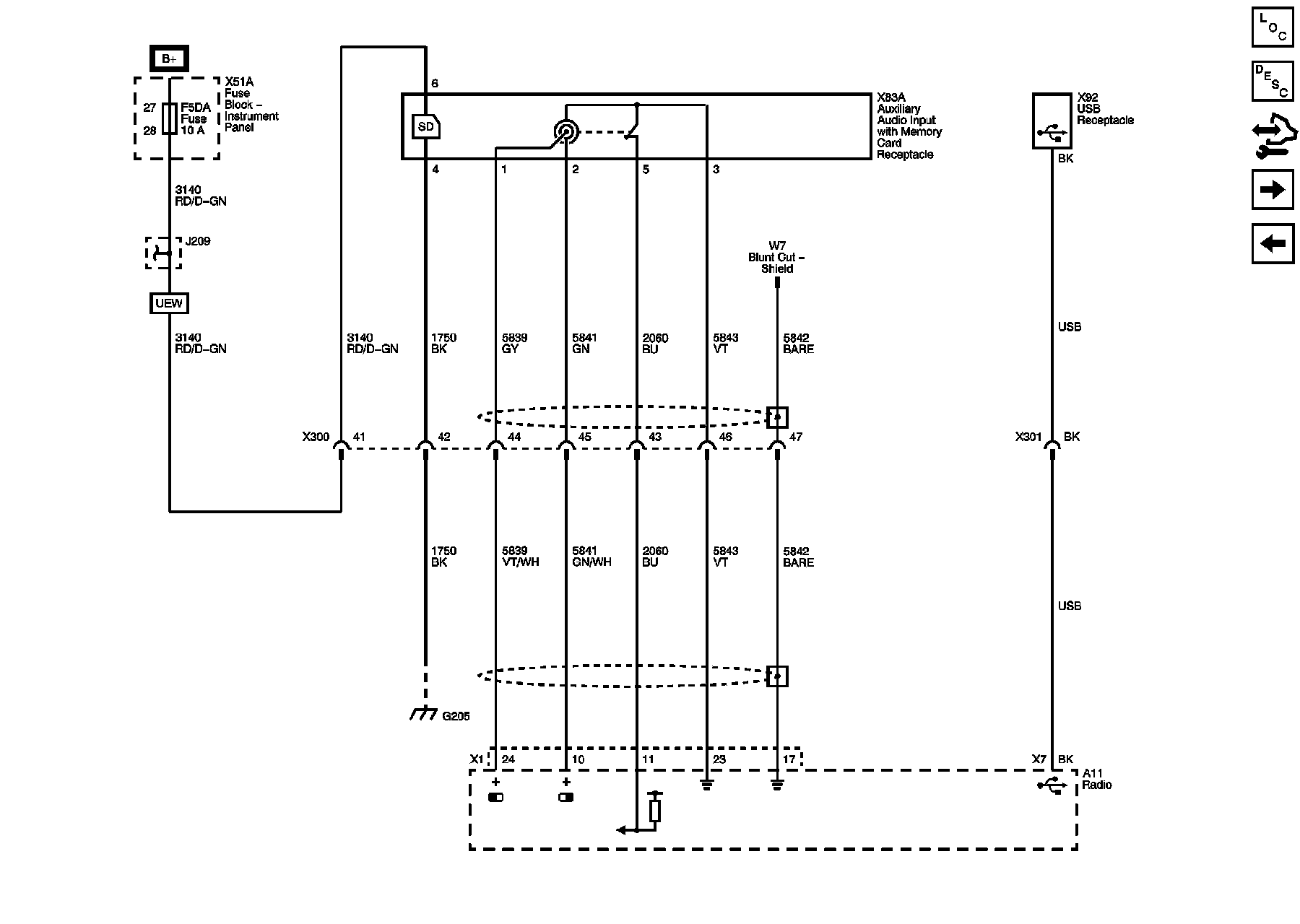

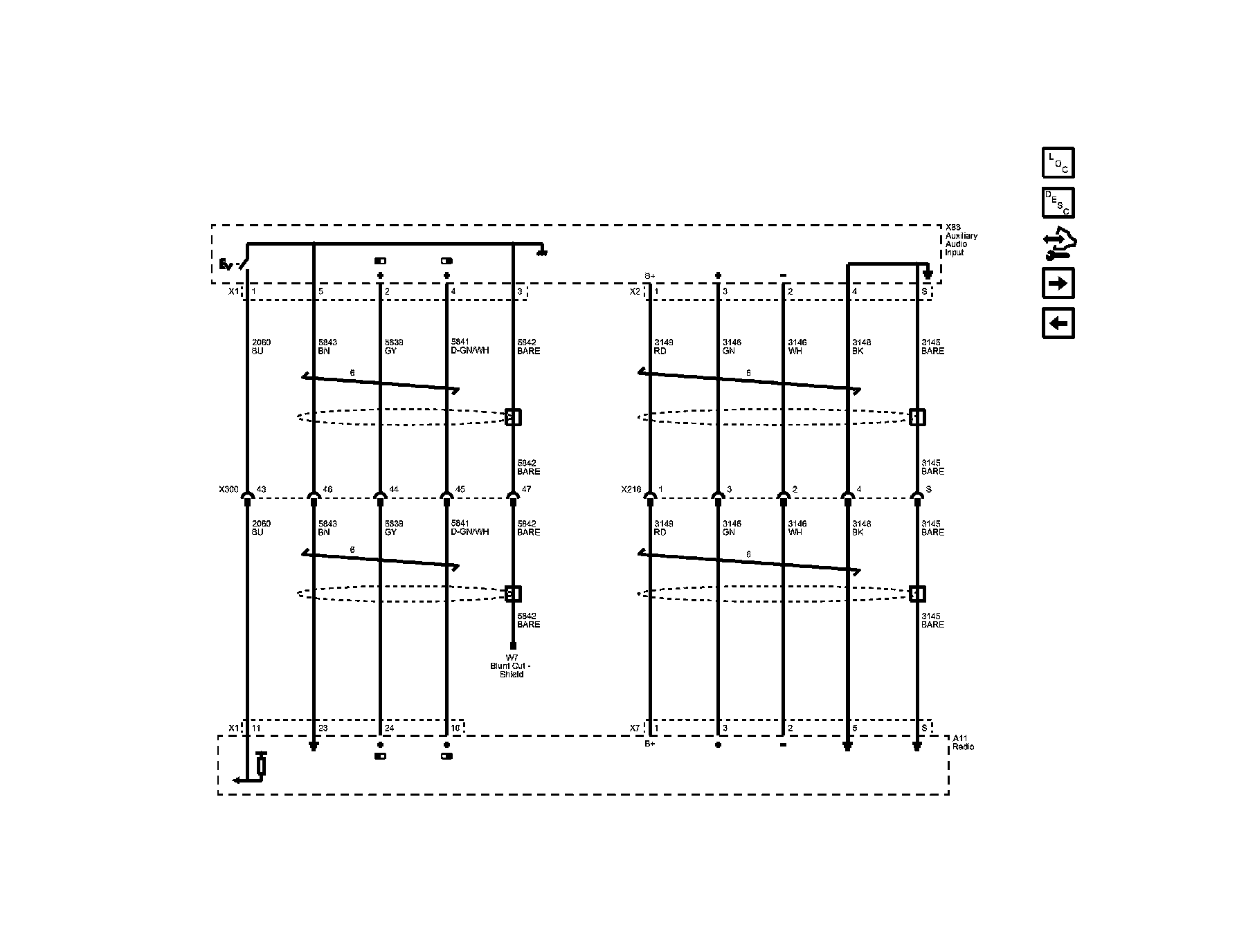

Auxiliary Audio Input (CZ2)

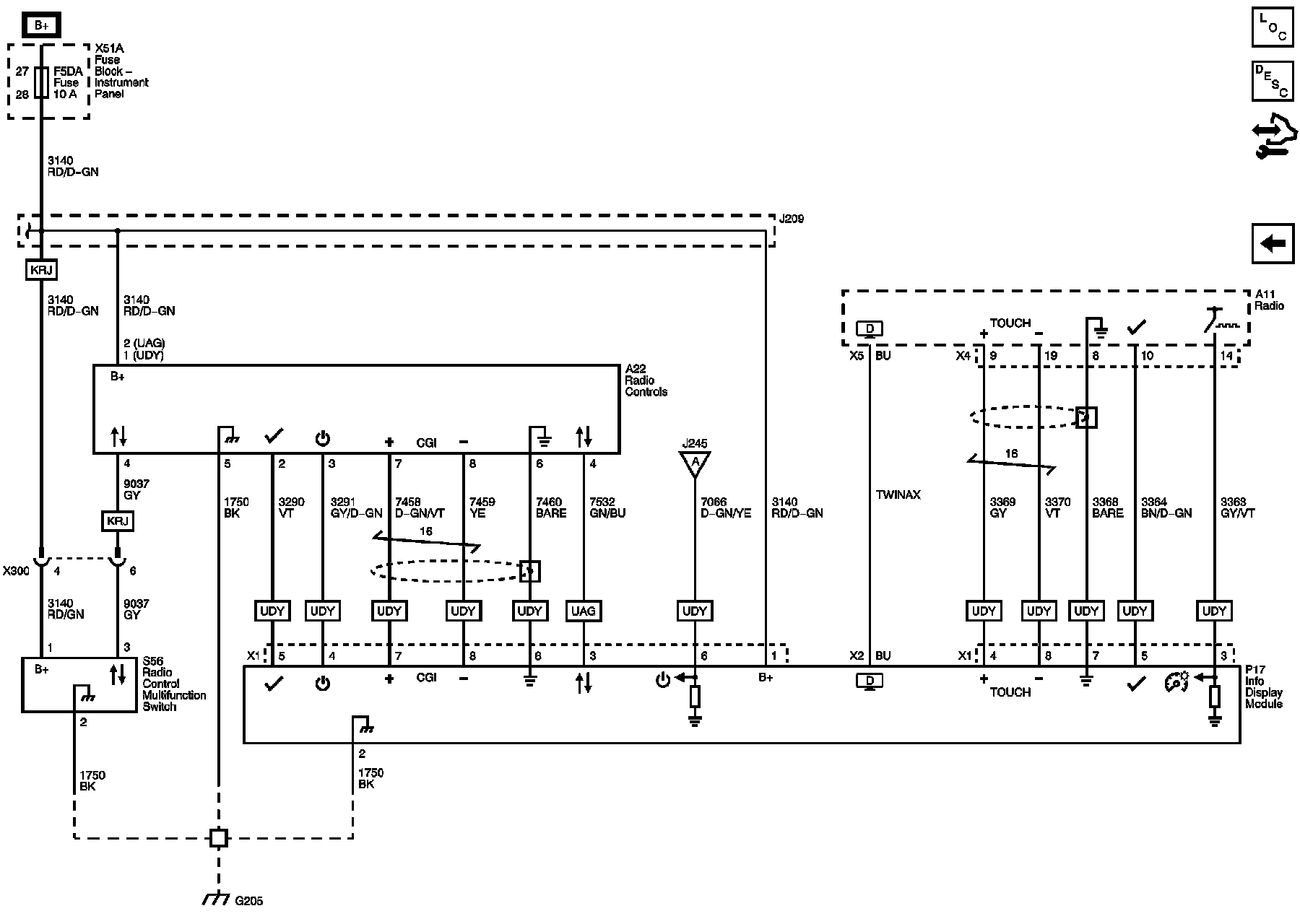

Radio Controls (CZ2)

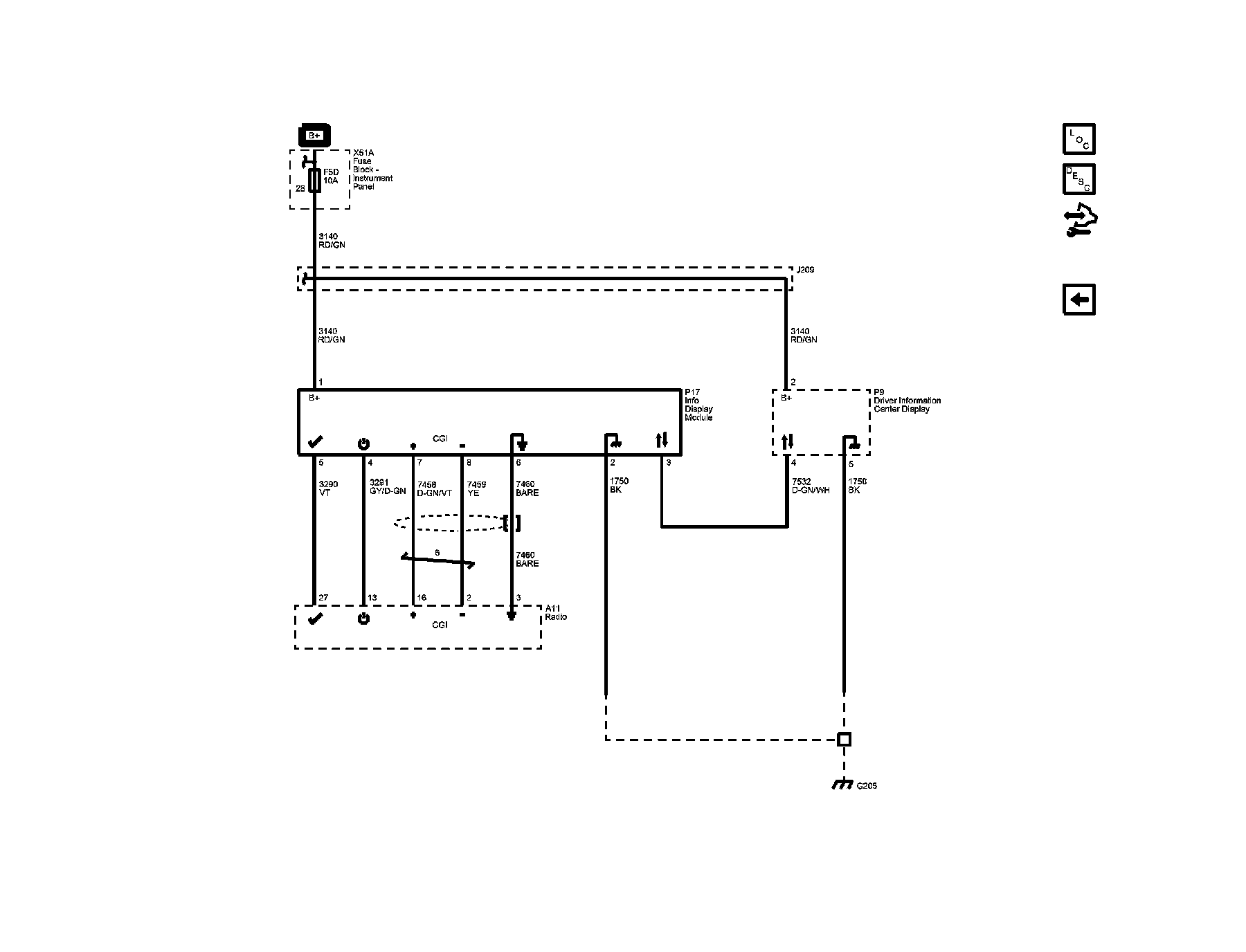

Info Display (without UAG) (CZ2)
