- Description of On-Board Diagnostics
>>

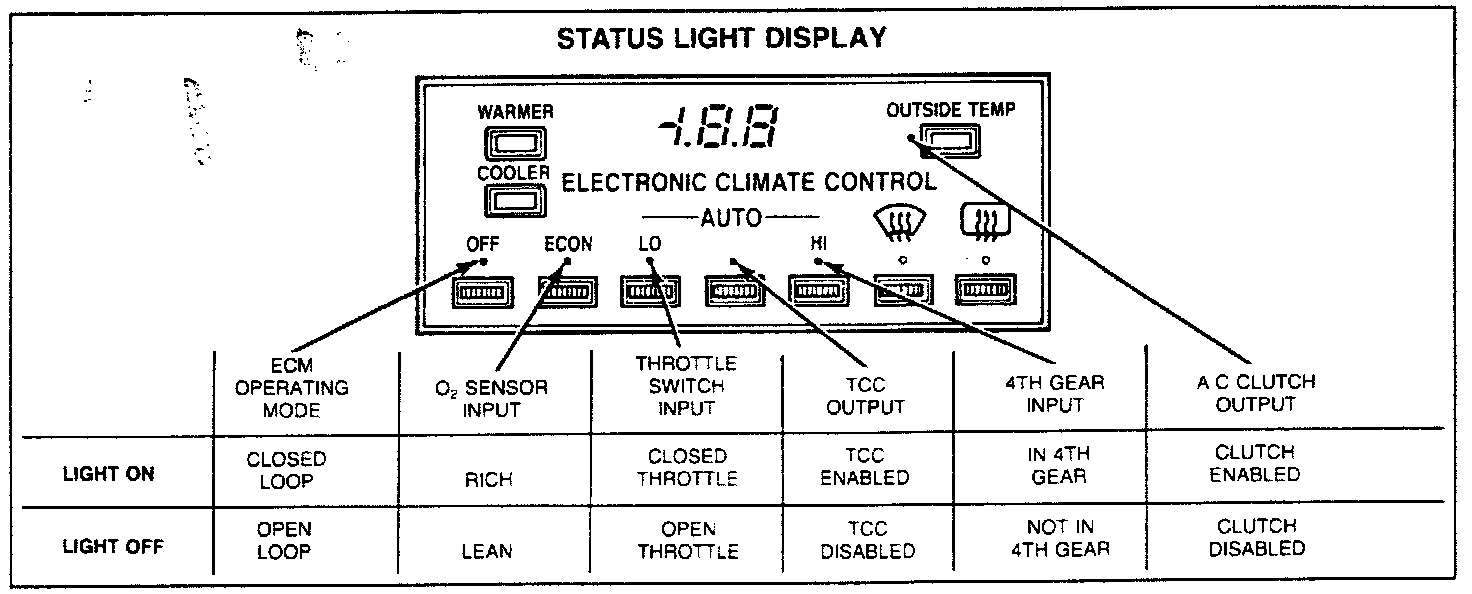

Status Light Display on ECC Control Panel
Status Light Display on ECC Control Panel
Status Light Display.:
