Cadillac
>>
1984
>>
Full Size Cad RWD V8-252 4.1L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Compressor Controls
Compressor Controls

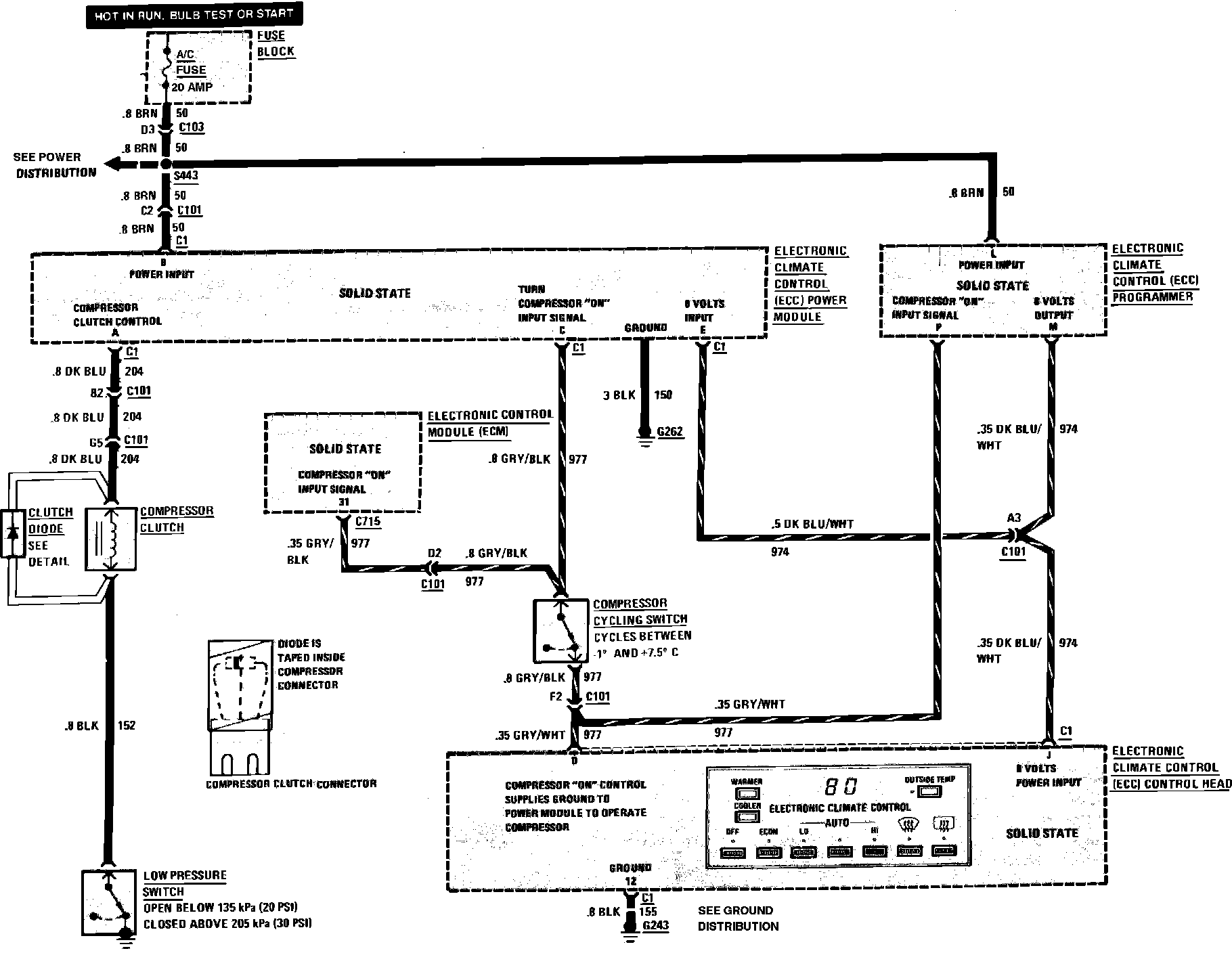

Air Conditioning (Compressor Controls) W/Gasoline Engine:
