Home >> Cadillac >> 1984 >> Seville V8-252 4.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> With Convertible >> Part 2 of 2

Part 2 of 2

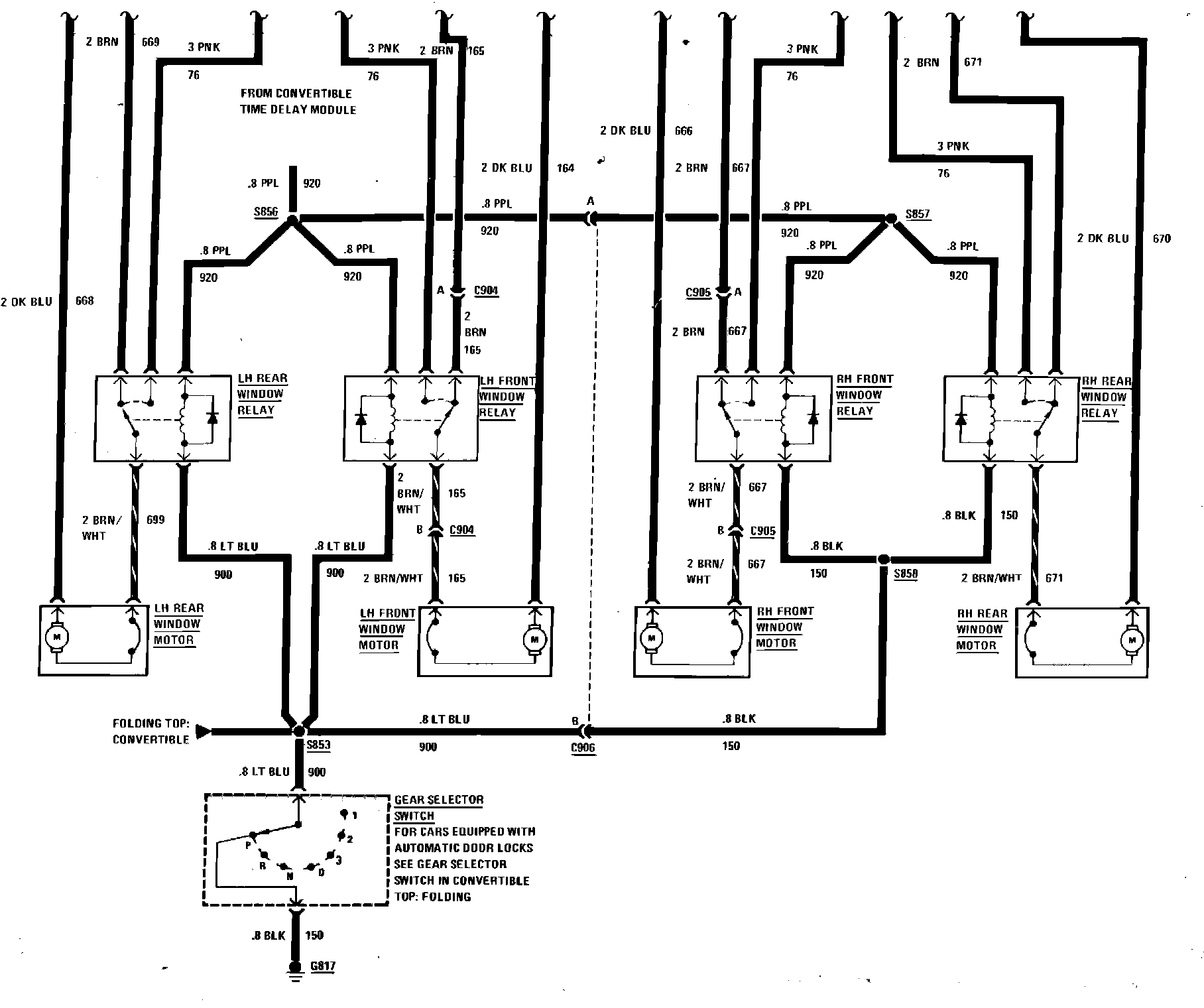

Power Windows Wiring Circuit, W/Convertible Top:
