Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1985
>>
Cimarron L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
Coolant Level Sensor
Coolant Level Sensor

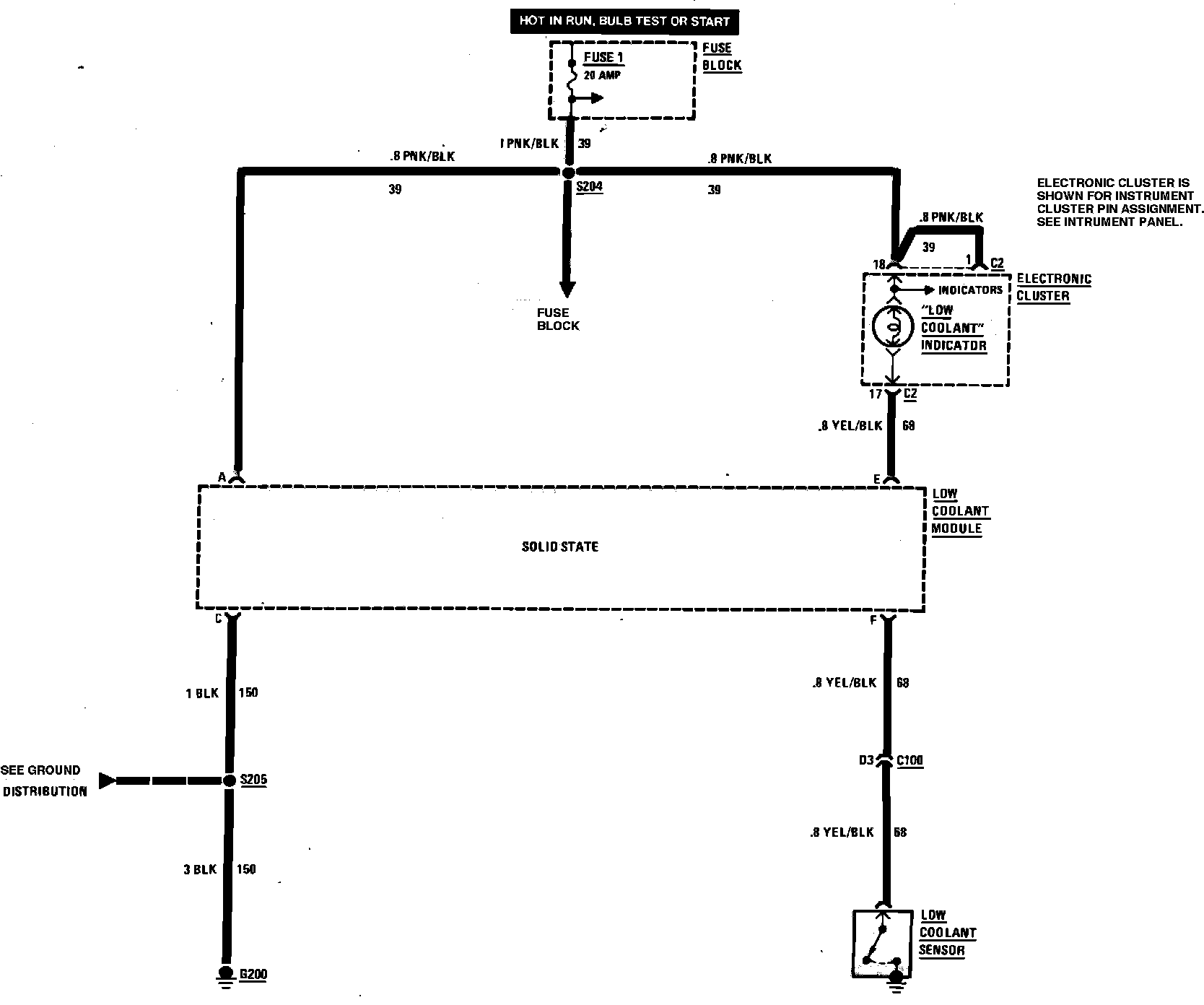

Low Coolant Sensor Wiring Circuit (2 Door):
